China MG Series Vertical Mast Lift Supplier — MG600 / MG750 / MG900, 8–11 m

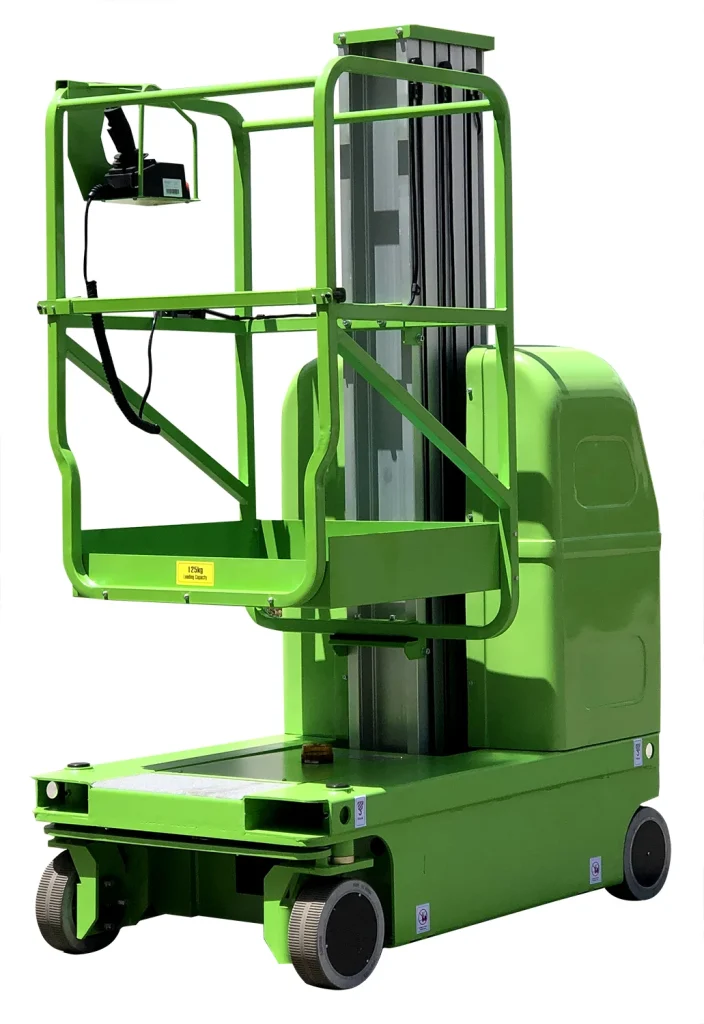

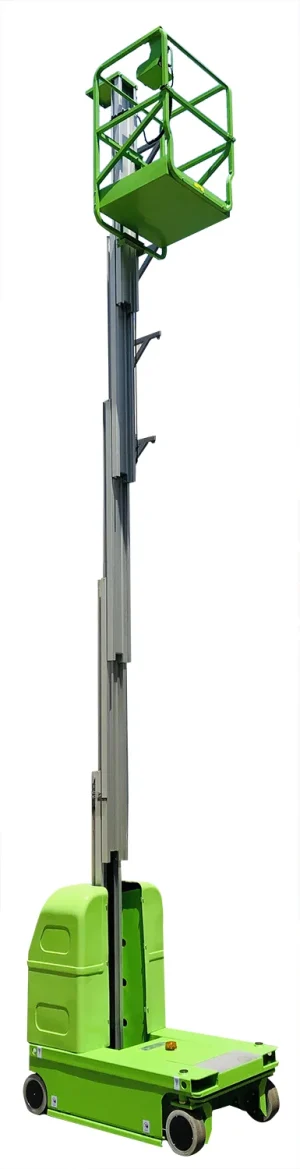

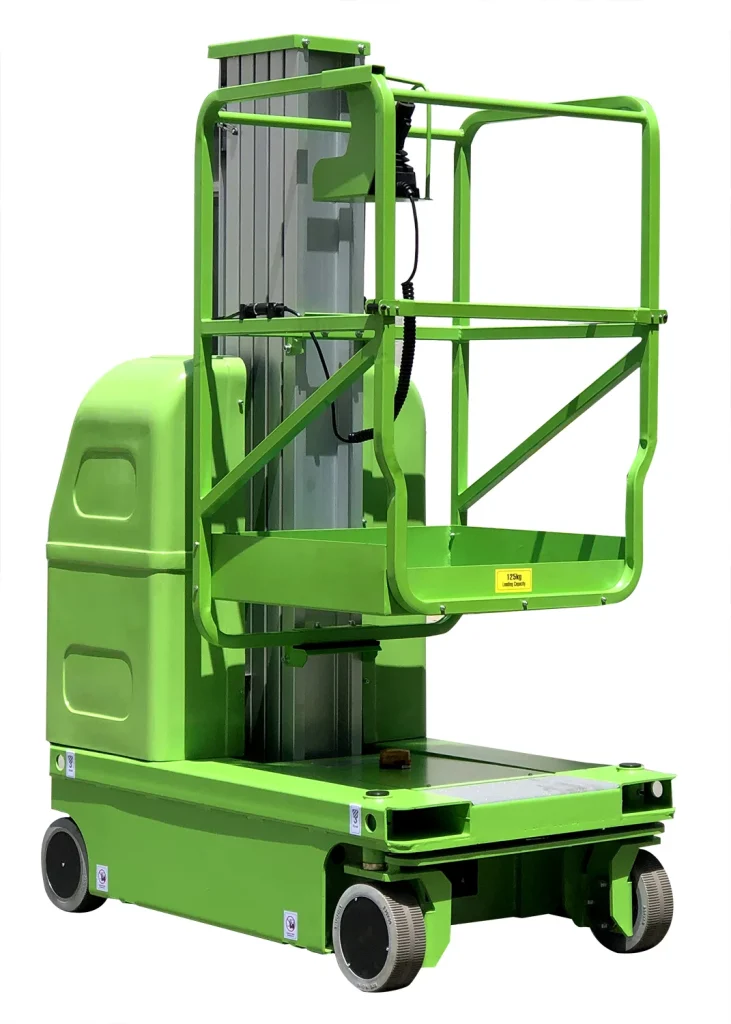

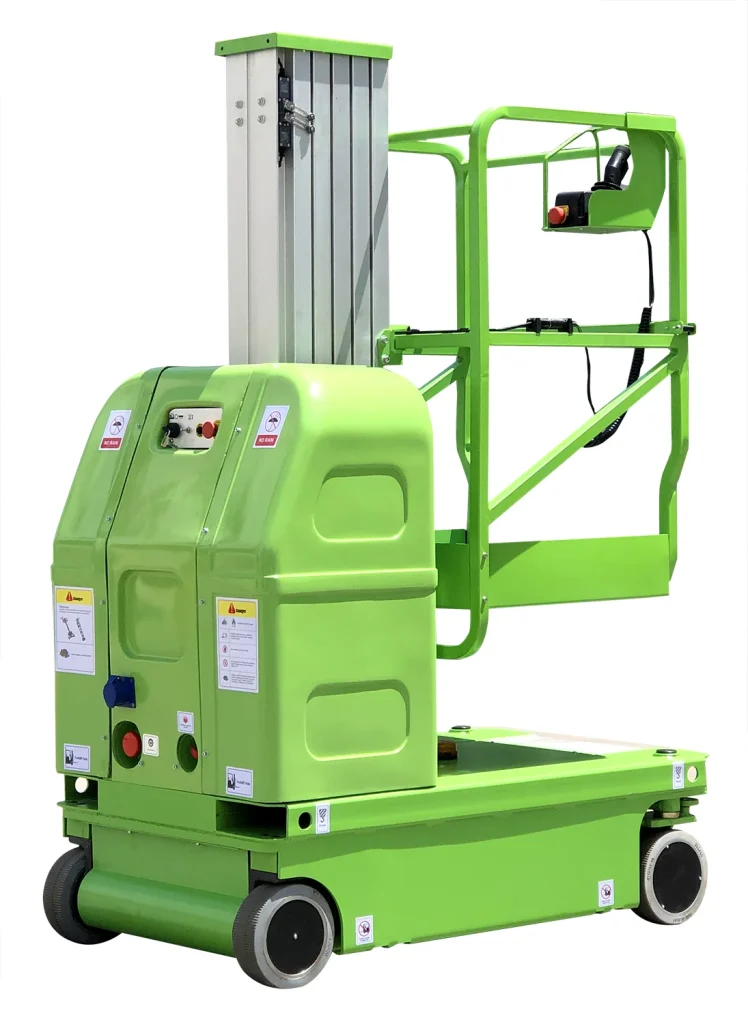

Chenlift is a China MG series vertical mast lift supplier with its own factory in Suzhou. The MG series is a self-propelled vertical mast lift built in four models — MG600-1S, MG750-1S, MG750-2S and MG900-2S — covering 8–11 m working height, 125–200 kg lift capacity and 25% gradeability on a 2×12V/115Ah battery. All four are drivable at full height. MOQ is one unit, lead time 30–45 days, shipped from Shanghai or Ningbo under FOB, CIF or EXW terms.The latest MG configuration also adds a laser-projected operating zone, marking the machine’s working footprint on the floor to improve visibility around the lift in busy indoor environments.

One clarification before the specifications. “MG series” appears in several equipment categories. The MG series supplied by Chenlift is a vertical mast lift for work at height — a mobile elevating work platform, not a wheel loader and not earthmoving equipment. If you are sourcing a wheel loader, that is a different machine class and a different supply chain.

1. What the MG Series Is — and Which Model Fits Your Job

MG series lifts are grouped by mast count and chassis width. The single-mast MG600-1S and MG750-1S use a 0.79 m stowed width for narrow aisles; the double-mast MG750-2S and MG900-2S use a 1.0 m chassis with a larger platform and higher capacity. Full per-model specifications are on the MG Series Vertical Mast Lift page.

1.1 The four models at a glance

Model	Lift capacity	Max. working height	Max. platform height	Stowed L × W × H	Platform size	Machine weight
MG600-1S	125 kg	8 m	6 m	1.36 × 0.79 × 2.08 m	0.78 × 0.70 m	1,102 kg
MG750-1S	125 kg	9.5 m	7.5 m	1.36 × 0.79 × 2.08 m	0.78 × 0.70 m	1,162 kg
MG750-2S	200 kg	9.5 m	7.5 m	1.5 × 1.0 × 2.08 m	1.00 × 0.70 m	1,170 kg
MG900-2S	150 kg	11 m	9 m	1.5 × 1.0 × 2.08 m	1.00 × 0.70 m	1,345 kg

Choosing between them comes down to two questions. If the access route is tight and 7 m of platform height is enough, the MG600-1S is the machine; if you need more height from the same aisle, the MG750-1S adds 1.5 m for the same 125 kg. If two operators or heavier tooling are involved, the double-mast MG750-2S raises capacity to 200 kg on a wider 1.0 m chassis, and the MG900-2S trades 50 kg of capacity for 1.5 m more working height.

1.2 Specifications shared across all four models

Ground clearance is 0.05 m and gradeability 25% on every model. The lift motor is rated 24V/2 kW, powered by a 2×12V/115Ah battery with a 24V/12A charger. Drive wheels and front tyres are Φ305 × 100 mm. Maximum working slope is 1.5° on the 1S models and 3° on the 2S models — the side-slope limit with the platform elevated. That figure decides whether an MG lift suits a ramp or an uneven mezzanine floor.

1.3 Standard and optional configurations

Standard on every machine: proportional control, drivable at full height, fault diagnosis system, automatic brake system, brake release, auxiliary lowering system, anti-dust cover on the mast, emergency stop buttons on platform and ground, and forklift slots.

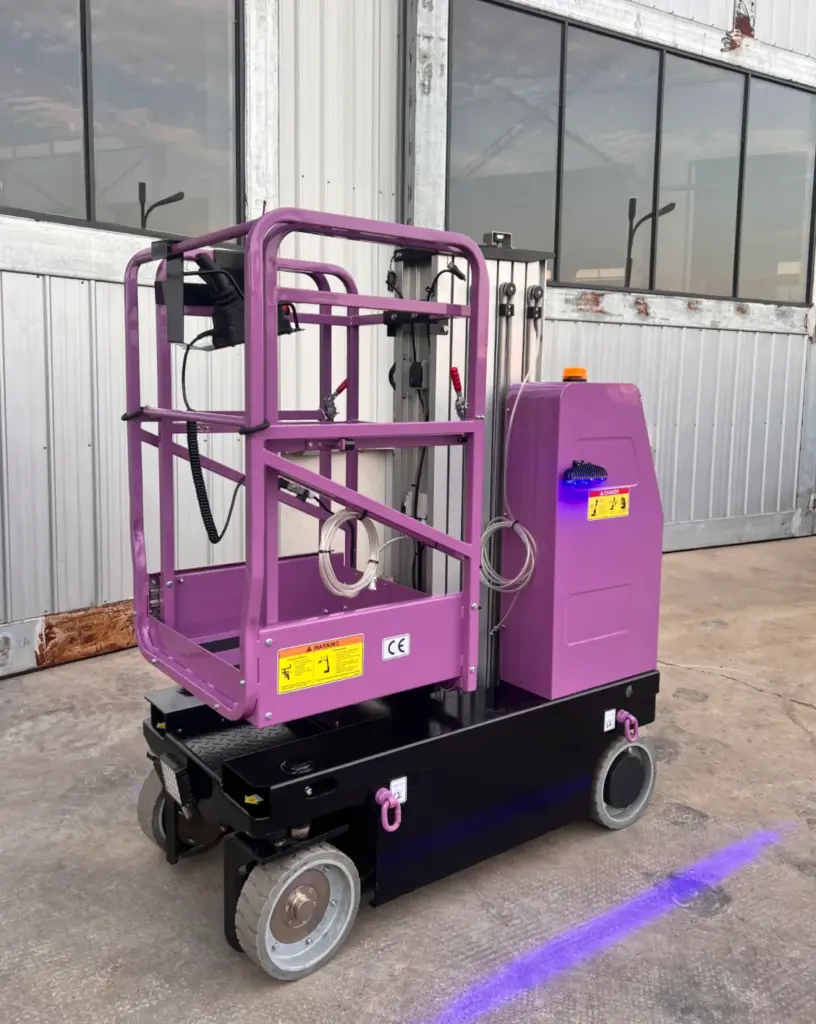

The latest MG configuration can also be equipped with a laser-projected operating zone. The system projects a visible laser perimeter onto the floor around the lift, giving the operator and nearby personnel a clearer indication of the machine’s working footprint. This is particularly useful in busy indoor environments where technicians, contractors and facility personnel may be working around the same equipment.

Optional: AC power to platform, working light, extension platform, positioning laser lights, overloading sensor, and saloon-door entry gates or top open door.

2. Where the MG Series Earns Its Keep

The MG series is an indoor-first machine. A 0.05 m ground clearance and a 1.5°–3° working slope limit mean it is built for finished floors rather than construction rubble. Four attributes decide whether it fits a given job: stowed width, mobility with the platform raised, working height and platform capacity. For busy indoor sites, visibility around the machine is another practical consideration: the latest MG configuration can project a visible laser operating zone onto the floor, making the lift’s working footprint easier for people nearby to recognise.

2.1 Rack, mezzanine and stockroom maintenance

The recurring jobs are picking faces above 4 m, sprinkler heads and light fitting replacement. At 1.36 m long and 0.79 m wide stowed, the MG600-1S is narrower than a counterbalance forklift and turns inside a rack aisle without moving stock. Its 6 m platform height covers most single-depth racking; the MG750-1S reaches 7.5 m for four-tier installations.

2.2 Facility and MEP servicing

Lighting, HVAC units, ductwork, sprinkler lines and busbar in plants and distribution centres. The MG900-2S gives 11 m working height with a 150 kg platform — one technician, a tool bag and a replacement luminaire. Drivable at full height, the operator moves between fittings without lowering.

2.3 Indoor fit-out and finishing work

Partitioning, ceiling grids, glazing, signage and final snag work in offices, hospitals and retail shells. Battery drive means no exhaust inside a sealed building and no diesel refuelling on site.

One distinction decides certain projects: MG series machines use hydraulic lift actuation. If a contract specifies a fully oil-free machine — pharmaceutical, food-grade or cleanroom work — the MD series is the correct specification, not the MG series.

2.4 Retail, transport hubs and public buildings

Airport terminals, rail stations, supermarkets and shopping centres run continuous low-level work rather than single tall lifts. Drivable at full height with proportional control matches that rhythm.

In these shared indoor spaces, the laser-projected operating zone adds another layer of visual awareness. A visible perimeter on the floor helps nearby workers recognise where the lift is operating, which is useful when technicians, contractors and facility personnel are moving through the same workspace. It does not replace site barriers, exclusion zones or normal safety procedures; its value is making the machine’s working footprint immediately visible. It does not replace site barriers, exclusion zones or normal safety procedures.

2.5 Rental fleets and distributor stock

A one-unit MOQ and 30–45 day lead time make the MG series practical to trial before committing to fleet volume. Spare parts ship within 7 days, and all four models share the same battery, charger and wheel specification, cutting the line items a rental yard stocks. For rental fleets serving warehouses, retail facilities and other busy indoor sites, the laser-projected operating zone is also a useful visibility feature when machines are working around other personnel. That commonality runs through the wider vertical mast lift range.

3. What to Check Before Buying an MG Series Lift from China

Sourcing from a China MG series vertical mast lift supplier that owns its factory changes three things: margin structure, documentation route, and how quickly engineering questions get answered.

3.1 Factory-direct pricing, no trading layer

Around 90% of components are produced in-house — CNC laser cutting, robotic welding, an eight-colour powder coating line — because Chenlift owns the plant. Buying from a China MG series vertical mast lift supplier with its own factory removes a margin layer and keeps technical questions with the people who build the machine.

3.2 Export track record since 2013

Chenlift has exported since 2013 to more than 80 markets through distributors, rental companies, contractors and industrial end users. The practical value to a buyer is documentation: export packing, per-model conformity files and English operator manuals come as standard.

3.3 CE documentation — confirmed per model, not by family name

CE documentation is confirmed against the exact model, configuration and EU destination you quote. The pack includes the Declaration of Conformity, CE marking on the identification plate, an operator manual and the Technical File reference. A sample DoC can be issued before you place an order.

Chenlift’s published position is that CE documentation is not assumed from the product family name, so request the certificate reference for the model you intend to buy.

Two points matter for European buyers. Harmonised standards applied to MEWPs include EN 280, with EN ISO 12100, EN ISO 13849 and EN 60204-1 as applicable, and EU Machinery Regulation (EU) 2023/1230 becomes fully applicable on 20 January 2027 in place of Directive 2006/42/EC — so the applicable legal basis depends on the model and delivery date. For current CE status on the MG series, please contact our staff to confirm the certificate reference and DoC for your configuration.

3.4 Regional conformity for your import market

CE is the EU baseline; other markets add their own schemes. Chenlift supports SABER and SASO CoC for Saudi Arabia, ECAS/ESMA for the UAE, NR-12 for Brazil with Portuguese manual and decals, ANSI A92.20 / .22 / .24 with OSHA-aligned configuration and imperial units for the United States, and BIS-related documentation for India. SONCAP for Nigeria, COI for Kenya and consular-authenticated certificates of origin are available on request.

Regional conformity must be specified at quotation stage: it affects the bill of materials and the documentation timeline, and cannot be added later.

3.5 What ships with every machine

Commercial invoice and packing list; Declaration of Conformity for applicable models; operator manual (English; other languages on request); maintenance manual and spare parts list; pre-shipment QC inspection report; wiring and hydraulic schematics; load and stability test certificate.

3.6 OEM and custom manufacturing

OEM and ODM orders run through four steps: quotation within 24 hours, engineering drawings for approval before any material is cut, a pre-production sample with third-party inspection available, then production and shipment. Customisation covers platform dimensions, load capacity, AC or DC power, colour, branding and attachments, and can affect CE documentation — flagged at quotation stage.

3.7 After-sales and spare parts

Warranty is one year on parts, spare parts are dispatched within 7 days, and the sales team responds within 24 hours. Every machine receives 100% in-house pre-shipment inspection documented in a QC report, and third-party inspection by SGS, Bureau Veritas, TÜV or Intertek can be arranged at order placement.

3.8 Shipping, trade terms and container loading

MG series lifts ship from Shanghai or Ningbo under FOB, CIF or EXW terms. For a delivered-duty-paid arrangement, contact our staff to confirm whether DDP is available for your destination.

A common stowed height of 2.08 m across the range keeps packing straightforward, but actual container quantities depend on export packing — confirm the loading plan with our team or your freight forwarder. Sea freight is the standard route, with inland and rail legs coordinated for landlocked destinations. Transport requirements for the 2 × 12V/115Ah batteries must be confirmed with the carrier before booking.

4. Ordering the MG Series: MOQ, Lead Time and Payment

Ordering from a China MG series vertical mast lift supplier keeps the specification conversation with the factory. Send your required working height, load requirement, aisle constraints and destination country, and our team replies within 24 hours with a model recommendation and conformity route.

Standard terms: MOQ 1 unit; lead time 30–45 days from deposit; payment T/T or L/C; warranty 1 year on parts; FOB / CIF / EXW from Shanghai or Ningbo.

Production drawings — and, for custom builds, a pre-production sample — are approved before full production begins, and every unit is tested before shipment with a QC report. MG series CE status, DDP terms and regional conformity are settled at quotation stage, before production.

5. Frequently Asked Questions

Which MG series model suits a narrow aisle?

Width decides it. The single-mast MG600-1S and MG750-1S stow to 0.79 m across and turn inside a standard rack aisle; the double-mast MG750-2S and MG900-2S need 1.0 m and are the better choice where capacity or height matters more than width.

What is the MOQ for the MG series?

One unit. Single machines are supplied for evaluation, trial deployment or fleet testing on the same terms as volume orders.

What is the lead time?

30–45 days from receipt of deposit, covering production. Ocean freight time is additional and depends on destination, so confirm the shipping schedule with our team.

What payment terms do you accept?

T/T and L/C. The applicable terms and currency are confirmed on the proforma invoice issued at order stage.

What warranty do you provide?

One year on parts. Spare parts ship within 7 days of a confirmed requirement, and technical queries are answered within 24 hours.

Can you build MG series lifts to our own specification?

Yes. OEM and ODM orders cover platform dimensions, load capacity, AC or DC power, colour, branding and attachments, running through quotation, engineering drawings, a pre-production sample and then full production.

Which certifications apply to the MG series?

CE documentation is confirmed per model, configuration and destination, and is not assumed from the product family name. Regional schemes are supported for Saudi Arabia (SABER/SASO), the UAE (ECAS/ESMA), Brazil (NR-12) and the United States (ANSI A92.20 / .22 / .24). Please contact our staff to confirm the CE status and certificate reference for the MG model you are quoting.

How can we verify quality before shipment?

Every machine undergoes 100% in-house pre-shipment inspection, documented in a QC report sent with the shipment. Third-party inspection by SGS, Bureau Veritas, TÜV or Intertek can be arranged; request it at order placement.

How are MG series lifts shipped, and what trade terms apply?

Machines ship from Shanghai or Ningbo under FOB, CIF or EXW terms. For DDP or a landlocked routing, contact our staff to confirm feasibility and transit time for your destination.

6. About Chenlift

Chenlift (Suzhou) Machinery Co., Ltd. was founded in 2001 and manufactures aerial work platforms and lifting equipment at a 15,000 m² factory in Suzhou, 25 minutes from Shanghai. The company employs over 100 people and exports to more than 80 countries through distributors, rental fleets and industrial end users. Quality management is certified to ISO 9001:2015. As a China MG series vertical mast lift supplier, Chenlift covers scissor lifts, vertical mast lifts, boom lifts, loading dock equipment and lift tables.

7. MG Series and Related Vertical Mast Lifts

Anchor text	Target page
MG Series Vertical Mast Lift — full specifications	/product-catalog/mg-series-vertical-mast-lift/
ME Series Single Mast Aluminium Aerial Work Platform	/product-catalog/me-series-single-mast-aluminum-awp/
ME Series Double Mast Aluminium Aerial Work Platform	/product-catalog/me-series-double-mast-aluminum-awp/
ME Series Multi Mast Aluminium Aerial Work Platform	/product-catalog/me-series-multi-mast-aluminum-awp/
MT Series Single Mast Mobile Vertical Lift	/product-catalog/mt-series-single-mast-mobile-vertical-lift/
MT Series Double Mast Mobile Vertical Lift	/product-catalog/mt-series-double-mast-mobile-vertical-lift/
MH Series Electro-Hydraulic Vertical Mast Boom Lift	/product-catalog/mh-series-vertical-mast-boom-lift/
CLP90J Self-Propelled Mast Lift with Jib	/product-catalog/clp90j-self-propelled-mast-lift/
SLA Series Material Lift	/product-catalog/sla-series-material-lift/
ML Series Handle Winch Material Lifter	/product-catalog/ml-series-handle-winch-material-lifter/
SP Series Manual Winch Elevating Lift	/product-catalog/sp-series-manual-winch-elevating-lift/
SLK Series Assembly Lift	/product-catalog/slk-series-assembly-lift/

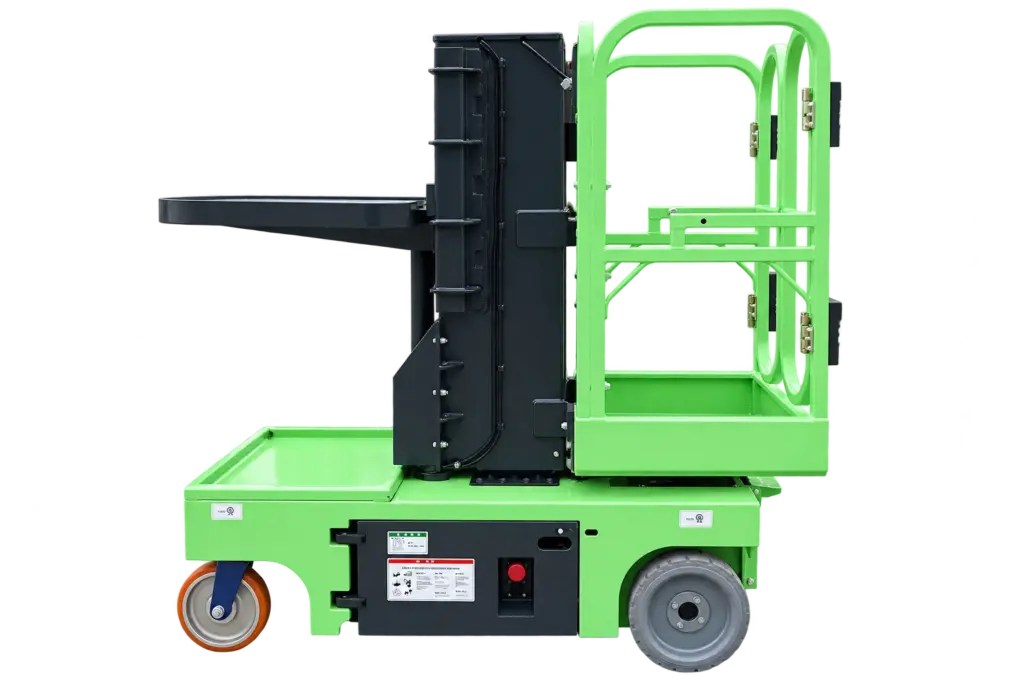

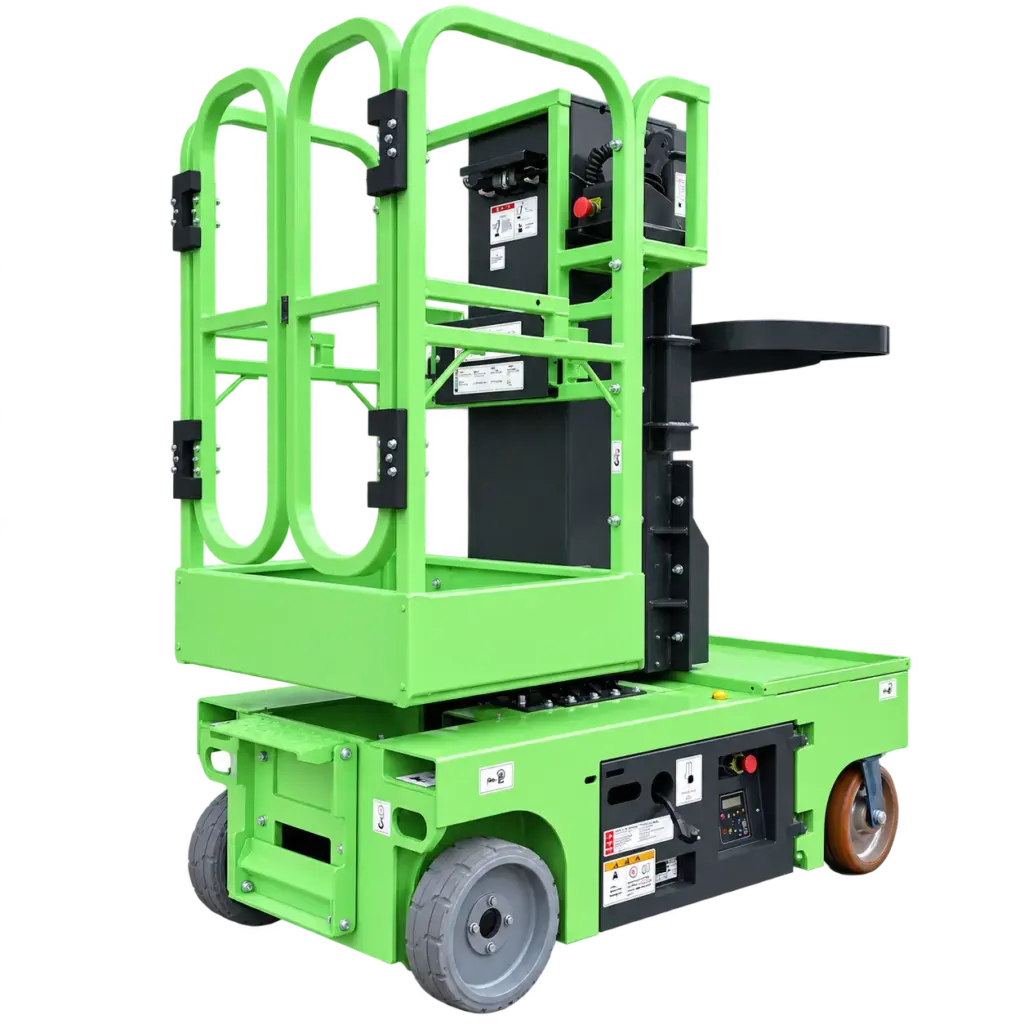

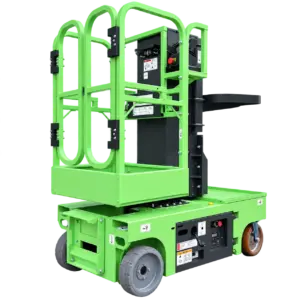

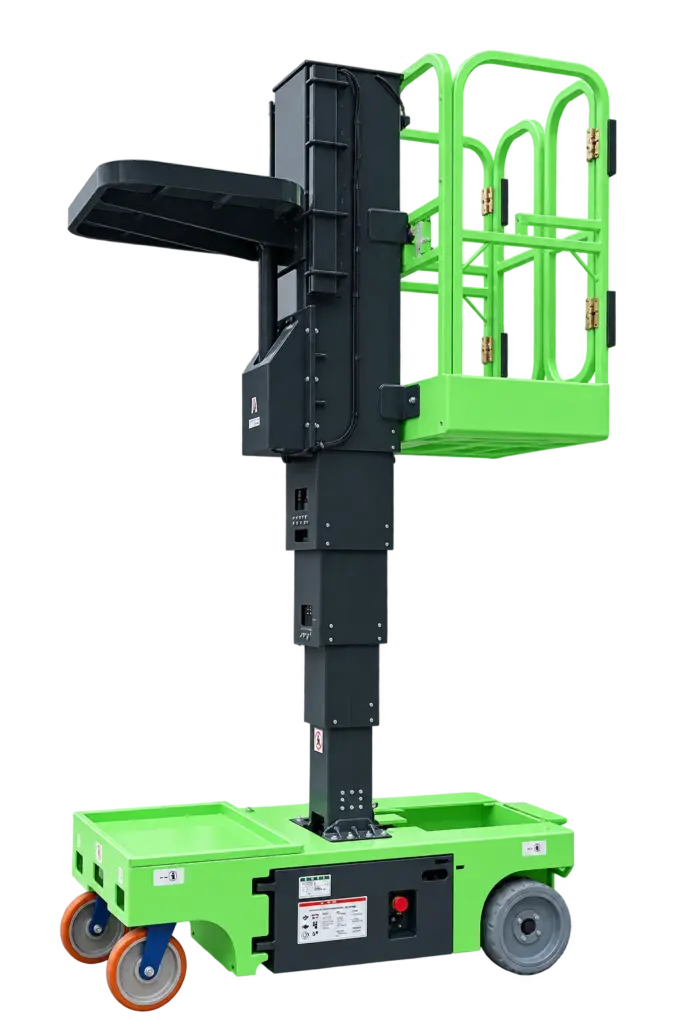

MD Series Oil-Free Full-Electric Vertical Lift	/aerial-work-platform-solutions/oil-free-full-electric-vertical-lift-md-series/
