MD Series / Full-electric access
Full
Electric.
Oil-Free.
Meet the MD Series: self-propelled vertical lifts and an order picker built around full-electric, oil-free indoor access.
MD Series
Full-electric indoor access equipment
The MD development path
One series.
More indoor tasks.
MD started with a simple direction: bring full-electric, oil-free access into indoor work. The range now connects vertical maintenance access with a dedicated order-picking format for warehouse teams.
MD570
The first MD vertical lift established the oil-free electric route for higher indoor maintenance access.
MD390-2
The second-generation vertical lift develops the same principle with CAN BUS, proportional control and a compact 6 m working height.
MD390OP
The MD family extends its oil-free electric architecture into order picking, replenishment and everyday warehouse access.
The work behind the choice
A different
way to lift.
Choosing an indoor access platform begins with the work environment. Consider the available width, required height, platform load and how much attention the site can afford to spend on hydraulic oil.
MD570 and MD390-2 use an electric lifting push rod in place of a hydraulic lifting system. Together with the MD390OP oil-free full-electric order picker, the range gives indoor teams access equipment for facilities where cleanup, floor care and reliable day-to-day operation matter.
No hydraulic oil
Remove the oil-related concern from the lifting system and the work area beneath it.
Electric motion
Electric lifting, electric motor drive and model-specific proportional control support controlled indoor access work.
Compact access
An 800 mm machine width helps teams work around aisles, equipment and everyday factory constraints.
Beyond the hydraulic circuit
Beyond oil-free.
A system architecture.
Removing hydraulic oil is only the visible result. The MD Series shows what happens when a conventional lift arrangement is developed into a full-electric, oil-free lifting architecture for practical indoor access work.
Fewer hydraulic
dependencies
Without a conventional lift-system pump, valve, hose and seal arrangement, the lifting architecture has fewer hydraulic elements to manage around the job.
Simpler maintenance
architecture
A more direct electric lifting path can reduce hydraulic-service dependencies and support clearer routine inspection and maintenance planning.
Efficient working
cycle
Electric actuation and energy recovery are intended to make better use of available battery energy. Actual operating time depends on model, duty cycle and site conditions.
Precise motion
and holding
Electric actuation gives the control system a more direct route to manage lifting motion, position and operating status for the task.
Feedback and
diagnostics
A connected control architecture can support condition monitoring, fault diagnosis and more targeted service decisions.
Integration-ready
foundation
Full-electric actuation provides a stronger foundation for electronic controls, data sharing and application-specific automation integration.
Moving from hydraulic power to electric actuation requires the lifting system to account for starting force, scissor geometry, actuator mounting point, minimum scissor angle, stroke, speed, overload protection, holding, synchronization, emergency lowering, cycle life and control integration. Specific component design, data functions and automation capability depend on the confirmed model configuration.
MD vertical-lift engineering
Three systems.
One direction.
The MD570 and MD390-2 vertical lifts are designed around electric power, with no hydraulic oil in the lifting system. MD390OP applies the same oil-free, full-electric product direction in its order-picker format.
Electric
lifting
An electric lifting push rod replaces the conventional hydraulic lift arrangement.
Electric motor
drive
Self-propelled travel supports practical repositioning through indoor work zones.
Model-specific
control
On the MD390-2 vertical lift, proportional joystick control gives operators a direct, measured way to position the platform.
From electric motion to controlled motion
Hardware does
the lift.
Control keeps
work moving.
Electrification is more than removing a hydraulic circuit. The MD390-2 vertical lift brings electric lifting, travel and steering together with control and diagnostic functions that make daily operation easier to understand.
An intelligent actuator can become part of a wider machine or robot data network, reporting data such as actuator position, force, speed, fault code, controller status, cycle count and service condition.
POSITION / FORCE / SPEED / FAULT CODE / STATUS / CYCLE COUNT / SERVICE CONDITIONThese are system-level data possibilities, not a promise that every value, network mapping or automation function is installed on every MD model. Confirm the controller and model configuration before selection.
Where oil-free access matters
Built for the
spaces around
the work.

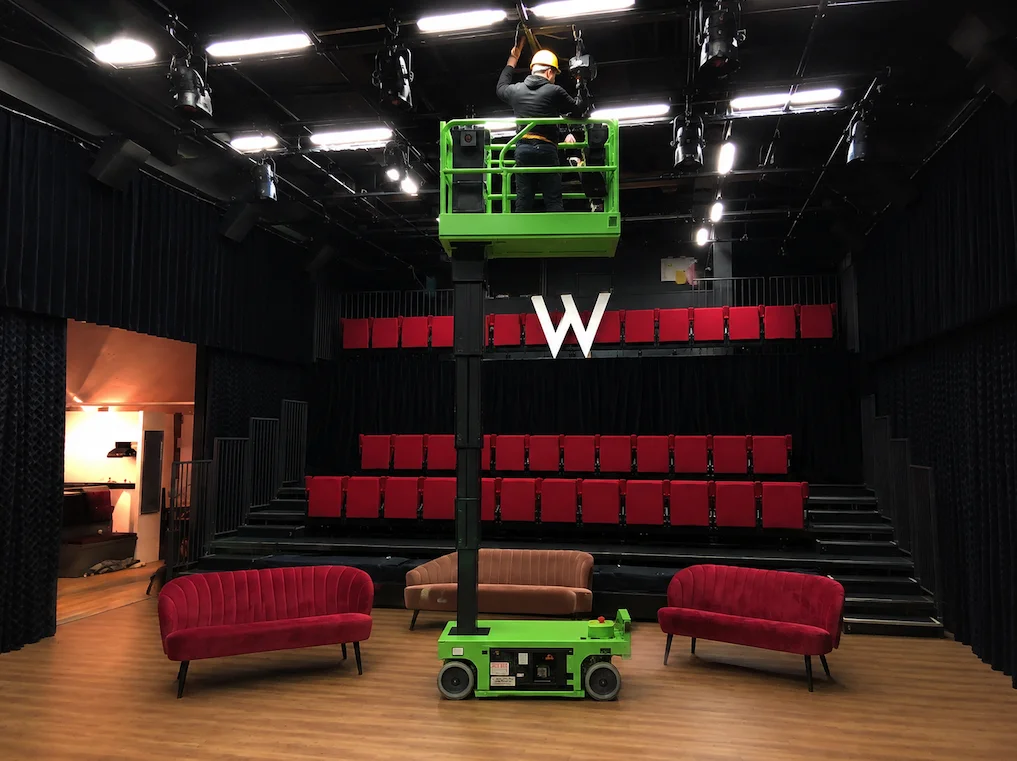

MD Series equipment is suited to indoor environments where the work area, floor and nearby products need careful protection. The vertical lifts and the MD390OP order picker bring full-electric, oil-free access to clean, controlled operations.
From the MD engineering presentation
See the technology
behind the claim.
These six visuals explain the MD vertical-lift engineering route: no hydraulic oil, electric actuation, energy recovery, independent wheel drive and connected control. The MD390OP order picker is introduced separately below.
No hydraulic oil
Electric lifting removes the hydraulic-oil concern from the lift system and the floor beneath the work.

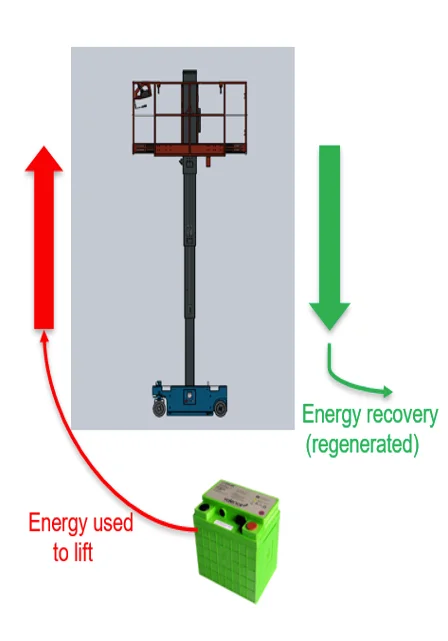

Recovery on descent
The presentation shows energy recovery while the platform descends, supporting longer operating time between charges.
Independent drive
Independent wheel control and sensors support manoeuvrability and help reduce unnecessary tyre wear.
CAN BUS + diagnosis
Built-in controller monitoring, CAN BUS SAE J1939 communication and command/feedback support connected machine control.
Online and offline diagnosis, command and feedback through CAN BUS or I/O, and a control architecture designed for precise movement.

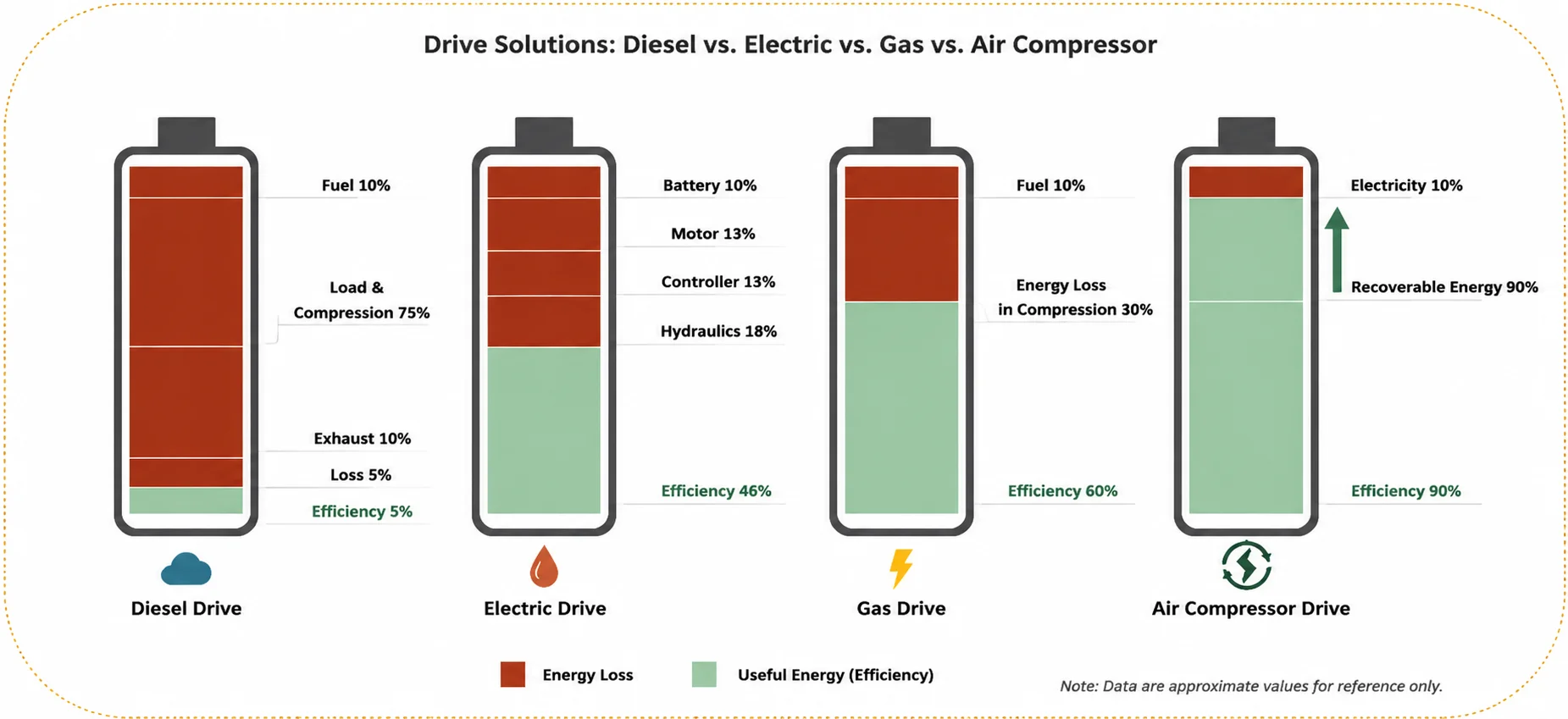

Energy for the work
Electrification is intended to reduce unnecessary energy demand. Actual performance depends on model, duty cycle and site conditions.
Electric energy recovery during descent helps make more of the available battery energy on a working cycle.

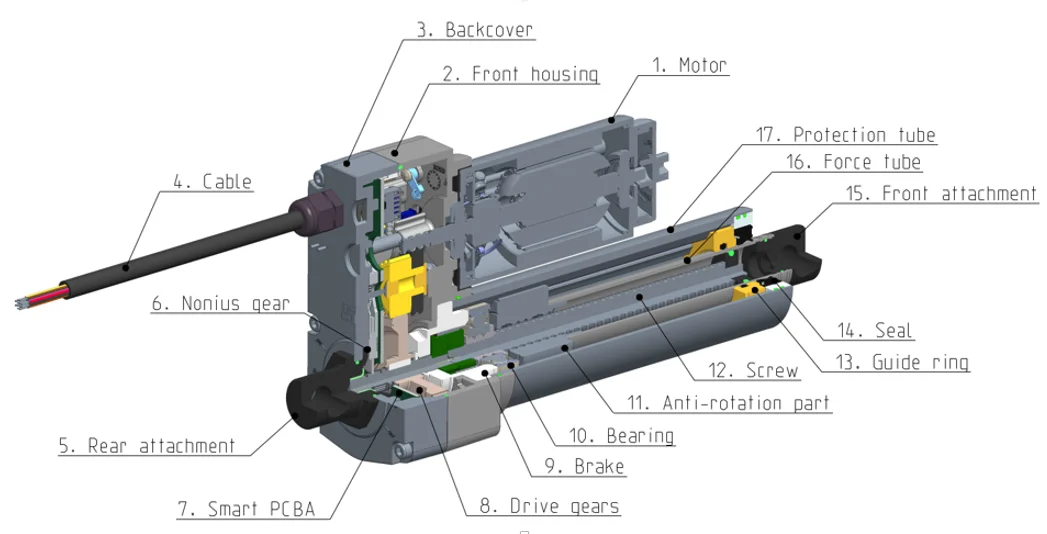

Actuator architecture
The presentation identifies a high-grade electric-cylinder approach for lift and steering. It gives the MD Series a clear electric path from the control command to the lifting and steering movement.
The black actuator reference highlights an integrated controller, absolute position feedback, controlled manual release and a sealed, corrosion-resistant housing. These are reference design directions, not a model-specific promise.
Final component naming, actuator sizing and configuration should follow the approved model BOM. Contact our technical specialists for the detailed selection.
Engineering visuals are reproduced from the MD presentation supplied for this page. Final model configuration, component designation and performance depend on the confirmed quotation and applicable market requirements.
MD vertical-lift configuration
The details
operators feel.

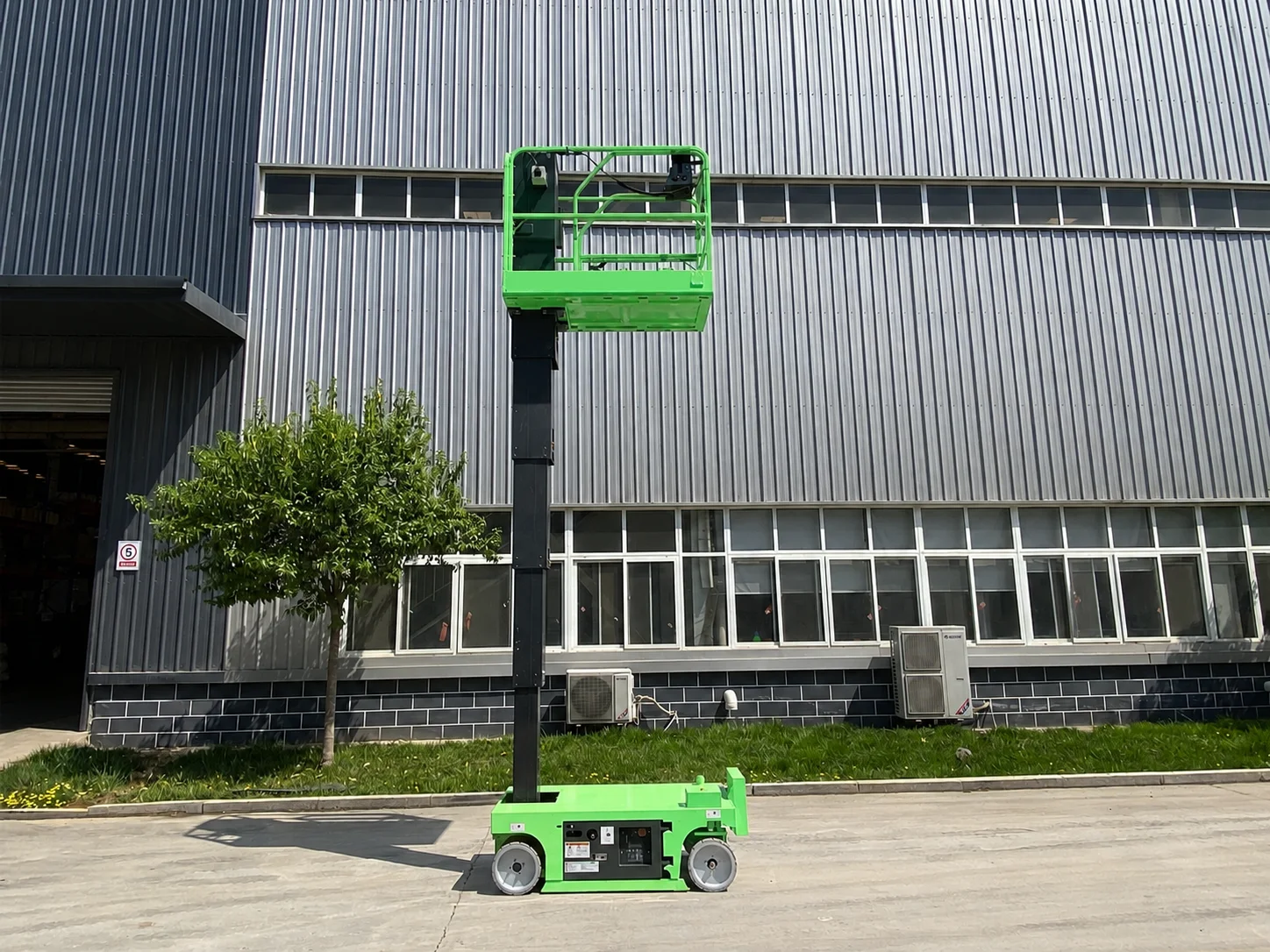

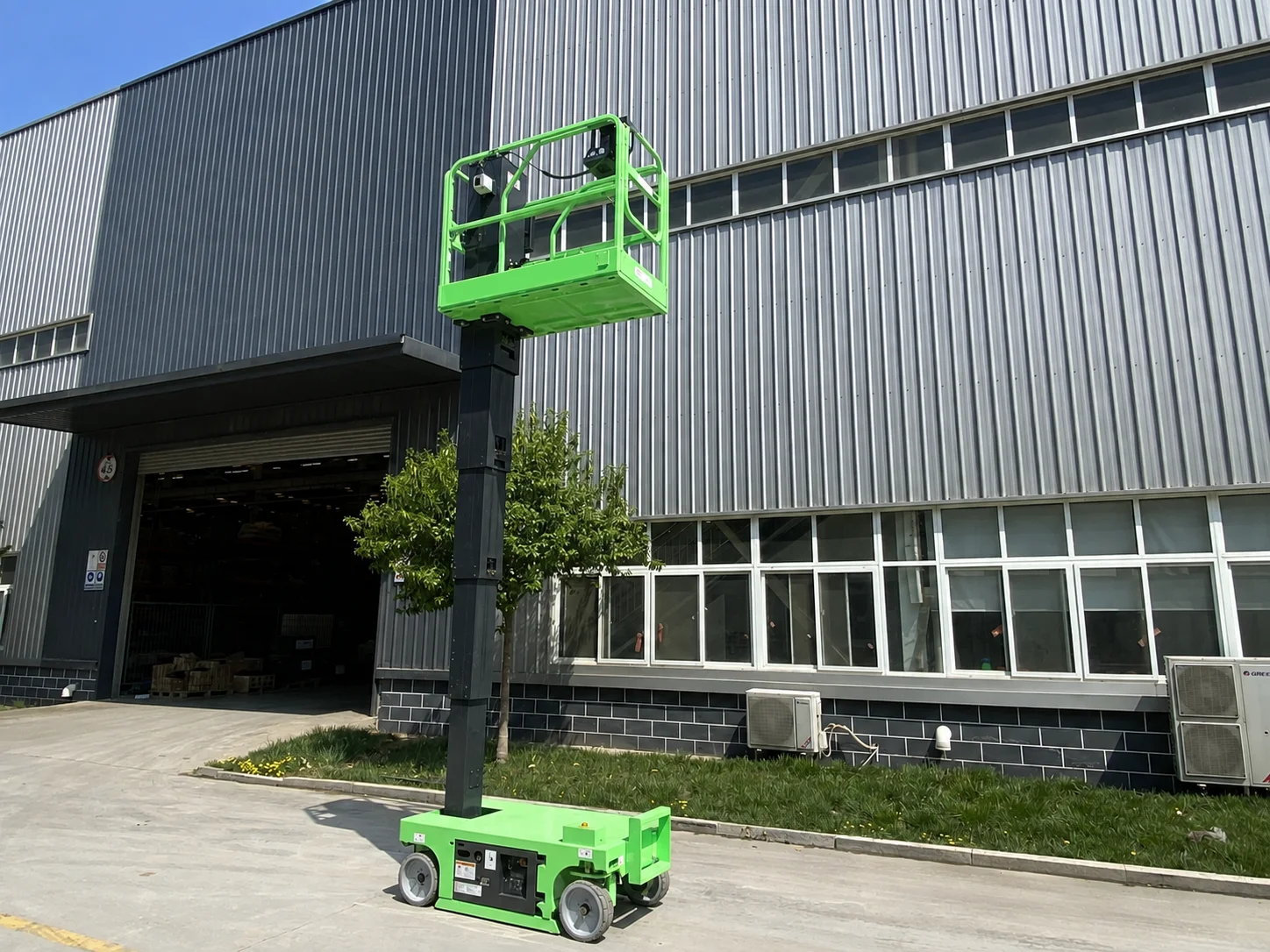

Pre-delivery verification
Tested before
it leaves.
Before dispatch, the configured equipment is checked against the applicable mechanical, climate and electrical test plan. The final scope follows the exact model, component selection and market requirement.
Load and
life checks
- Static load and vibration
- Impact-load checks where applicable
- Lifecycle and repeated-operation testing
Environment
checks
- Temperature and humidity cycles
- Salt-spray and corrosion checks where applicable
- Water, dust and chemical-resistance review
Power and
EMC checks
- Low- and high-voltage operation
- ESD protection
- EMC and electrical-function checks
The test categories above summarize the supplied industry solution material. They describe a verification framework, not a blanket certification statement. Test records and acceptance criteria are confirmed by the responsible technical team for the actual machine.
Less hydraulic routine
A cleaner
maintenance path.
The MD vertical-lift materials make one practical point repeatedly: an indoor machine should not create an unnecessary oil-management job around itself.
No lift-system
oil changes
The electric lifting push rod removes hydraulic oil from the lifting system, so there is no corresponding lift-system oil change to plan around.
No hydraulic lift
hoses
With no conventional hydraulic lifting circuit, teams avoid the lift-system hose and leak concerns associated with that arrangement.
Less cleanup
around the job
For indoor operations that care about floors, products or adjacent equipment, an oil-free lifting system makes the operating choice easier to explain.
MD family / Order picking
Pick.
Replenish.
Keep moving.

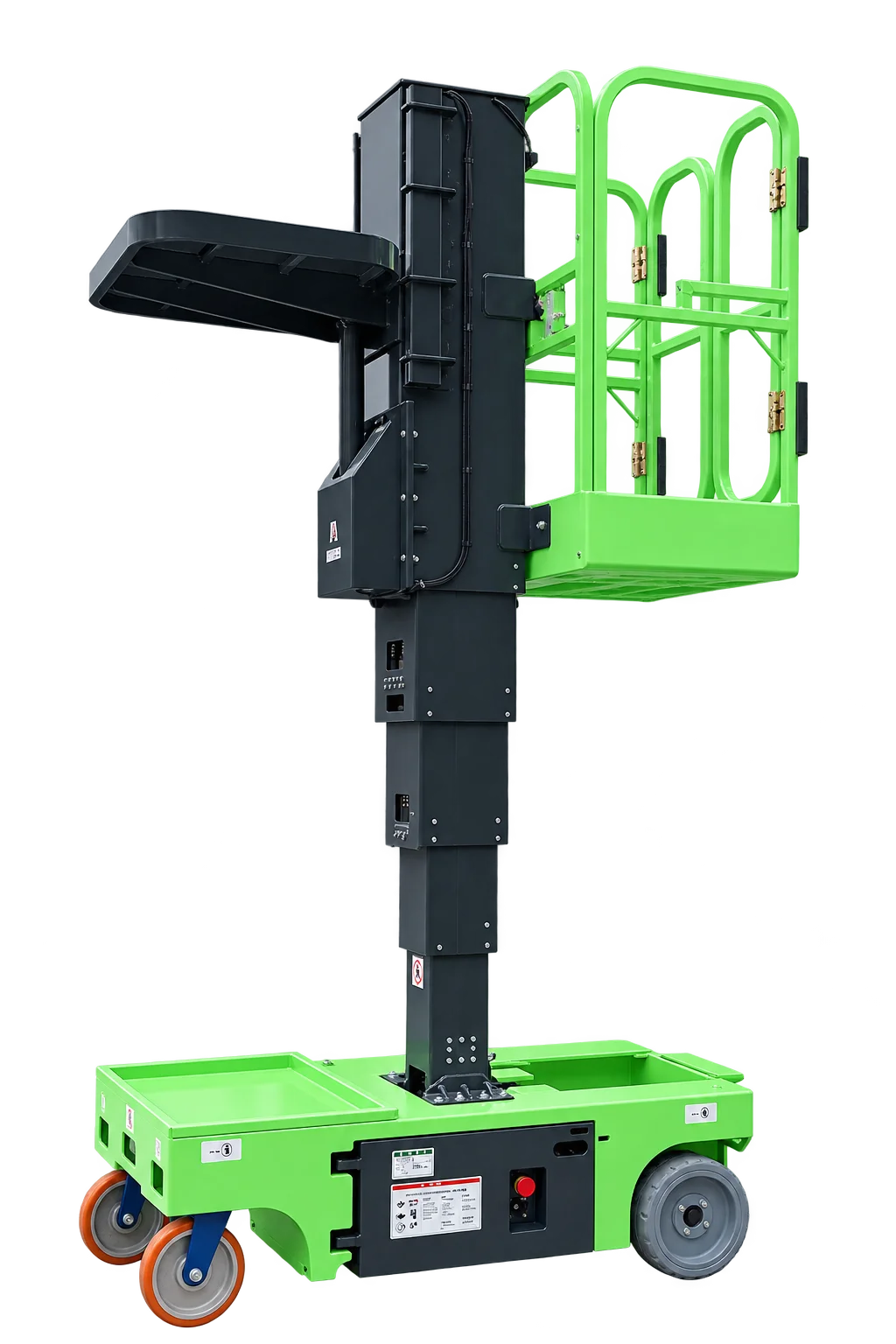

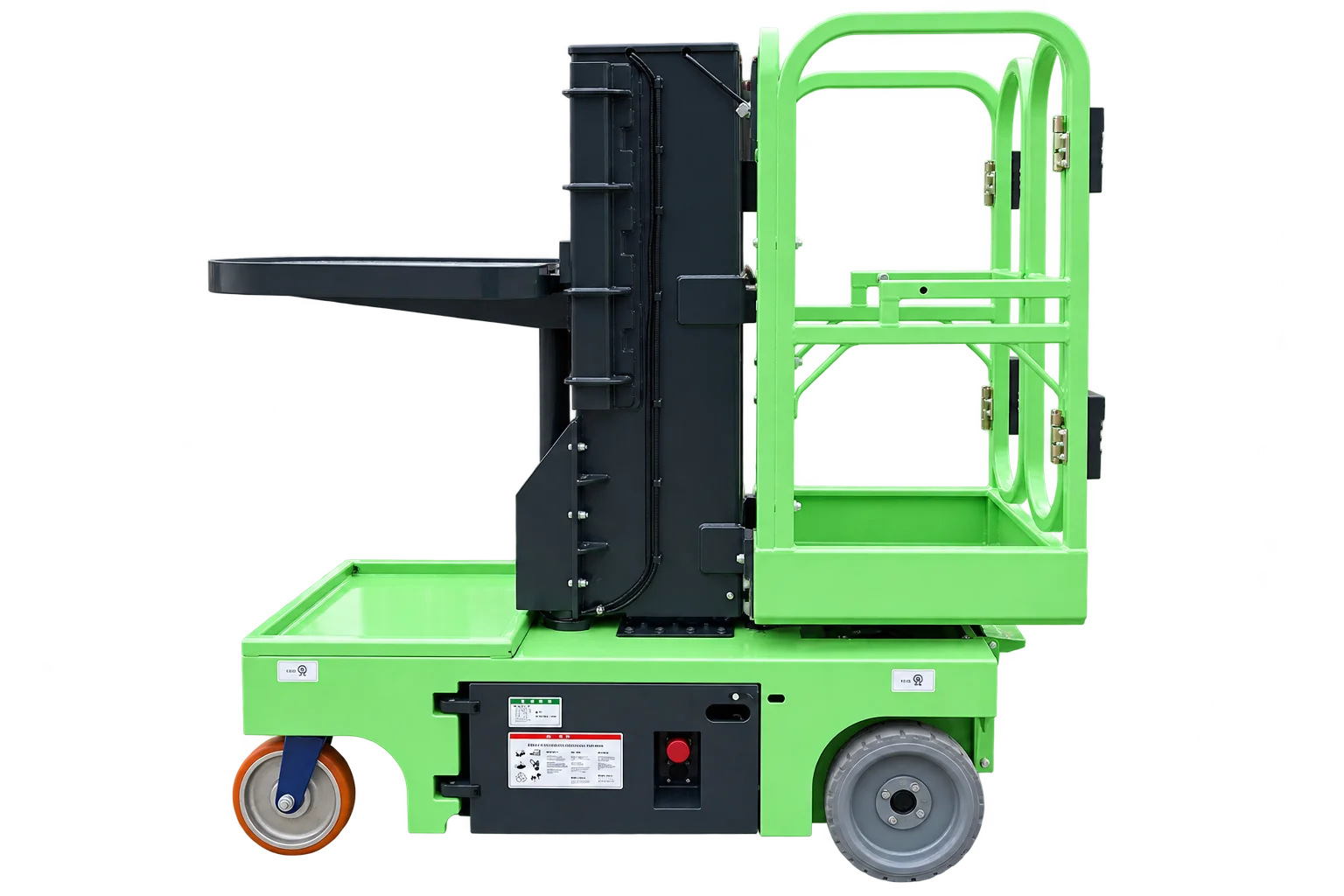

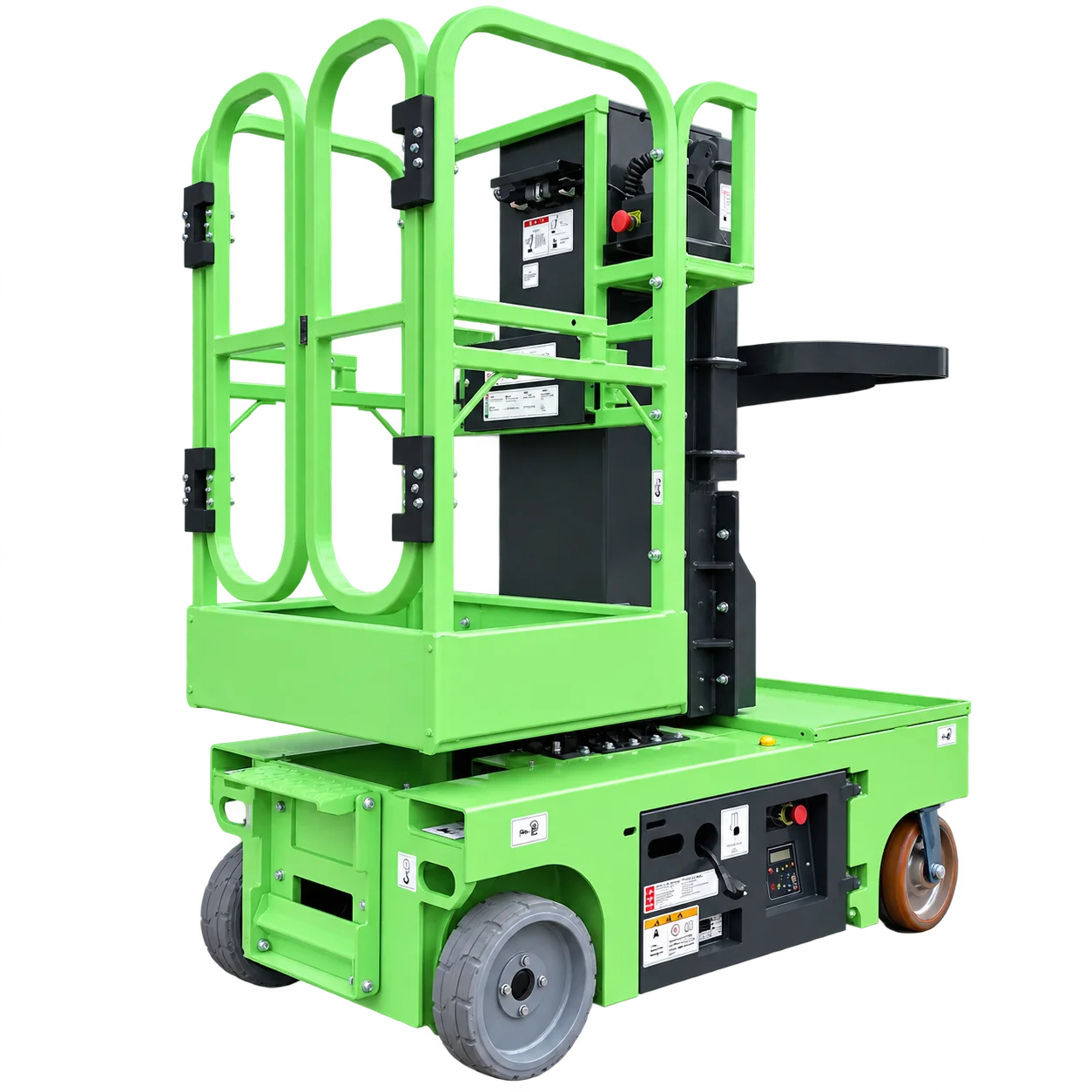

MD390OP brings the MD Series full-electric, oil-free direction into warehouse picking and replenishment. It is designed for operators who need a compact machine for people, goods and daily aisle work.
- 01People and goods
A dedicated order-picker format supports one-person picking work with a separate load tray. - 02Compact warehouse movement
0 m inner turning radius and 0.8 m overall width support work around storage, racks and equipment. - 03Same MD direction
Full-electric operation keeps the product family focused on clean, practical indoor access.
MD390OP / Working specification
Equipment around the work
Ready for the
tasks beside it.
Standard and optional equipment should follow the work environment. Final configuration is confirmed by model, applicable standards and the operating requirement.
Safety and
access
MD570 and MD390-2 product specifications list self-locking gates, automatic braking, emergency descent, tilt and motion alarms, and pothole protection.
Full-height
travel
MD570 and MD390-2 product pages list drivable operation at full height for repositioning during access work.
Work at the
platform
AC power to platform, working light and platform extension are available configurations by vertical-lift model. MD390OP uses its dedicated people-and-goods layout.
Handling and
fleet readiness
MD390-2 specifications list non-marking tires, overload sensing and forklift slots for indoor handling. Positioning lights and wireless tracking remain model-specific options.
The models in focus
Select the reach.
Keep the direction.
MD570 and MD390-2 show the vertical-lift development path. MD390OP extends the same full-electric, oil-free MD direction into warehouse order picking.
MD570
The first-generation MD vertical lift for higher-reaching full-electric, oil-free indoor access.
MD390-2
Second-generation compact vertical access with CAN BUS and proportional joystick control.
MD390OP
Full-electric, oil-free order picking for indoor warehouse movement and replenishment.
Technical reference for your evaluation
The details to
confirm before approval.
Vertical-lift
dimensional reference
This drawing is for the MD570 and MD390-2 vertical-lift layout discussion. MD390OP uses the dedicated order-picker specification above. Final dimensions and configuration should be confirmed against the relevant model quotation and data sheet.
What to verify
before approval
Before approving an MD Series machine, confirm the final model, configuration, test scope and application fit against the quotation and technical documents.
Final model and configuration02
Factory assembly and inspection03
Functional test and safety checks04
Application fit for the worksite
Questions before specification
Start with the work.
Tell us the working height, aisle width, load and daily duty cycle. We will help match the product to the job.
What makes the MD vertical lifts oil-free?
MD570 and MD390-2 use an electric lifting push rod, so their lifting systems use no hydraulic oil. MD390OP is the dedicated full-electric, oil-free order-picker format in the same product family.
Where is MD best suited?
MD is designed for indoor access work, including warehouse and logistics areas, factories, food production, pharma and other workplaces that prefer an oil-free lifting solution.
How do the three MD models differ in working height?
MD570 reaches 7.7 m, MD390-2 offers 6 m and MD390OP offers 5.85 m working height in its dedicated order-picker format.
What is MD390OP used for?
MD390OP is an MD Series full-electric, oil-free order picker for indoor warehouse picking, replenishment and aisle work. It carries one operator and provides separate load-tray capacity for goods handling.
Can the MD vertical lifts travel at full height?
MD570 and MD390-2 product specifications list drivable operation at full height for repositioning during access work. Always follow the relevant model manual, rated limits and site operating procedures.
What information is needed to select an MD model?
Share the required working height, aisle width, platform or goods load, duty cycle, floor conditions and destination-market requirements. Chenlift can then help match the configuration to the application.
