MG Series Self-Propelled Vertical Lift Hydraulic Turning Wheel — MG600-1S
The MG600-1S is a single-person self-propelled vertical mast lift with 8 m working height and 125 kg lift capacity. Hydraulic turning wheel and drivable at full height for efficient repositioning in warehouse, industrial, and outdoor maintenance environments.
Description
Product Description

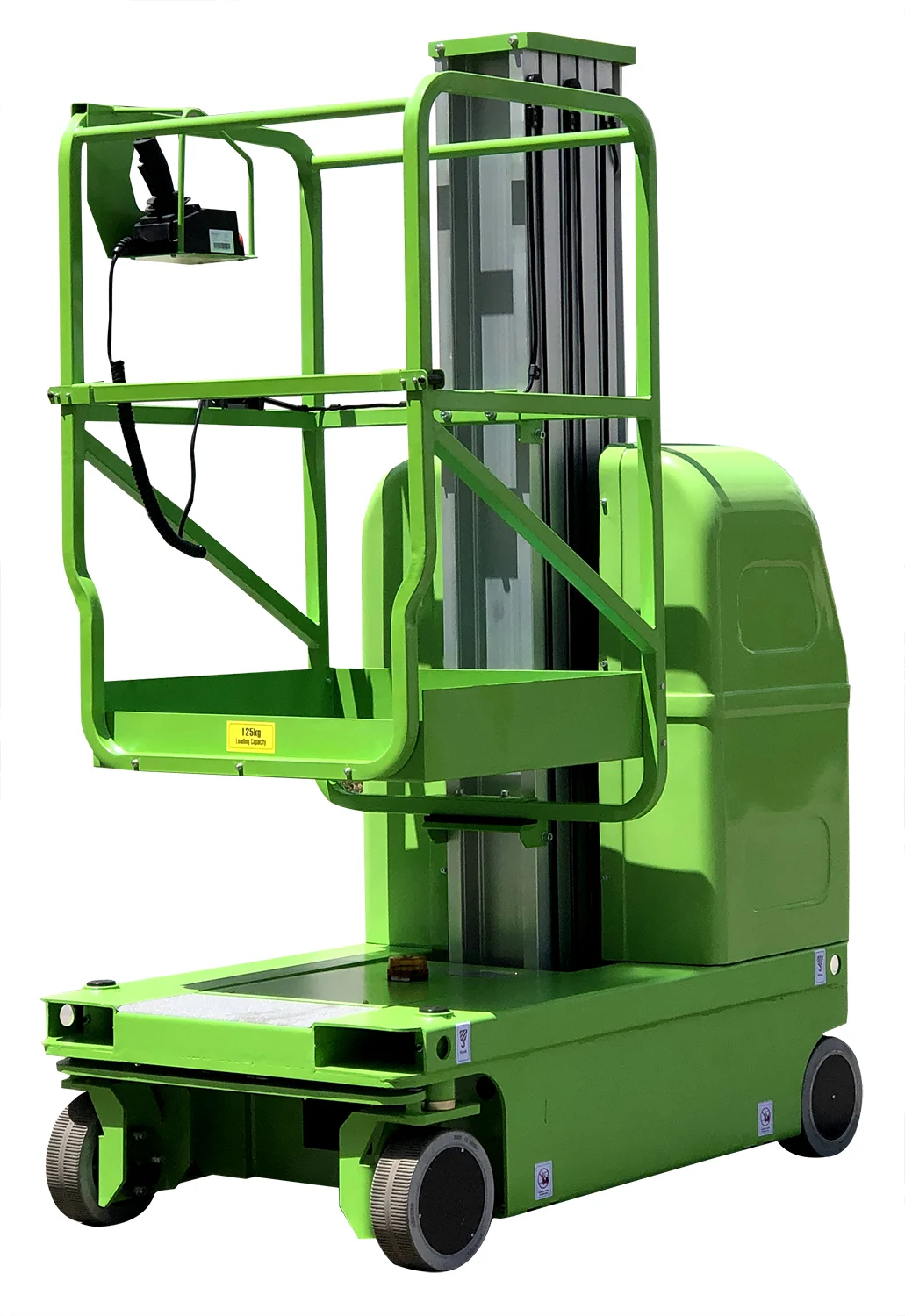

MG Series Self-Propelled Vertical Lift Hydraulic Turning Wheel — MG600-1S
Overview The Chenlift MG600-1S is a single-person self-propelled vertical mast lift featuring a hydraulic turning wheel system and 8 m working height. Drivable at full height with automatic braking and auxiliary lowering, it is suited for warehouse logistics, industrial maintenance, and outdoor operations up to a 1.5° working slope.
Key Specifications
| Specification | MG600-1S |
|---|---|
| Lift capacity | 125kg |
| Working height max ❶ | 8m |
| Platform height max ❷ | 6m |
| Stowed length ❸ | 1.36m |
| Stowed width ❹ | 0.79m |
| Stowed height ❺ | 2.08m |
| Platform size | 0.78×0.70m |
| Ground clearance | 0.05m |
| Wheelbase | 1.15m |
| Gradeability | 25% |
| Maximum Working Slope | 1.5° |
| Driving Wheel | Φ305×100m |
| Front tire | Φ305×100m |
| Driving motor | 2×24V/0.4kw |
| Lifting motor | 24V/2kw |
| Power source | 2×12V/115Ah |
| Charger | 24V/12A |
| Weight | 1102kg |
Standard Configurations
- Proportional Control
- Drivable at Full Height
- Fault Diagnose System
- Automatic Brake System
- Brake Release
- Auxiliary Lowering System
- Anti-Dust Cover on Mast
- Emergency Stop Button both on Platform and Ground
- Forklift Slots
Optional Configurations
- AC Power to Platform
- Platform Working Light
- Extension Platform
- Platform Positioning Laser Lights
- Overloading Sensor
- Saloon-door style entry gates / Top Open Door
Applicable Scenarios Warehouse & Logistics · Industrial Maintenance · Construction Sites · Facility Management · Airport & Station · Outdoor Operations
