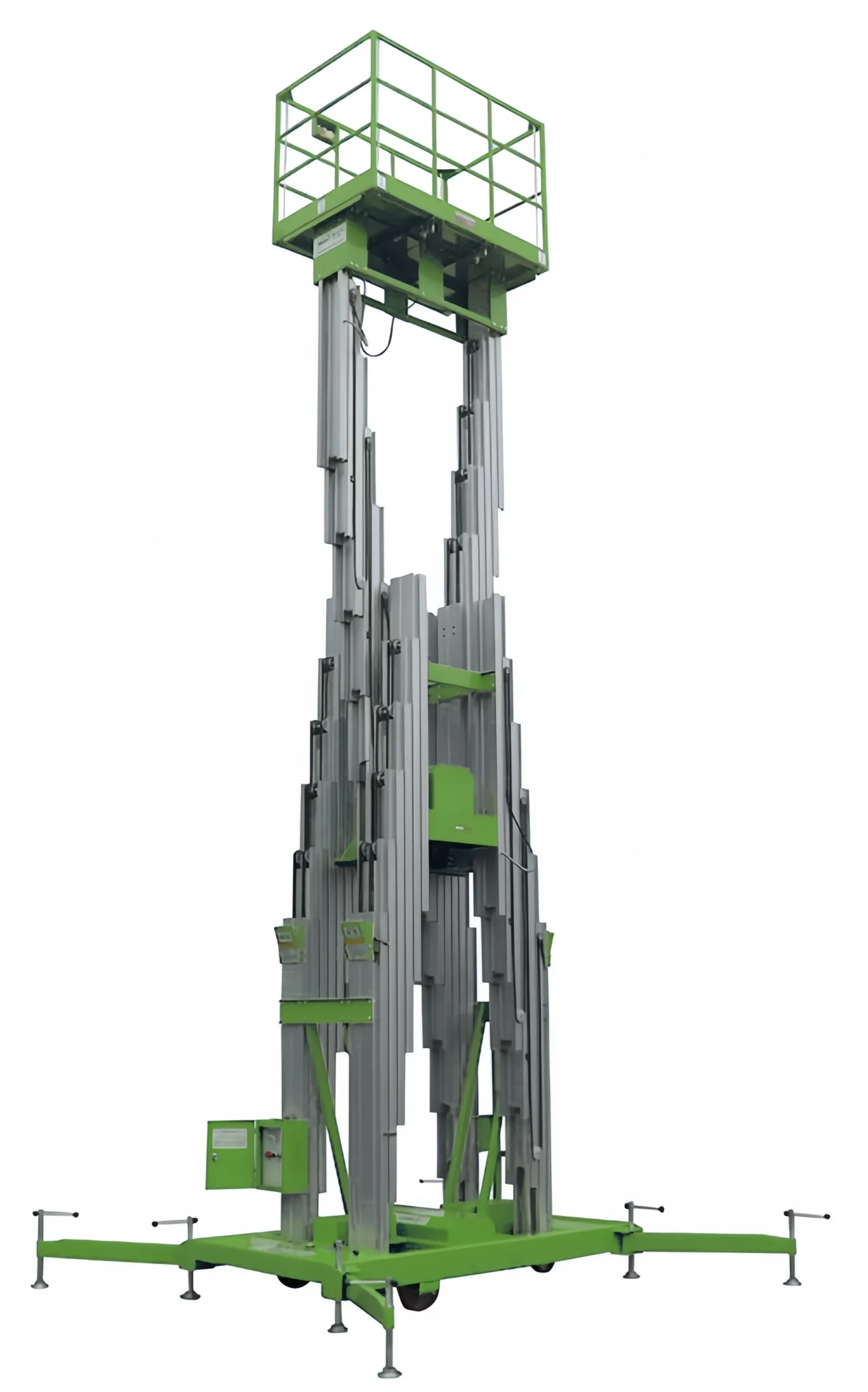

ME Series Multi Mast Aluminum Aerial Work Platform — ME1600-6
The ME1600-6 delivers 18 m working height with 150 kg platform capacity on a 1.45×0.9 m platform. Six mast aluminum construction, 1.5kw AC lifting motor, 3.2×3.0 m outrigger footprint, and AC power (optional DC 24V) — the entry-level model in the ME six mast range for ultra-high-reach indoor applications.
Description
Product Description
ME Series Multi Mast Aluminum Aerial Work Platform — ME1600-6
Overview
The Chenlift ME1600-6 is a six mast aluminum aerial work platform delivering 18 m working height with 150 kg platform capacity on a 1.45×0.9 m platform. Six mast construction provides the maximum structural rigidity and stability in the ME Series range. Powered by AC supply (380V/220V/110V) with a 1.5kw lifting motor, with optional DC 24V (2.2kw DC motor, 24V/120Ah battery, 24V/12A charger). The large 3.2×3.0 m outrigger footprint ensures maximum stability at ultra-high working height. At 1680 kg machine weight (AC) with 2.28 m stowed length, 1.35 m stowed width, and 2.32 m stowed height, the ME1600-6 is the entry point into the ME six mast range for demanding ultra-high-reach indoor access.
ME1600-6 Key Specifications
| Specification | ME1600-6 |
|---|---|
| Lift Capacity | 150kg |
| Working Height Max | 18m |
| Platform Height Max | 16m |
| Stowed Length | 2.28m |
| Stowed Width | 1.35m |
| Stowed Height | 2.32m |
| Platform Size (L×W) | 1.45×0.9m |
| Outrigger Footprint | 3.2×3.0m |
| Ground Clearance | 0.15m |
| Lifting Motor (AC) | 1.5kw |
| Machine Weight (AC) | 1680kg |
| DC Power Source | 24V/120Ah |
| DC Lifting Motor | 2.2kw |
| Charger | 24V/12A |
Standard Configurations
- AC Power Supply
- Auxiliary Lowering Device
- Emergency Stop Button both on Platform and Ground
- Safety Belt Lock
- Forklift Slot
- Anti-Dust Cover on Mast
Optional Configurations
- DC 24V or DC 48V or Manual Power
- DC Power with Voltage Meter, Battery Indicator and Hour Meter
- Hydraulic Power Pack
- Flame Explosion-Proof System
- Motorized Device with Horn
- Isolation Platform
- Anti-Collision Sensor
- Over Loading Sensor
- AC Power to Platform
- Air Tube to Platform
- Platform Working Light
- Outrigger Sensor
- Platform Positioning Laser Lights
- Manual Pump Power
- Horn on Platform
- Towing Type
- Tilting Function
Applicable Scenarios
Indoor Maintenance · Facility Management · Construction Sites · Infrastructure Projects · Warehouse & Logistics · Airport & Station
