MT Series Single Mast Mobile Vertical Lift — MT600-1
The MT600-1 reaches 8.2 m working height with 150 kg platform capacity on a 0.67×0.66 m platform. AC/DC dual power (380V/220V/110V), detachable outriggers with 1.70×1.70 m coverage, and tilting back frame for easy transport — suited for indoor maintenance and facility management requiring moderate working height.
Description
Product Description
MT Series Single Mast Mobile Vertical Lift — MT600-1
Overview

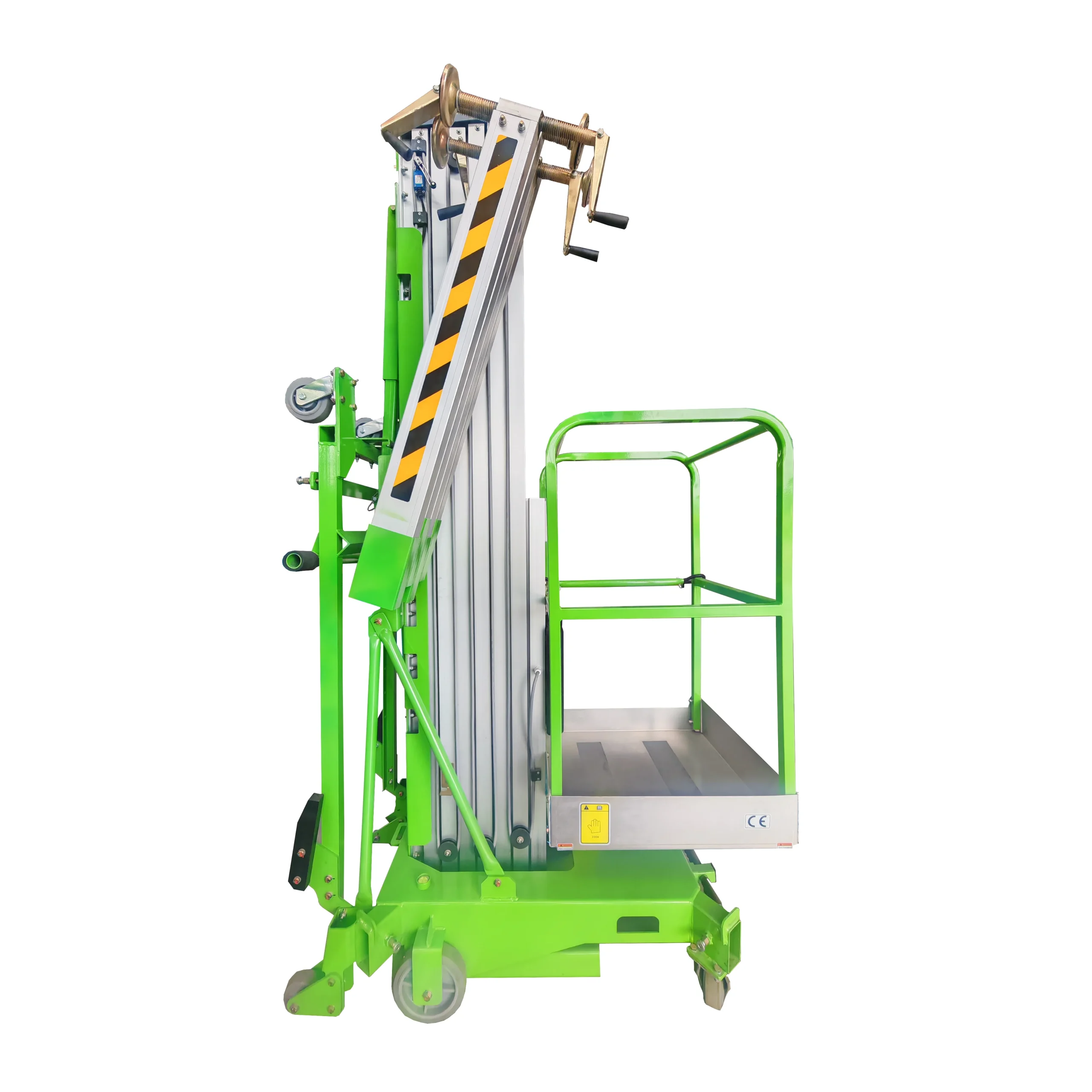

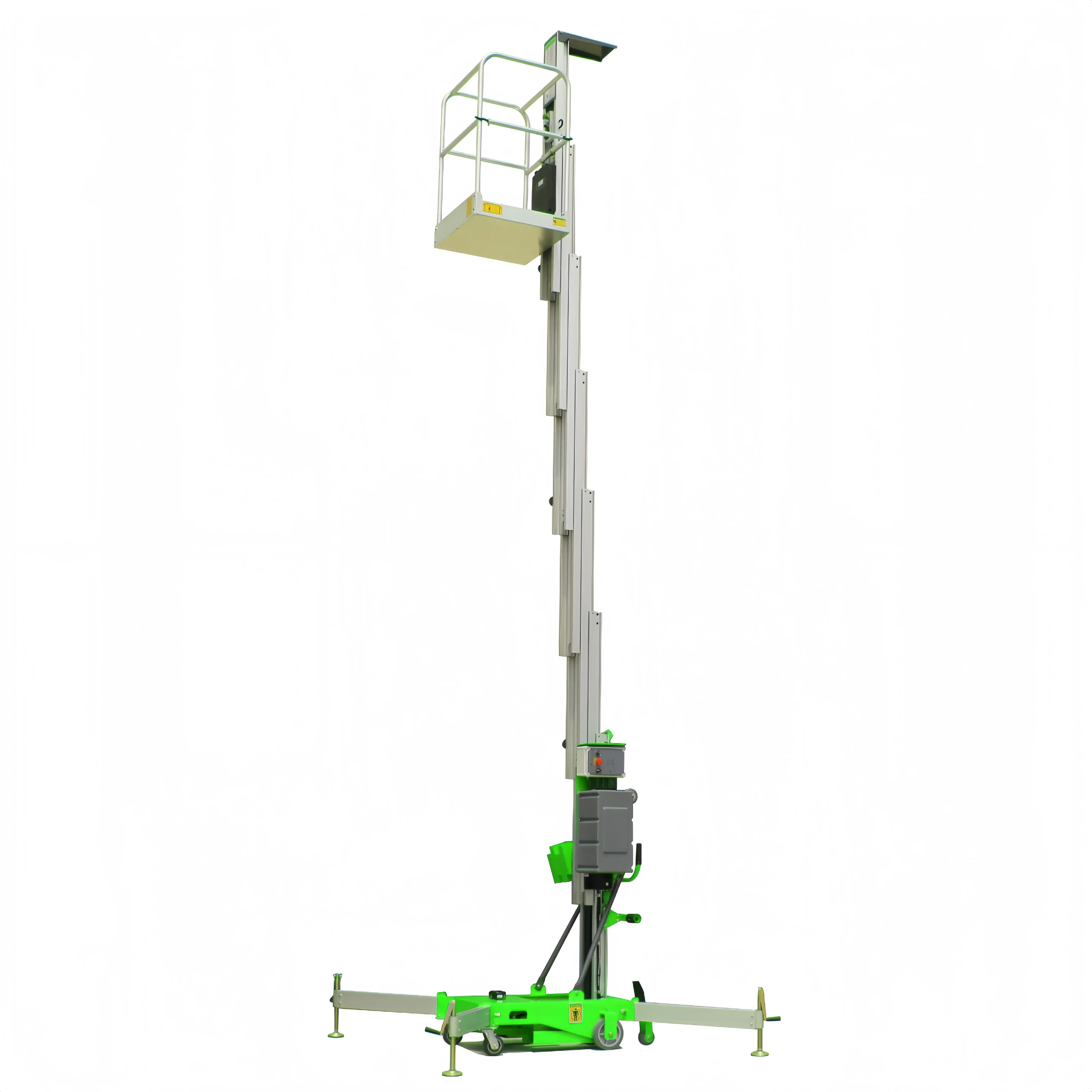

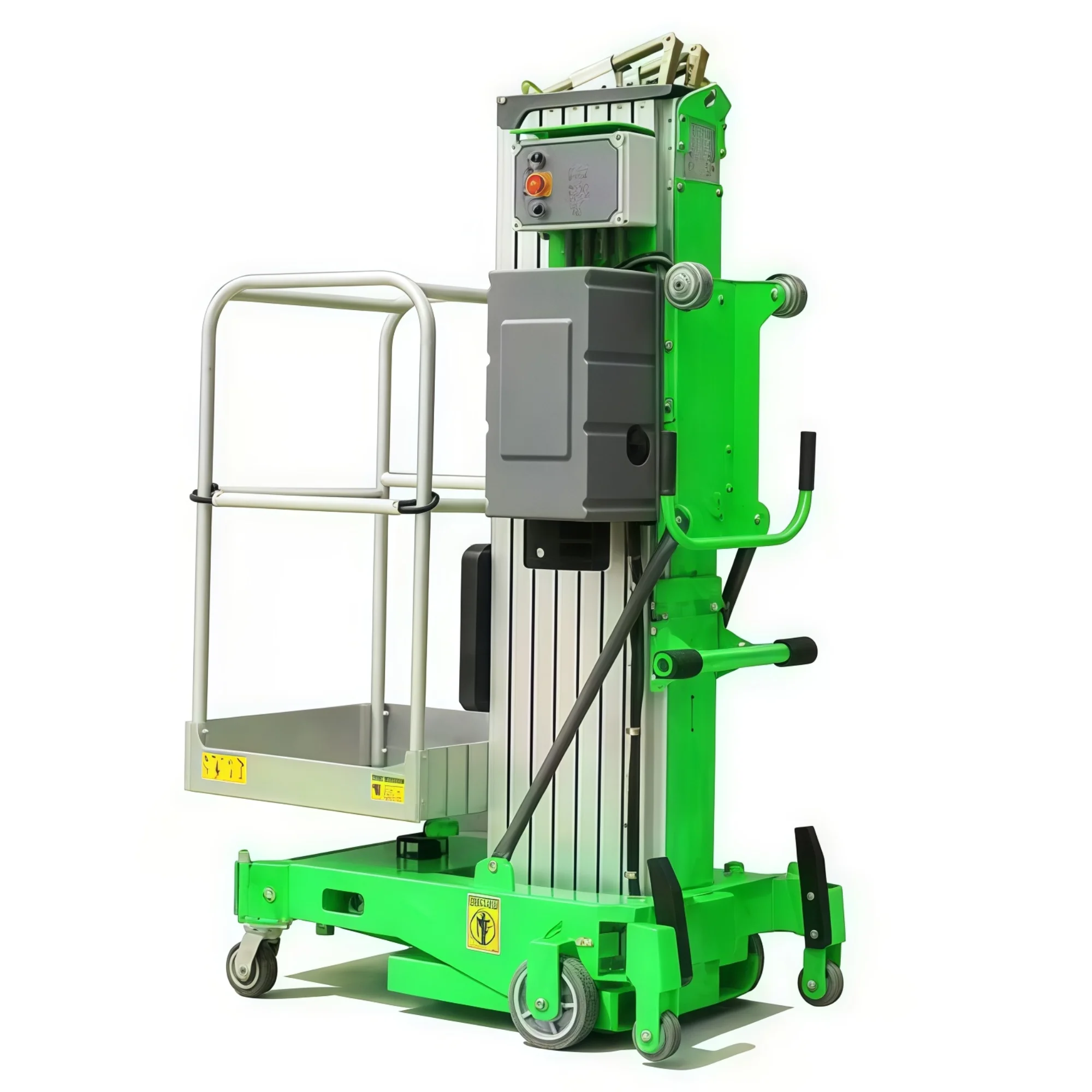

The Chenlift MT600-1 is a single mast mobile vertical lift delivering 8.2 m working height with 150 kg platform capacity on a 0.67×0.66 m platform. Powered by AC/DC dual power (380V/220V/110V AC with 0.75kw motor, 12V DC with 1.5kw motor), the MT600-1 provides flexible deployment on sites with or without fixed power access. Detachable outriggers with 1.70×1.70 m coverage, outrigger interlock, tilting back frame for easy loading to a pickup truck, and forklift pocket make it highly portable for multi-site use. Platform control with deadman switch, emergency stop button, and emergency lowering system are standard.
MT600-1 Key Specifications
| Specification | MT600-1 |
|---|---|
| Platform Capacity | 150kg |
| Occupants | 1 |
| Working Height Max ❶ | 8.20m |
| Platform Height Max ❷ | 6.20m |
| Overall Length ❸ | 1.24m |
| Overall Width ❹ | 0.74m |
| Overall Height ❺ | 1.99m |
| Outrigger Coverage | 1.70×1.70m |
| Platform Size (L×W) | 0.67×0.66m |
| Total Weight (AC) | 320kg |
| Total Weight (DC) | 355kg |
| Power AC | 380V/220V/110V |
| Power AC Motor | 0.75kw |
| Power DC | 12V |
| Power DC Motor | 1.5kw |
| Charger | 12V/15A |
Standard Configurations
- Platform Control with Deadman Switch
- Emergency Stop Button both on Platform and Ground
- Easily Loading to Pickup Truck
- Outrigger Interlock
- Forklift Pocket
- Emergency Lowering System

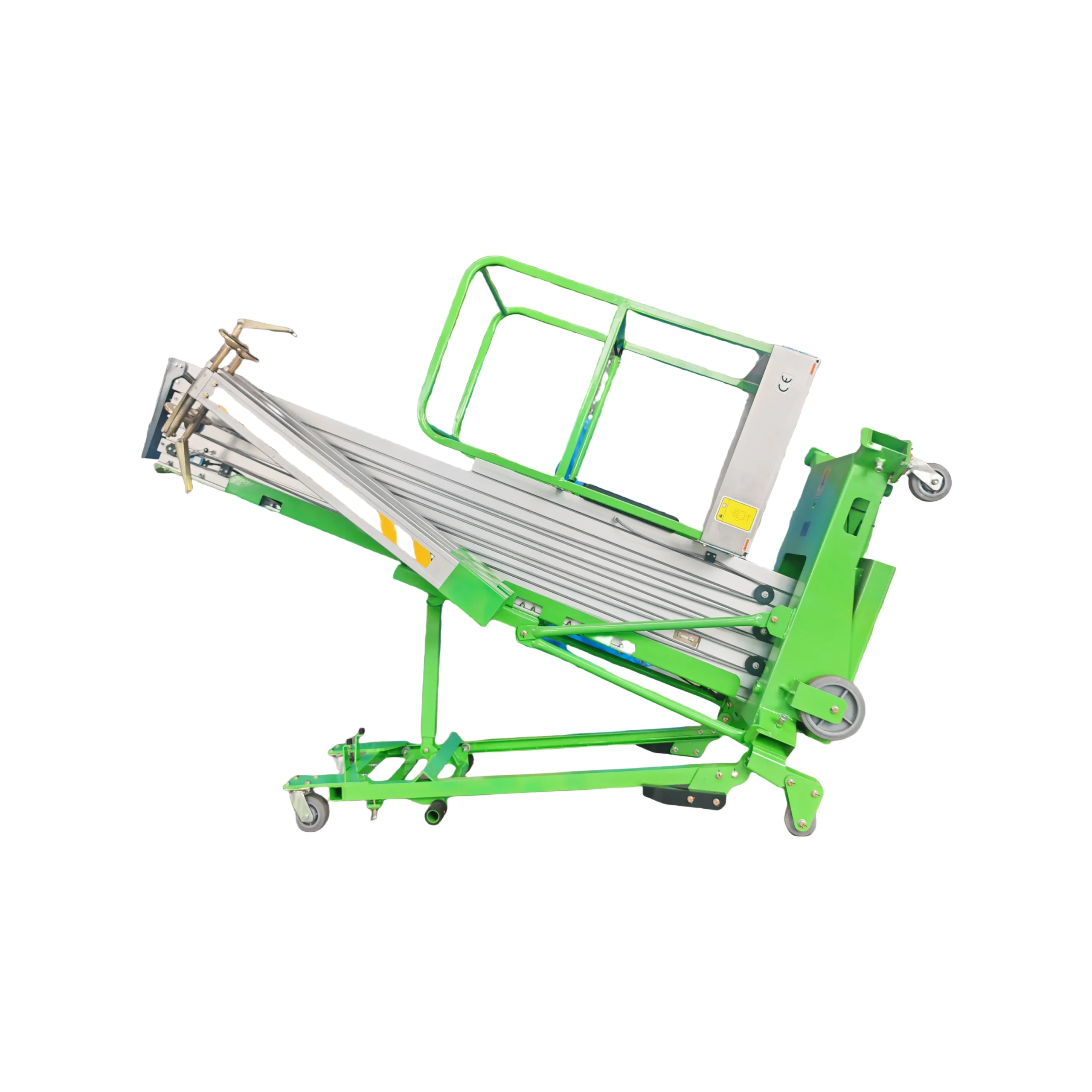

- Tilting Back Frame
- Detachable Outriggers
Optional Configurations
- Explosion-Proof System
- Motorized Device with Horn
- Isolation Platform
- Anti-Collision Sensor
- Over Loading Sensor
- Air Tube to Platform
- Platform Working Light
- Platform Positioning Laser Lights
- Horn on Platform
- Saloon-door Style Entry Gates / Top Open Door
Applicable Scenarios
Indoor Maintenance · Facility Management · Warehouse & Logistics · Retail & Commercial · Light Construction · Airport & Station
