Chenlift (Suzhou) Machinery Co., Ltd.

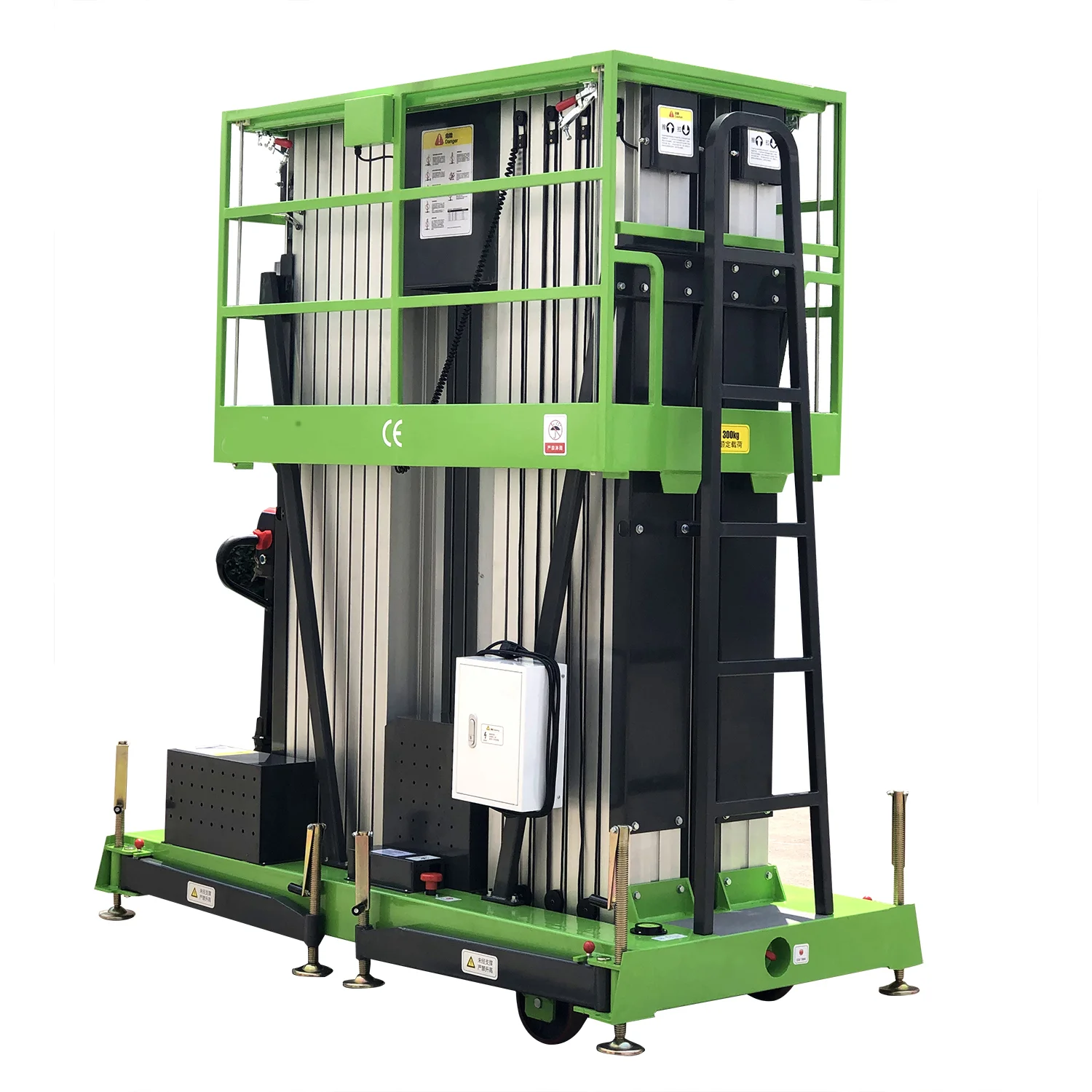

ME Series Aluminum AWP — Multi Mast (3 / 4 / 6 Mast)
AC Power · Optional DC 24V/48V · Forklift Slot · 12–24m Working Height Range
3-Mast: ME1000-3 · ME1200-3 · ME1400-3
4-Mast: ME1000-4 · ME1200-4 · ME1400-4 · ME1600-4
6-Mast: ME1600-6 · ME1800-6 · ME2000-6 · ME2200-6
4-Mast: ME1000-4 · ME1200-4 · ME1400-4 · ME1600-4
6-Mast: ME1600-6 · ME1800-6 · ME2000-6 · ME2200-6
CE
ISO 9001
Up to 24m
24m
Max Working Height
300kg
Max Platform Capacity
3/4/6 Mast
Configurations
11 mdl
Full Range
AC
+DC opt.
+DC opt.
Power Options
Performance Highlights
24m
Max Working Height
(ME2200-6)
(ME2200-6)
300kg
Max Platform Capacity
3-Mast / 4-Mast
3-Mast / 4-Mast
3–6 mast
Mast Configurations
Available
Available
0.15m
Ground Clearance
All Models
All Models
Standard Configurations
AC Power Supply
Auxiliary Lowering Device
Emergency Stop Button (Platform & Ground)
Safety Belt Lock
Forklift Slot
Anti-Dust Cover on Mast
Optional Configurations
The ME Series multi mast aluminum aerial work platform covers eleven models in 3-mast, 4-mast and 6-mast configurations — from 12 m to 24 m working height with up to 300 kg platform capacity. This ME Series multi mast range uses aluminum mast construction with AC power standard and optional DC 24V or 48V. Auxiliary lowering device, emergency stop, safety belt lock and forklift slot included as standard. CE certified for high-reach indoor maintenance, construction and facility management applications.
Note — 4-Mast & 6-Mast Models: The 4-mast (ME1000-4 to ME1600-4) and 6-mast (ME1600-6 to ME2200-6) series extend the working height range up to 24 m. Full specifications and product details are available on the individual product pages. Contact us or visit the product page for complete data.
Technical Specifications
3-Mast — ME1000-3 / ME1200-3 / ME1400-3
| ME1000-3 | ME1200-3 | ME1400-3 | |
| Lift Capacity | 300kg | 250kg | |
| Working Height Max | 12m | 14m | 16m |
| Platform Height Max | 10m | 12m | 14m |
| Stowed Length | 1.78m | 1.9m | |
| Stowed Width | 1.1m | ||
| Stowed Height | 2.05m | 2.32m | |
| Platform Size (L×W) | 1.4×0.88m | 1.53×0.88m | |
| Outrigger Footprint | 2.33×2.23m | 1.60×0.88m | |
| Ground Clearance | 0.15m | ||
| Lifting Motor (AC) | 1.5kw | ||
| Machine Weight (AC) | 900kg | 950kg | 1020kg |
| DC Power Source | 24V/120Ah | ||
| DC Lifting Motor | 2.2kw | ||
| Charger | 24V/12A | ||
4-Mast Summary — ME1000-4 / ME1200-4 / ME1400-4 / ME1600-4
| ME1000-4 | ME1200-4 | ME1400-4 | ME1600-4 | |
| Lift Capacity | 300kg | 200kg | ||
| Working Height Max | 12m | 14m | 16m | 18m |
| Platform Height Max | 10m | 12m | 14m | 16m |
| Machine Weight (AC) | 1100kg | 1270kg | 1360kg | 1520kg |
| Lifting Motor (AC) | 1.5kw | |||
| DC Power Source | 24V/120Ah · DC Motor: 1.5kw · Charger: 24V/12A | |||
6-Mast Summary — ME1600-6 / ME1800-6 / ME2000-6 / ME2200-6
| ME1600-6 | ME1800-6 | ME2000-6 | ME2200-6 | |
| Lift Capacity | 150kg | 100kg | ||
| Working Height Max | 18m | 20m | 22m | 24m |
| Platform Height Max | 16m | 18m | 20m | 22m |
| Machine Weight (AC) | 1680kg | 1790kg | 1970kg | 2020kg |
| Lifting Motor (AC) | 1.5kw | |||
| DC Power Source | 24V/120Ah · DC Motor: 2.2kw · Charger: 24V/12A | |||
Certifications
CEISO 9001
Order Information
| MOQ | 1 Unit |
| Lead Time | 30–45 Days |
| Trade Terms | FOB / CIF / EXW |
| OEM | Available |
| Warranty | 1 Year (Parts) |
| Payment | T/T, LC |
