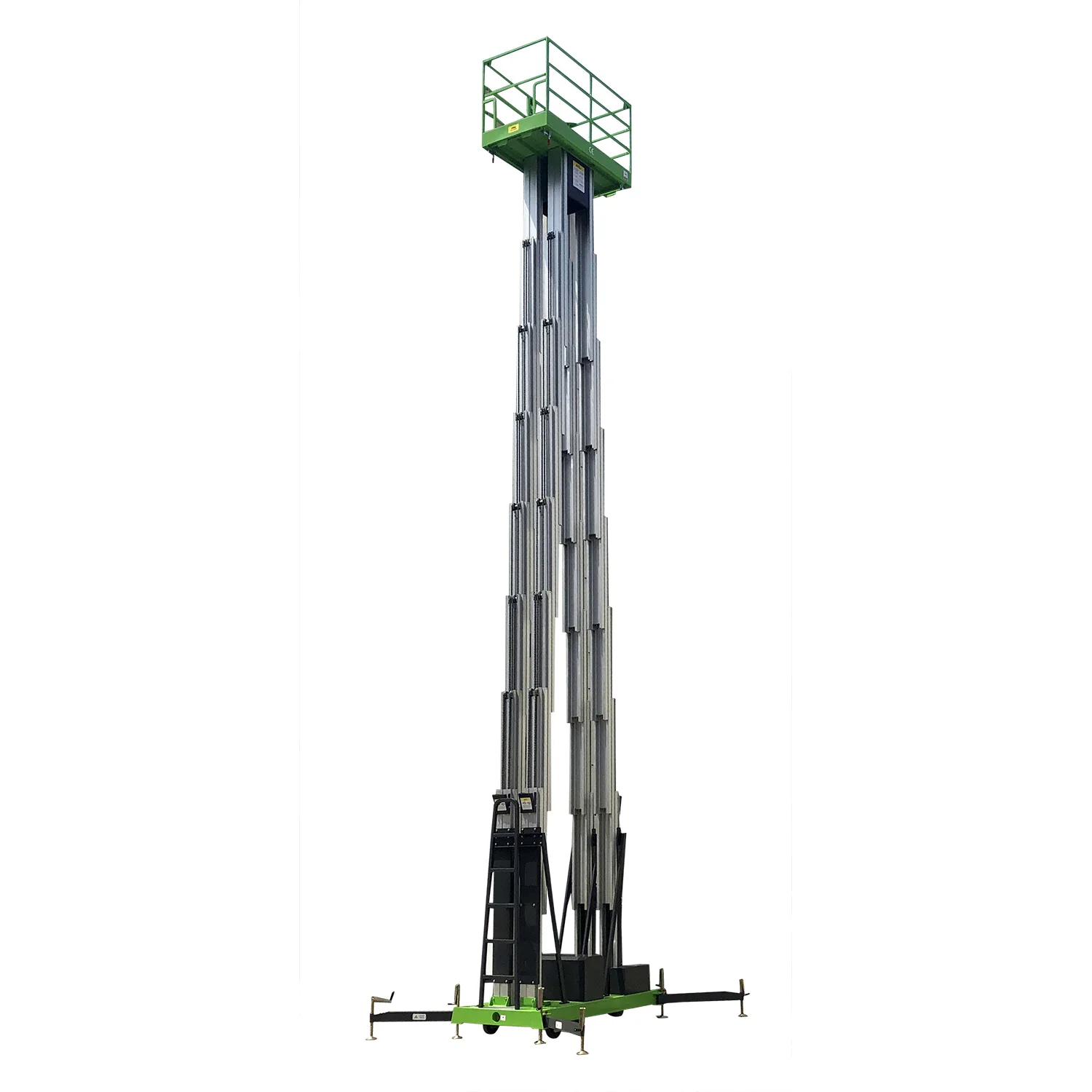

ME Series Multi Mast Aluminum Aerial Work Platform — ME1400-3
The ME1400-3 is the highest-reaching model in the ME three mast range, delivering 16 m working height with 250 kg platform capacity on a 1.53×0.88 m platform. 1.5kw AC lifting motor, 2.32 m stowed height, and AC power (optional DC 24V) — the flagship three mast aluminum AWP for ultra-high-reach indoor applications.
Description
Product Description
ME Series Multi Mast Aluminum Aerial Work Platform — ME1400-3
Overview
The Chenlift ME1400-3 is the flagship model in the ME Series three mast aluminum aerial work platform range, delivering 16 m working height with 250 kg platform capacity on a 1.53×0.88 m platform. Powered by AC supply (380V/220V/110V) with a 1.5kw lifting motor, with optional DC 24V (2.2kw DC motor, 24V/120Ah battery, 24V/12A charger). Stowed height steps up to 2.32 m reflecting the extended three mast reach at this height. At 1020 kg machine weight (AC) with 1.9 m stowed length and 1.1 m stowed width, the ME1400-3 is engineered for the most demanding ultra-high-reach indoor maintenance, construction, and infrastructure applications in the three mast category.
ME1400-3 Key Specifications
| Specification | ME1400-3 |
|---|---|
| Lift Capacity | 250kg |
| Working Height Max | 16m |
| Platform Height Max | 14m |
| Stowed Length | 1.9m |
| Stowed Width | 1.1m |
| Stowed Height | 2.32m |
| Platform Size (L×W) | 1.53×0.88m |
| Outrigger Footprint | 1.60×0.88m |
| Ground Clearance | 0.15m |
| Lifting Motor (AC) | 1.5kw |
| Machine Weight (AC) | 1020kg |
| DC Power Source | 24V/120Ah |
| DC Lifting Motor | 2.2kw |
| Charger | 24V/12A |
Standard Configurations
- AC Power Supply
- Auxiliary Lowering Device
- Emergency Stop Button both on Platform and Ground
- Safety Belt Lock
- Forklift Slot
- Anti-Dust Cover on Mast
Optional Configurations
- DC 24V or DC 48V or Manual Power
- DC Power with Voltage Meter, Battery Indicator and Hour Meter
- Hydraulic Power Pack
- Flame Explosion-Proof System
- Motorized Device with Horn
- Isolation Platform
- Anti-Collision Sensor
- Over Loading Sensor
- AC Power to Platform
- Air Tube to Platform
- Platform Working Light
- Outrigger Sensor
- Platform Positioning Laser Lights
- Manual Pump Power
- Horn on Platform
- Towing Type
- Tilting Function
Applicable Scenarios
Indoor Maintenance · Facility Management · Construction Sites · Warehouse & Logistics · Infrastructure Projects · Airport & Station
