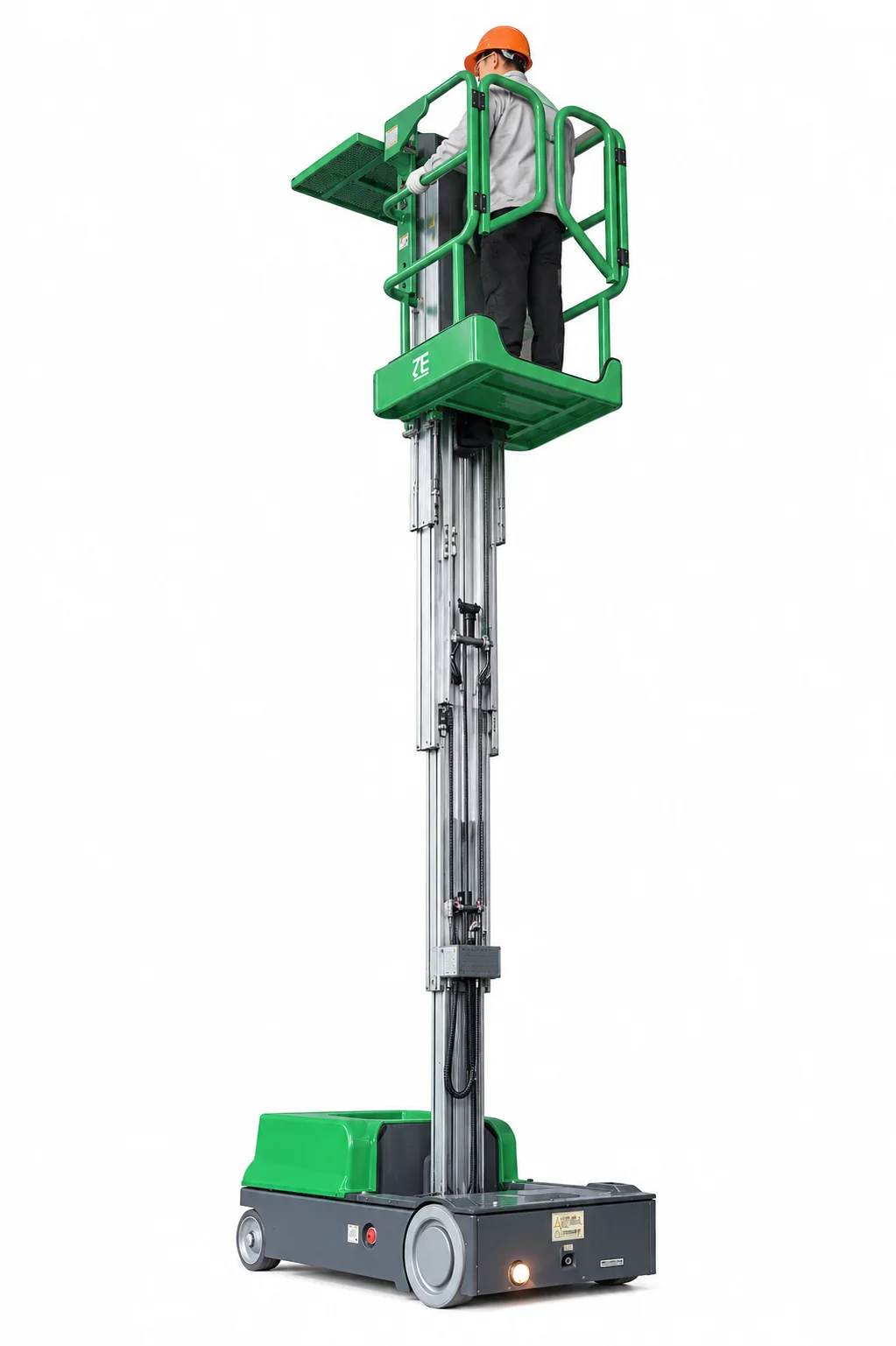

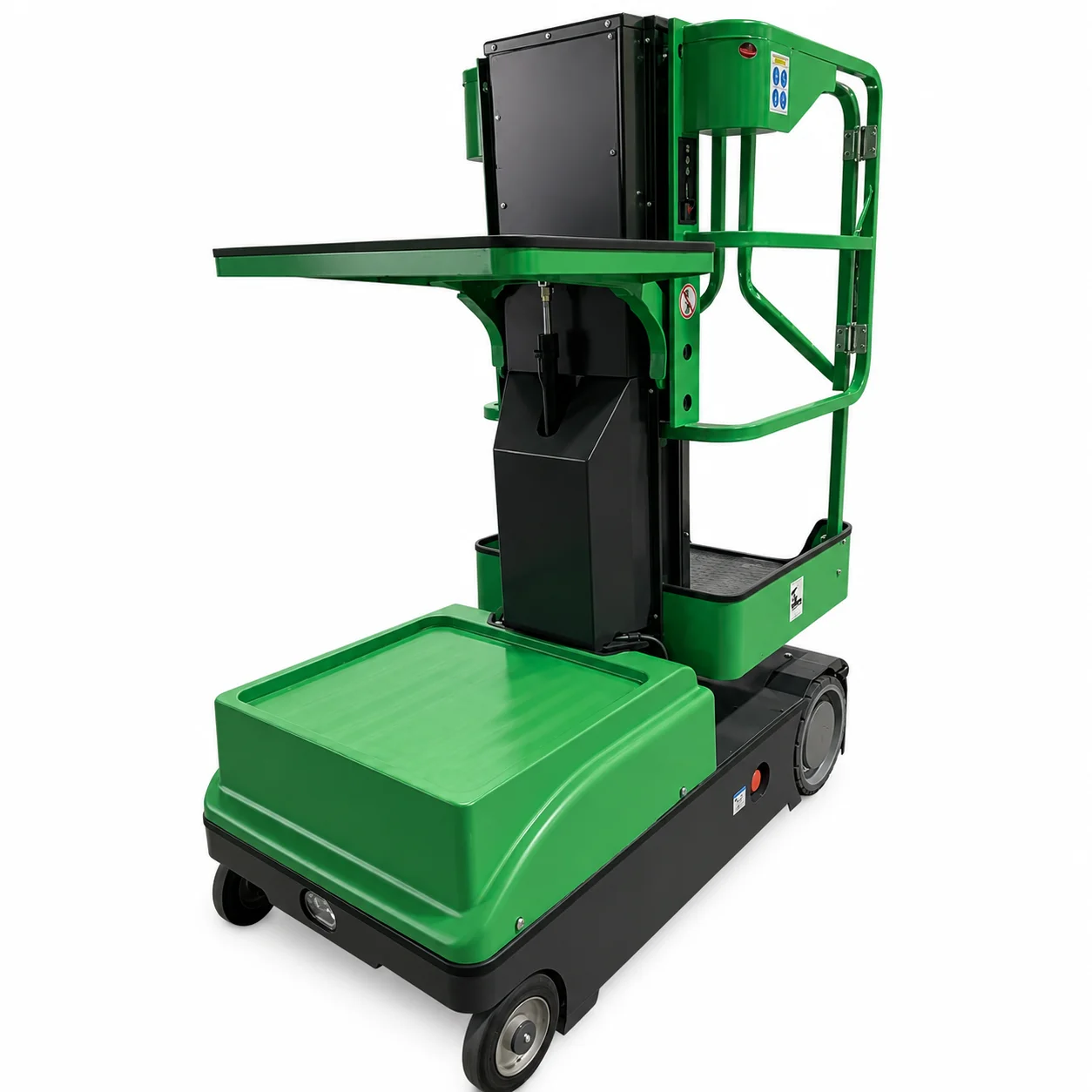

MOP Series Full-Electric Order Picker — MOP400
The MOP400 is the higher-reaching model in the MOP Series, delivering 6 m working height and 4 m maximum platform height with 136 kg person capacity and a built-in mesh shelf for goods (90 kg up / 110 kg down). Electric picking tray, 2WD 2WS, drivable at full height, 750 mm stowed width — the full-height electric order picker for mid-to-high warehouse racking.
Description
Overview
MOP Series Full-Electric Order Picker — MOP400
The Chenlift MOP400 is the higher-reaching model in the MOP Series full-electric order picker range, delivering 6 m maximum working height and 4 m maximum platform height — the tallest model in the series — with 136 kg person capacity and separate mesh shelf dimensions of 0.745×0.56 m for goods storage during picking operations (90 kg up / 110 kg down). Built on a compact 1.475×0.75 m stowed footprint with 1.715 m stowed height, the MOP400 drives at 4 km/h stowed and 0.5 km/h raised, with a maximum permissible tilt of 1.5°/2° and 0.012 m ground clearance. Powered by a 2×12V/100Ah battery with a 24V 0.8 kW lifting motor, Φ305×100 mm drive wheels, and Φ200×50 mm casters, at 850 kg total weight. The electric picking tray with front guard rails, self-locking gates, saloon-door style entry, emergency descent system, flashing beacon, and charging protection system are all standard — suited for picking operations at mid-to-high warehouse racking where a 4 m platform height is required.
MOP400 Key Specifications
| Specification | MOP400 |
|---|---|
| Max Working Height | 6m |
| Max Platform Height | 4m |
| Platform Capacity (Person) | 136kg |
| Platform Capacity (Goods Up) | 90kg |
| Platform Capacity (Goods Down) | 110kg |
| Work Platform Size | 0.755×0.69m |
| Mesh Shelf Dimensions | 0.745×0.56m |
| Stowed Length | 1.475m |
| Stowed Width | 0.75m |
| Stowed Height | 1.715m |
| Travel Speed (Stowed) | 4km/h |
| Travel Speed (Raised) | 0.5km/h |
| Max Permissible Machine Tilt | 1.5°/2° |
| Max Ground Clearance | 0.012m |
| Battery | 2×12V/100Ah |
| Charger | 24V/15A |
| Lifting Motor | 24V 0.8kw |
| Drive Wheel | Φ305×100mm |
| Caster | Φ200×50mm |
| Weight | 850kg |
Standard Configurations
Electric Picking Tray and Front Guard Rails, Self-Locking Gates, Drivable at Full Height, Non-Marking Tires (Two-Wheel Drive Two-Wheel Steering), Emergency Descent System, Emergency Stop Button, Saloon-door Style Entry Gates / Top Open Door, Flashing Beacon, Charging Indicator, Manual Brake Release, Lanyard Attachment Point, Tie-Down and Lifting Points, Charging Protection System
Optional Configurations
AC Power to Platform, Platform Working Light, Extension Platform, Wireless Tracking
Applicable Scenarios
Warehouse Order Picking · Distribution Centers · Retail Stockrooms · Narrow Aisle Racking · E-commerce Fulfillment · Inventory Replenishment
