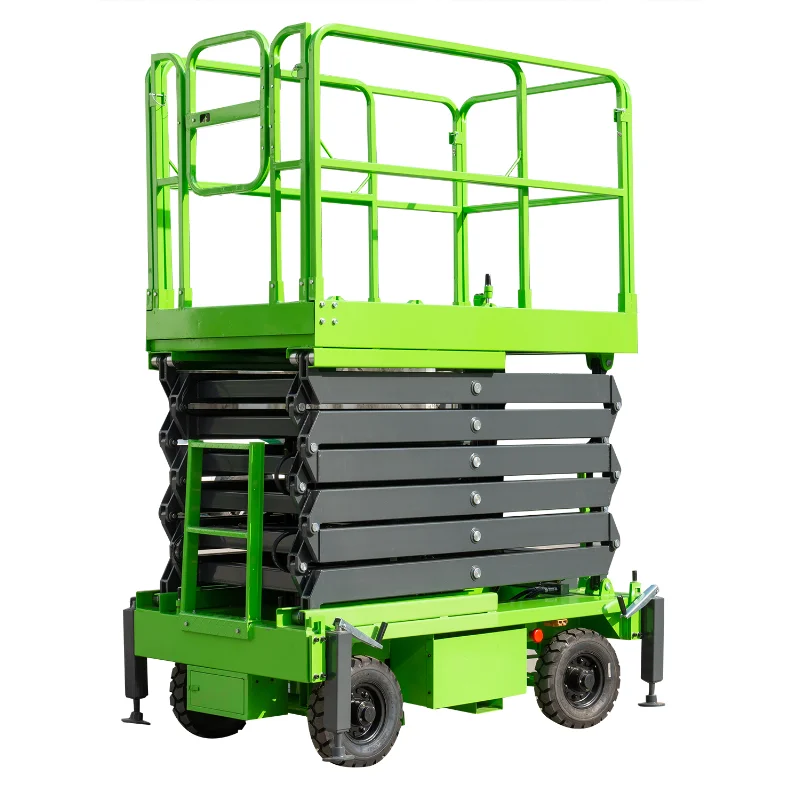

MK Series Manual Pushing Scissor Lift — MK1400
The MK1400 reaches 16 m working height with 500 kg platform capacity on a 2.45×1.35 m platform. AC380V powered with a 4kw motor, φ600-9 pneumatic tyres, detachable outriggers, and optional motorized DC drive with 150Ah battery — engineered for serious high-reach industrial and infrastructure access applications.
Description
Product Description
MK Series Manual Pushing Scissor Lift — MK1400
Overview
The Chenlift MK1400 is a high-reach manual pushing scissor lift delivering 16 m working height with 500 kg platform capacity on a 2.45×1.35 m platform. Powered by AC380V with a 4kw motor and equipped with large φ600-9 pneumatic tyres, the MK1400 provides a stable and robust elevated work platform for demanding industrial, infrastructure, and large-scale construction applications. Detachable outriggers, leveling indicator, and removable platform control with deadman switch are standard. An optional motorized DC drive package with 2×12V/150Ah battery and 24V/30A charger is available for flexible site deployment.
MK1400 Key Specifications
| Specification | MK1400 |
|---|---|
| Platform Capacity | 500kg |
| Working Height Max ❶ | 16m |
| Platform Height Max ❷ | 14m |
| Platform Size (L×W) | 2.45×1.35m |
| Overall Length ❸ | 2.69m |
| Overall Width ❹ | 1.49m |
| Overall Height ❺ | 3.01m |
| Lifting Time | 165S |
| Motor Power | 4kw |
| Power Voltage | AC380V |
| Tyre | φ600-9 pneumatic |
| Weight | 2680kg |
Optional Motorized DC Power
| Specification | MK1400 DC Option |
|---|---|
| Driving Motor | 1.2kw |
| Lifting Motor | 4kw |
| Power Source | 2×12V/150Ah |
| Charger | 24V/30A |
| Overall Size (L×W×H) | 2.99×1.49×3.01m |
Standard Configurations
- Platform and Ground Control
- Auxiliary Lowering Device
- Detachable Outriggers
- Leveling Indicator
- Emergency Stop Button both on Platform and Ground
- AC Power Supply — 380V
- Removable Platform Control with Deadman Switch
- Cylinder Holding Valve
- Foldable / Detachable Fence
- Forklift Slot
- Pressure Gauge
- Safety Belt Lock
- Spring Mounted Handle
Optional Configurations
- Lifting Hook
- Motorized Device with Horn
- Solid Tire
- Extension Platform
- Anti-burst Valve on Cylinder
- DC Power or AC & DC Power
- DC Power with Battery Indicator & Hour Meter
- Maintenance Supporting Bar
- Anti-Collision Sensor
- Outrigger Sensor
- Over Loading Protection
- Platform Positioning Laser Lights
Applicable Scenarios
Warehouse & Logistics · Industrial Maintenance · Facility Management · Construction Sites · Infrastructure Projects · Equipment Installation
