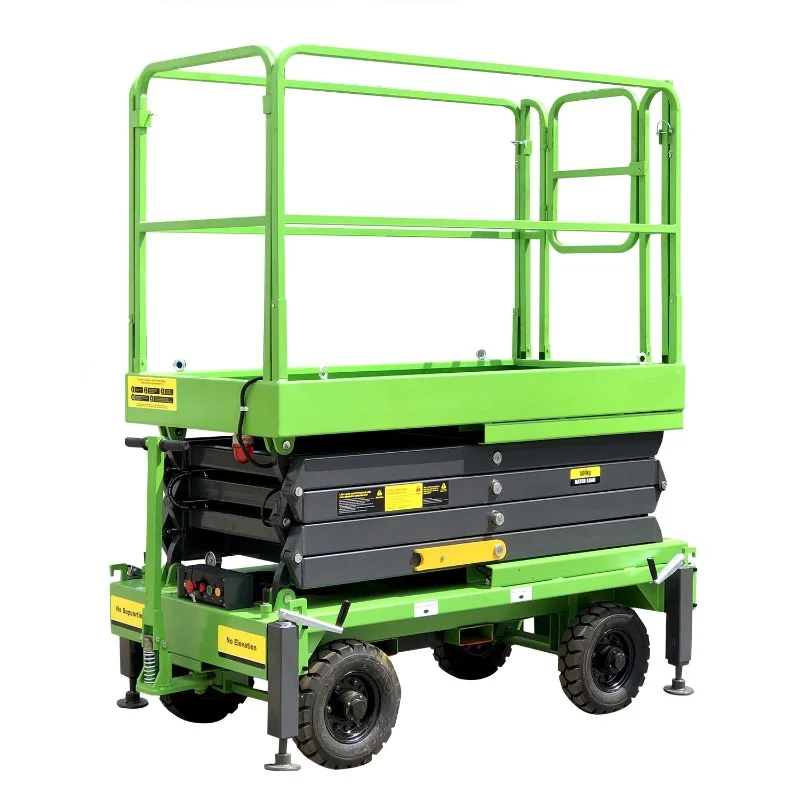

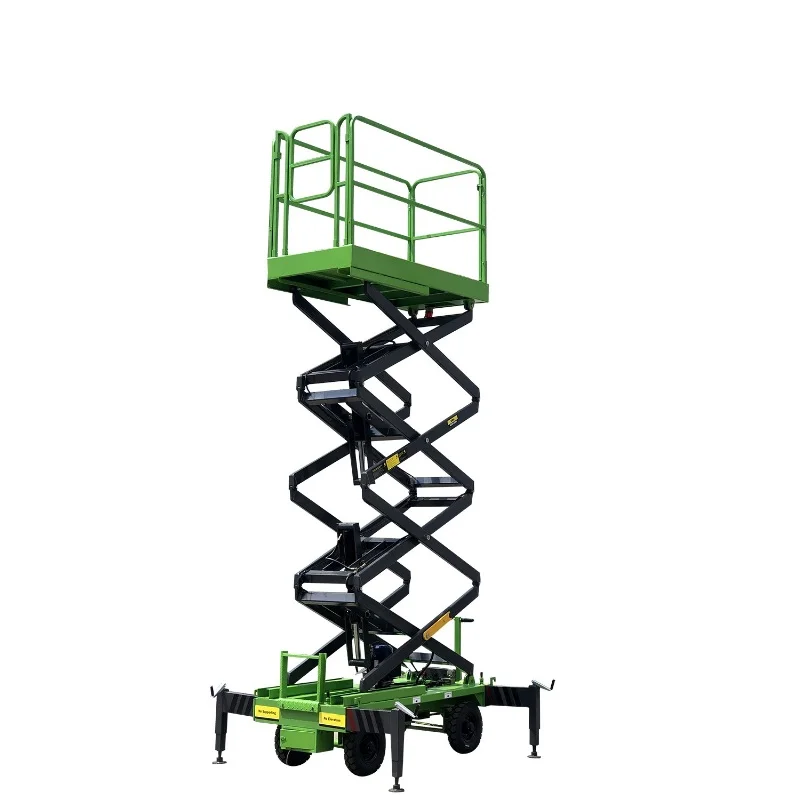

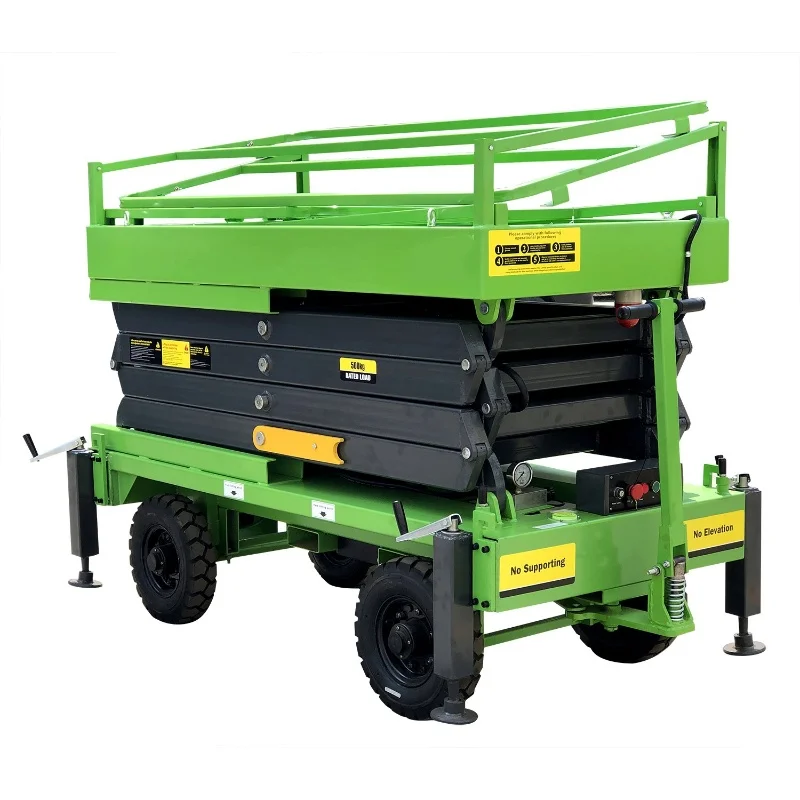

MK Series Manual Pushing Scissor Lift — MK600
The MK600 delivers 8 m working height with 500 kg platform capacity on a 1.85×0.88 m platform. AC220V/380V powered with detachable outriggers, leveling indicator, and optional motorized DC drive — a reliable stationary scissor lift for warehouse, industrial, and facility maintenance applications.
Description
Product Description
MK Series Manual Pushing Scissor Lift — MK600
Overview
The Chenlift MK600 is a manual pushing scissor lift designed for stationary and semi-mobile elevated access applications. With 8 m working height and 500 kg platform capacity on a 1.85×0.88 m platform, the MK600 provides a stable and reliable working base for warehouse, industrial, and facility maintenance tasks. Powered by AC220V/380V with a 1.5kw motor, it features detachable outriggers for enhanced stability, a leveling indicator, and a removable platform control with deadman switch for safe operation. An optional motorized DC drive package is available for sites without convenient AC power access.
MK600 Key Specifications
| Specification | MK600 |
|---|---|
| Platform Capacity | 500kg |
| Working Height Max ❶ | 8m |
| Platform Height Max ❷ | 6m |
| Platform Size (L×W) | 1.85×0.88m |
| Overall Length ❸ | 2.24m |
| Overall Width ❹ | 1.02m |
| Overall Height ❺ | 2.1m |
| Lifting Time | 55S |
| Motor Power | 1.5kw |
| Power Voltage | AC220V/380V |
| Tyre | φ400-8 pneumatic |
| Weight | 1018kg |
Optional Motorized DC Power
| Specification | MK600 DC Option |
|---|---|
| Driving Motor | 0.75kw |
| Lifting Motor | 1.6kw |
| Power Source | 2×12V/100Ah |
| Charger | 24V/15A |
| Overall Size (L×W×H) | 2.54×1.02×2.1m |
Standard Configurations
- Platform and Ground Control
- Auxiliary Lowering Device
- Detachable Outriggers
- Leveling Indicator
- Emergency Stop Button both on Platform and Ground
- AC Power Supply — 220V or 380V
- Removable Platform Control with Deadman Switch
- Cylinder Holding Valve
- Foldable / Detachable Fence
- Forklift Slot
- Pressure Gauge
- Safety Belt Lock
- Spring Mounted Handle
Optional Configurations
- Lifting Hook
- Motorized Device with Horn
- Solid Tire
- Extension Platform
- Anti-burst Valve on Cylinder
- DC Power or AC & DC Power
- DC Power with Battery Indicator & Hour Meter
- Maintenance Supporting Bar
- Anti-Collision Sensor
- Outrigger Sensor
- Over Loading Protection
- Platform Positioning Laser Lights
Applicable Scenarios
Warehouse & Logistics · Industrial Maintenance · Facility Management · Construction Sites · Loading & Unloading · Equipment Installation
