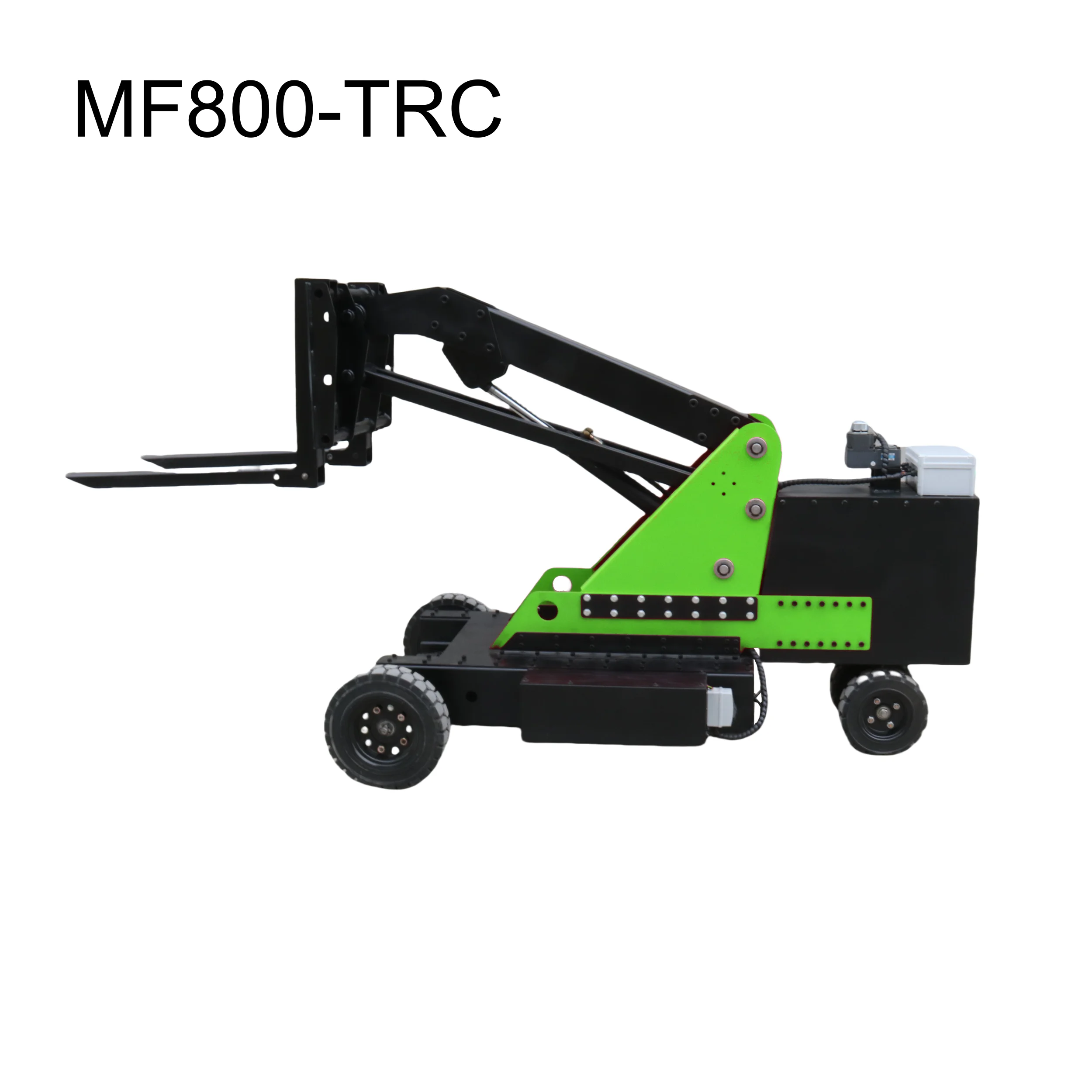

MF Series Portable Forklift — MF800-TRC
The MF800-TRC adds remote control to the MF800 platform — 800 kg capacity and 1850 mm lifting height with 500–1000m control range. Same 1500W motors and 48V/32Ah battery as the MF800-T, 10cm lower overall height — for hands-free operation on loading docks requiring greater lift reach.
Description
Overview
MF Series Portable Forklift — MF800-TRC
The Chenlift MF800-TRC is the remote-controlled variant of the MF800 portable forklift, combining 800 kg capacity and 1850 mm lifting height with a 500–1000m range remote control system. Retaining the same 1500W drive and 1500W lift DC motors, Ø400×100mm solid wheels, and 48V/32Ah battery as the MF800-T, the MF800-TRC operates at 2100×1150×1250mm overall dimensions — 10cm lower in height than the standard model. All control systems are housed in the white control box at the rear. Remote control range is 500–1000m depending on obstacle density and signal conditions. Battery runtime is slightly shorter due to steering motor power consumption. Fork adjustable ±5cm on both sides, interchangeable fixtures.
MF800-TRC Key Specifications
| Specification | MF800-TRC |
|---|---|
| Capacity | 800kg |
| Lifting Height | 1850mm |
| Overall Size (L×W×H) | 2100×1150×1250mm |
| Drive Motor | 1500W |
| Lift Motor | 1500W |
| Battery | 48V/32Ah |
| Remote Control Range | 500–1000m |
| Wheel | Ø400×100mm solid tyre |
| Braking Method | Electromagnetic Brake |
| Motor Type | DC |
| Fork | Iron tube 850×100×80mm |
| Supporting Fixtures | Fork / Barrel Jig / Lifting Hook |
| Machine Weight | 980kg |
Product Features
Fork movable ±5cm on both sides with interchangeable accessories, 7074 Stainless Steel Lifting Arm, Mortise and Tenon Welding Process, Modular Construction — Any Part Disassembled for Maintenance, Solid Tires, Remote Control Range 500–1000m, All Control Systems in Rear Control Box, Battery Works Approximately 8 Hours (slightly shorter with RC steering motor)
Customizable Options
Color, Fork, Battery, Visual System, Increase Motor Power, Addition of Lamps
Applicable Scenarios
Loading Dock Operations · Remote-Controlled Forklift Access · Narrow Space Handling · Hazardous Area Operations · Warehouse & Logistics · Single Side Pallet
