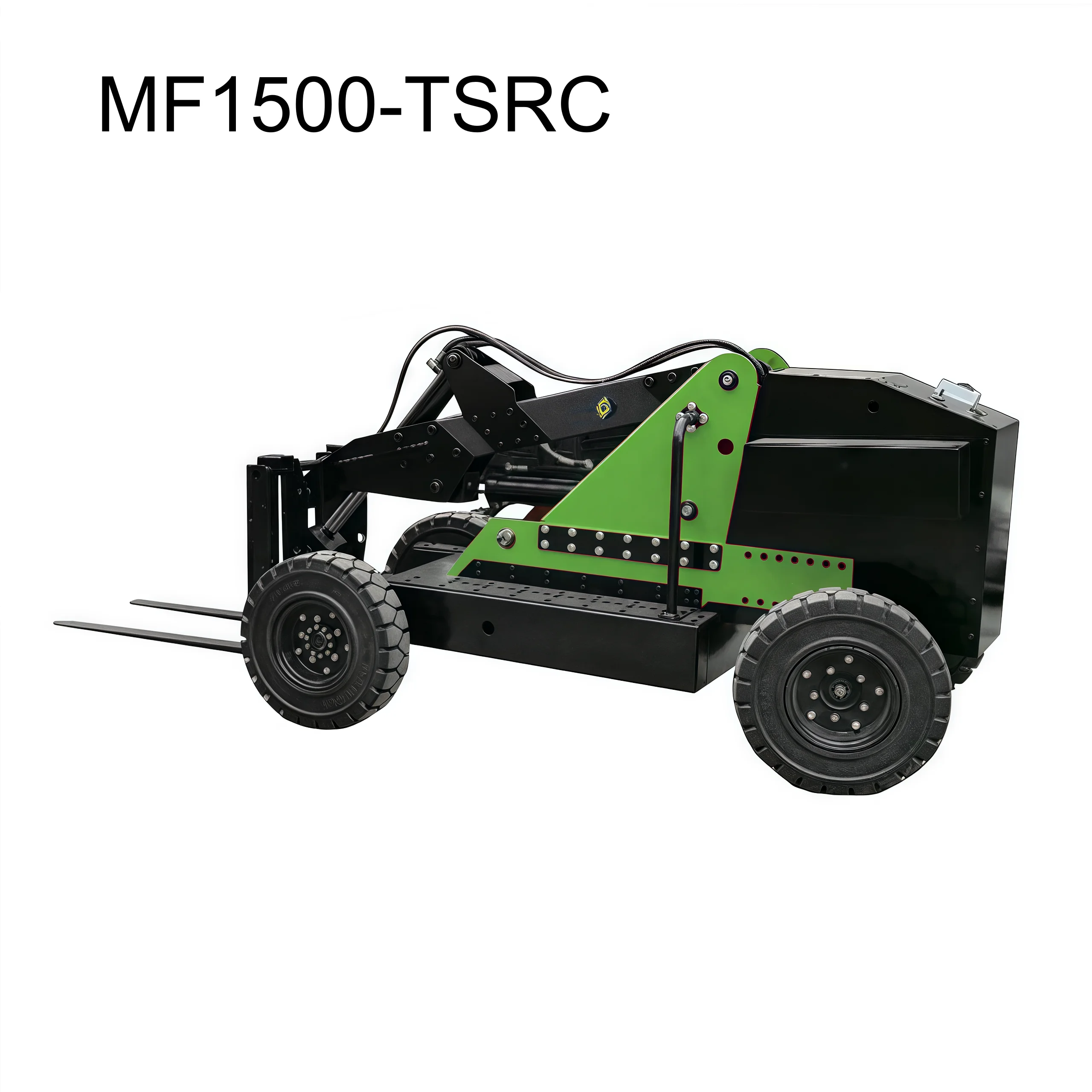

MF Series Portable Forklift — MF1500-TSRC
The MF1500-TSRC is the flagship model in the MF Series — the highest capacity (1500 kg) with steering system and remote control (500–1000m range). 2200W motors, Ø590×190mm wheels, forging fork, full fixture range including bucket, 10cm lower than the MF1500-TS — the ultimate heavy-duty remote-controlled portable forklift.
Description
Overview
MF Series Portable Forklift — MF1500-TSRC
The Chenlift MF1500-TSRC is the flagship model in the MF Series portable forklift range, combining the highest 1500 kg capacity, dedicated steering system, and 500–1000m remote control in a single unit. With 2200W drive and 2200W lift DC motors, Ø590×190mm solid wheels, 48V/32Ah battery, and electromagnetic braking, the MF1500-TSRC operates at 2350×1150×1350mm overall dimensions — 10cm lower than the MF1500-TS. At 1900 kg machine weight, it is the heaviest model in the series — built for the most demanding heavy industrial and loading dock applications where both maximum capacity and hands-free remote operation are required simultaneously. Forging fork 920×90×30mm with full fixture range including bucket. All control systems in the rear control box. Customizable with four-wheel drive and pneumatic tyres.
MF1500-TSRC Key Specifications
| Specification | MF1500-TSRC |
|---|---|
| Capacity | 1500kg |
| Lifting Height | 1850mm |
| Overall Size (L×W×H) | 2350×1150×1350mm |
| Drive Motor | 2200W |
| Lift Motor | 2200W |
| Battery | 48V/32Ah |
| Remote Control Range | 500–1000m |
| Wheel | Ø590×190mm solid tyre |
| Braking Method | Electromagnetic Brake |
| Motor Type | DC |
| Fork | Forging fork 920×90×30mm |
| Supporting Fixtures | Fork / Barrel Jig / Lifting Hook / Bucket |
| Machine Weight | 1900kg |
Product Features
Fork movable ±5cm on both sides with interchangeable accessories, 7074 Stainless Steel Lifting Arm, Mortise and Tenon Welding Process, Modular Construction — Any Part Disassembled for Maintenance, Solid Tires, Dedicated Steering System, Remote Control Range 500–1000m, All Control Systems in Rear Control Box, Battery Works Approximately 8 Hours (slightly shorter with RC steering motor)
Customizable Options
Color, Fork, Battery, Visual System, Four-Wheel Drive System, Increase Motor Power, Addition of Lamps, Pneumatic Tyre
Applicable Scenarios
Heavy-Duty Loading Dock · Remote-Controlled Forklift Access · Industrial Material Handling · Hazardous Area Operations · Warehouse & Logistics · Large Load Positioning
