Chenlift (Suzhou) Machinery Co., Ltd.
MF Series Portable Forklift — 600–1500kg
Self-Propelled · Standard & Remote Control · Electric DC · ~8hr Battery
MF600-T / MF600-TRC
MF800-T / MF800-TRC
MF1000-TS / MF1000-TSRC
MF1500-TS / MF1500-TSRC
MF800-T / MF800-TRC
MF1000-TS / MF1000-TSRC
MF1500-TS / MF1500-TSRC
CE
RC 500–1000m
Up to 1500kg
1500kg
Max Capacity
1850mm
Max Lifting Height
~8hr
Battery Life
1000m
Max RC Range
48V
32Ah
32Ah
Battery
Product Overview
The Chenlift MF Series 600–1500 kg range are self-propelled electric portable forklifts for loading dock operations, narrow-space material handling, and single-side pallet applications. Powered by a 48V/32Ah battery with approximately 8 hours runtime, all models feature DC drive and lift motors, electromagnetic braking, interchangeable fixtures (fork, barrel jig, lifting hook, bucket), and a 7074 stainless steel arm with mortise and tenon welded frame. Models from 600 kg are available in both standard (T/TS) and remote-controlled (TRC/TSRC) versions.

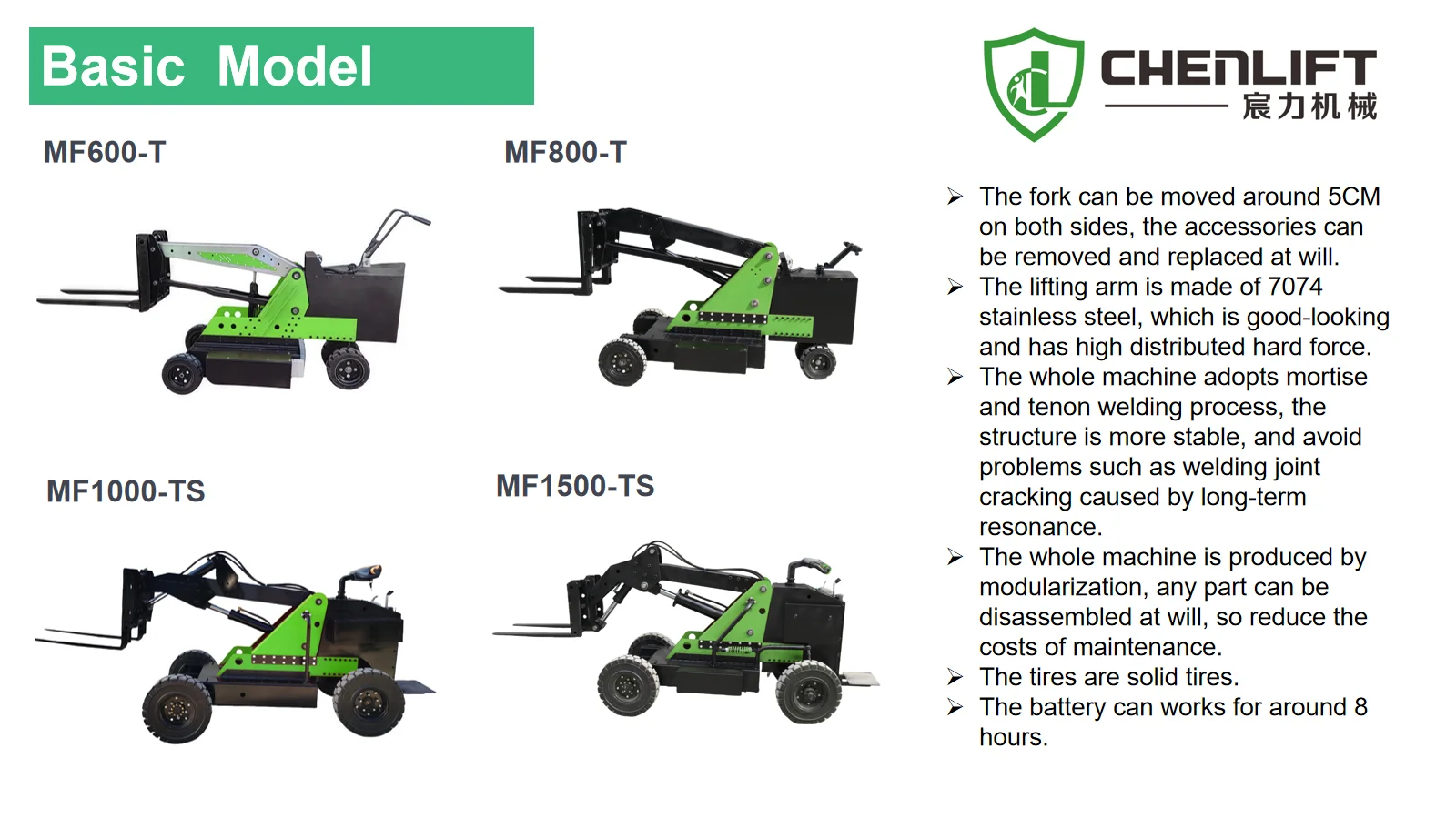

Product Features
Fork movable ±5cm on both sides; fixtures removable and replaceable
7074 stainless steel lifting arm — high distributed hard force
Mortise and tenon welding — prevents joint cracking from long-term resonance
Modular construction — any part can be disassembled for maintenance
Solid tires — no puncture risk
Battery works approximately 8 hours per charge
Remote-Controlled Versions: MF600-TRC · MF800-TRC · MF1000-TSRC · MF1500-TSRC
Same specifications as standard models, but 10cm lower in overall height. Remote control range 500–1000m (varies with obstacle density and signal interference). Battery working time slightly shorter due to steering motor power consumption.
Technical Specifications
MF600-T / MF800-T
| MF600-T | MF800-T | |
| Capacity | 600kg | 800kg |
| Lifting Height | 1450mm | 1850mm |
| Overall Size (L×W×H) | 1650×900×1100 | 2100×1150×1350 |
| Drive Motor | 800W | 1500W |
| Lift Motor | 800W | 1500W |
| Battery | 48V/32Ah | |
| Wheel | Ø300×100mm | Ø400×100mm |
| Braking | Electromagnetic | |
| Fork | Iron tube 850×100×80mm | |
| Fixture | Fork / Barrel jig / Hook | |
| Machine Weight | 750kg | 980kg |
MF1000-TS / MF1500-TS
| MF1000-TS | MF1500-TS | |
| Capacity | 1000kg | 1500kg |
| Lifting Height | 1850mm | |
| Overall Size (L×W×H) | 2350×1150×1450mm | |
| Drive Motor | 2200W | |
| Lift Motor | 2200W | |
| Battery | 48V/32Ah | |
| Wheel | Ø590×190mm solid | |
| Braking | Electromagnetic | |
| Fork | Forging fork 920×90×30mm | |
| Fixture | Fork / Barrel jig / Hook / Bucket | |
| Machine Weight | 1500kg | 1900kg |
Customizable Options
Certifications
CEISO 9001
Order Information
| MOQ | 1 Unit |
| Lead Time | 30–45 Days |
| Trade Terms | FOB / CIF / EXW |
| OEM | Available |
| Warranty | 1 Year (Parts) |
Applicable Scenarios
