MF Series Portable Forklift — MF1500-TS
The MF1500-TS is the heaviest-capacity standard control model in the MF Series, delivering 1500 kg capacity with steering system, 2200W motors, and Ø590×190mm wheels at 1900 kg machine weight. Forging fork, full fixture range including bucket — the flagship standard portable forklift for the most demanding heavy loading dock applications.
Description
Overview

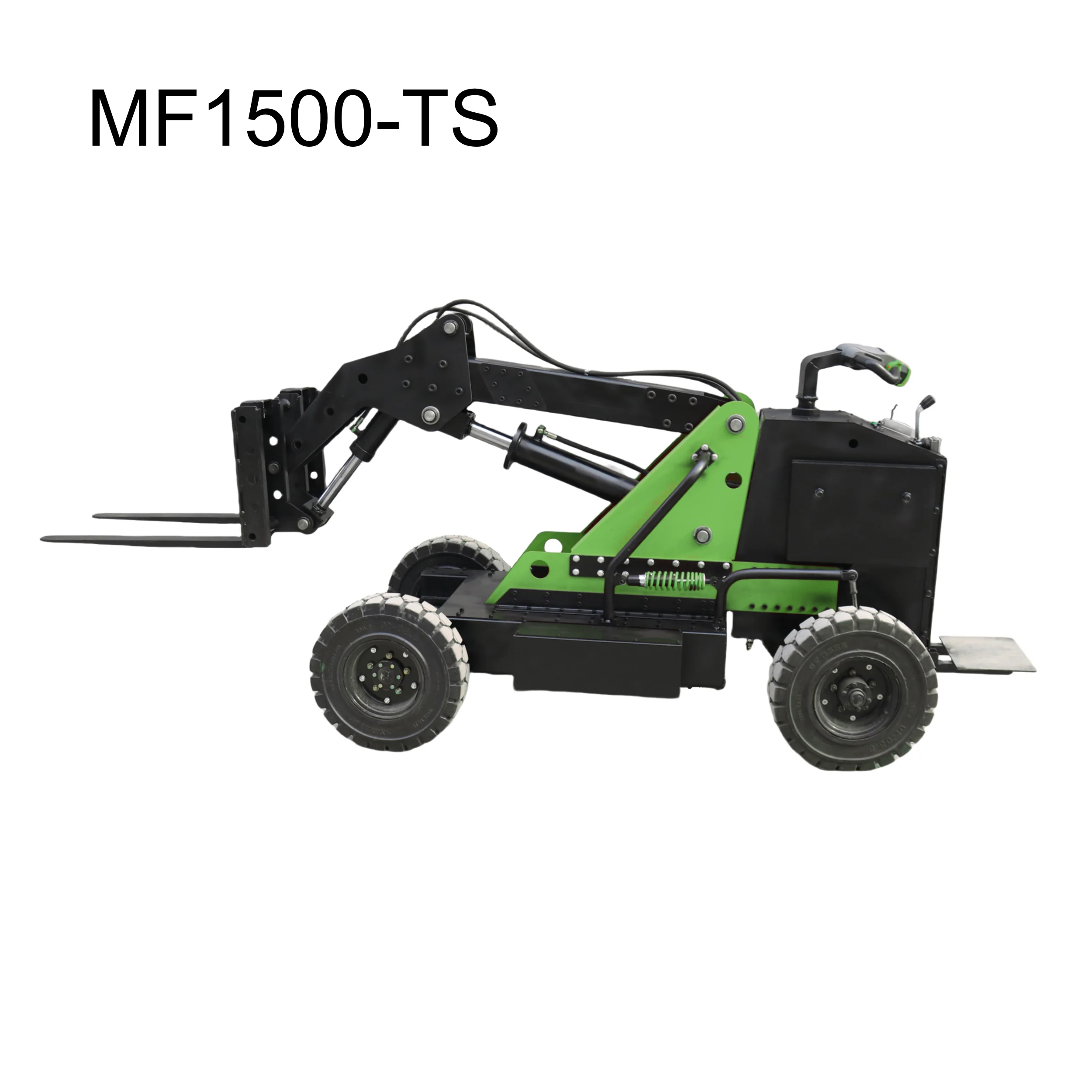

MF Series Portable Forklift — MF1500-TS
The Chenlift MF1500-TS is the highest-capacity standard control model in the MF Series portable forklift range, delivering 1500 kg capacity with 1850 mm lifting height and a dedicated steering system at 1900 kg machine weight — the heaviest unit in the series. Sharing the same 2350×1150×1450mm footprint, 2200W drive and lift motors, Ø590×190mm solid wheels, and 48V/32Ah battery as the MF1000-TS, the MF1500-TS is distinguished by its 500kg additional load capacity for the most demanding heavy industrial and loading dock applications. Forging fork 920×90×30mm with full range of interchangeable fixtures including bucket. Customizable with four-wheel drive system and pneumatic tyres. A remote-controlled version (MF1500-TSRC) is also available.
MF1500-TS Key Specifications
| Specification | MF1500-TS |
|---|---|
| Capacity | 1500kg |
| Lifting Height | 1850mm |
| Overall Size (L×W×H) | 2350×1150×1450mm |
| Drive Motor | 2200W |
| Lift Motor | 2200W |
| Battery | 48V/32Ah |
| Wheel | Ø590×190mm solid tyre |
| Braking Method | Electromagnetic Brake |
| Motor Type | DC |
| Fork | Forging fork 920×90×30mm |
| Supporting Fixtures | Fork / Barrel Jig / Lifting Hook / Bucket |
| Machine Weight | 1900kg |
Product Features
Fork movable ±5cm on both sides with interchangeable accessories, 7074 Stainless Steel Lifting Arm, Mortise and Tenon Welding Process, Modular Construction — Any Part Disassembled for Maintenance, Solid Tires, Dedicated Steering System, Battery Works Approximately 8 Hours
Customizable Options
Color, Fork, Battery, Visual System, Four-Wheel Drive System, Increase Motor Power, Addition of Lamps, Pneumatic Tyre
Applicable Scenarios
Heavy-Duty Loading Dock · Industrial Material Handling · Single Side Pallet · Warehouse & Logistics · Manufacturing · Large Load Positioning
