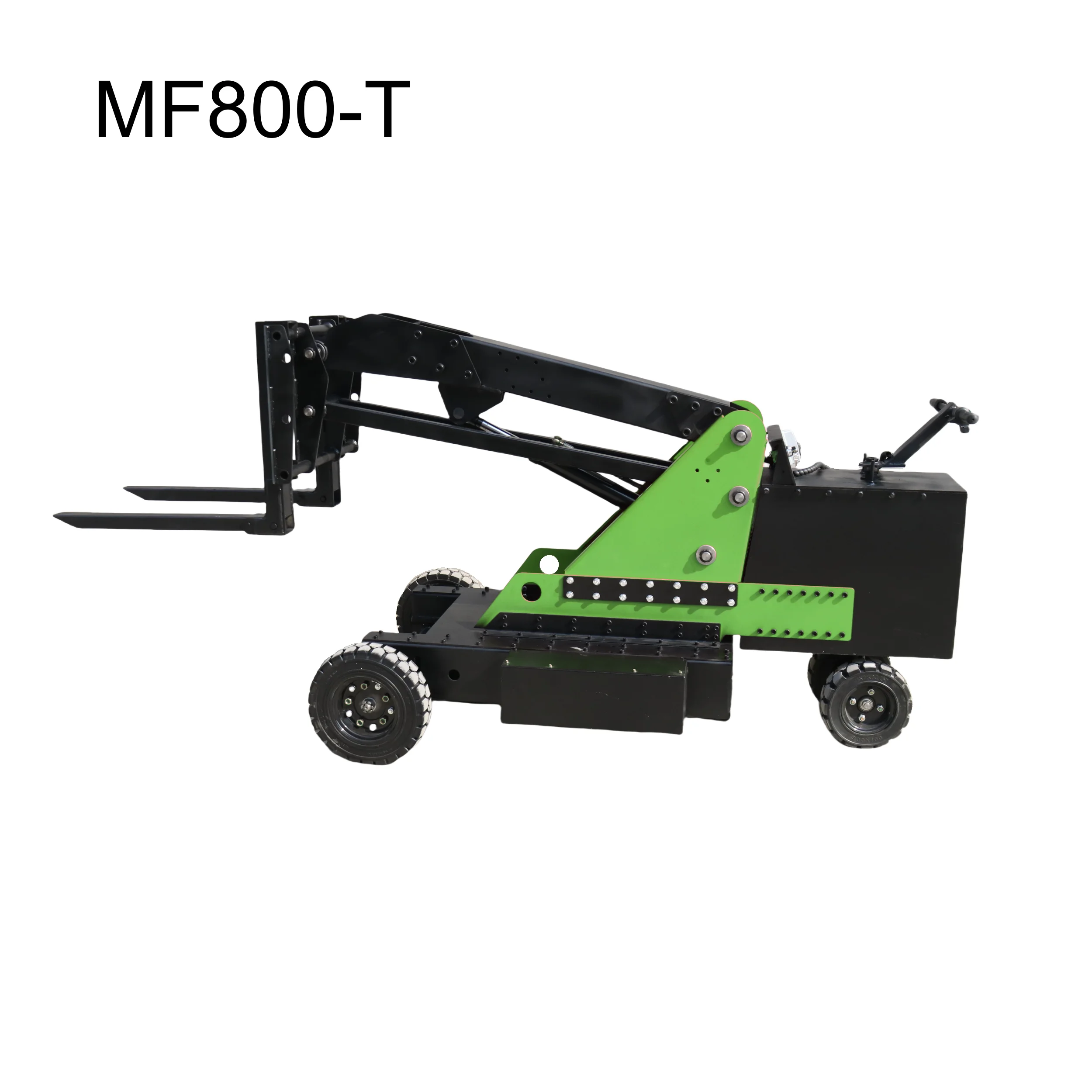

MF Series Portable Forklift — MF800-T
The MF800-T steps up to 800 kg capacity and a higher 1850 mm lifting height, with 1500W drive + 1500W lift motors and larger Ø400mm solid wheels. 48V/32Ah battery, electromagnetic brake, ~8hr runtime — the higher-reach standard model for heavier loading dock operations.
Description
Overview
MF Series Portable Forklift — MF800-T
The Chenlift MF800-T is a self-propelled portable forklift delivering 800 kg capacity with a higher 1850 mm lifting height — 400mm more than the MF600-T — for operations requiring greater lift reach on loading docks or elevated surfaces. With 1500W drive and 1500W lift DC motors, larger Ø400×100 mm solid wheels, 48V/32Ah battery for approximately 8 hours runtime, and electromagnetic braking, the MF800-T operates within a 2100×1150×1350 mm overall footprint at 980 kg machine weight. Iron tube 850×100×80mm fork adjustable ±5cm on both sides, supporting fixtures (fork, barrel jig, lifting hook) interchangeable. Mortise and tenon welded 7074 stainless steel arm and modular construction throughout. A remote-controlled version (MF800-TRC) is also available.
MF800-T Key Specifications
| Specification | MF800-T |
|---|---|
| Capacity | 800kg |
| Lifting Height | 1850mm |
| Overall Size (L×W×H) | 2100×1150×1350mm |
| Drive Motor | 1500W |
| Lift Motor | 1500W |
| Battery | 48V/32Ah |
| Wheel | Ø400×100mm solid tyre |
| Braking Method | Electromagnetic Brake |
| Motor Type | DC |
| Fork | Iron tube 850×100×80mm |
| Supporting Fixtures | Fork / Barrel Jig / Lifting Hook |
| Machine Weight | 980kg |
Product Features
Fork movable ±5cm on both sides with interchangeable accessories, 7074 Stainless Steel Lifting Arm, Mortise and Tenon Welding Process, Modular Construction — Any Part Disassembled for Maintenance, Solid Tires, Battery Works Approximately 8 Hours
Customizable Options
Color, Fork, Battery, Visual System, Increase Motor Power, Addition of Lamps
Applicable Scenarios
Loading Dock Operations · Narrow Space Handling · Single Side Pallet · Warehouse & Logistics · Manufacturing · Material Positioning
