MP Series Portable Self-Loading Cart — MP105
The MP105 is a compact portable electric scissor-lift cart delivering 300 kg capacity with a 1.35×0.7 m platform that extends 0–1.6 m and lifts from 0.24 m to 1.05 m — designed to load and unload from mini vans and pickup trucks without fixed dock equipment. At 131 kg with a 1.5×0.7×1.1 m stowed footprint, it stores inside the vehicle between uses.
Description
Overview

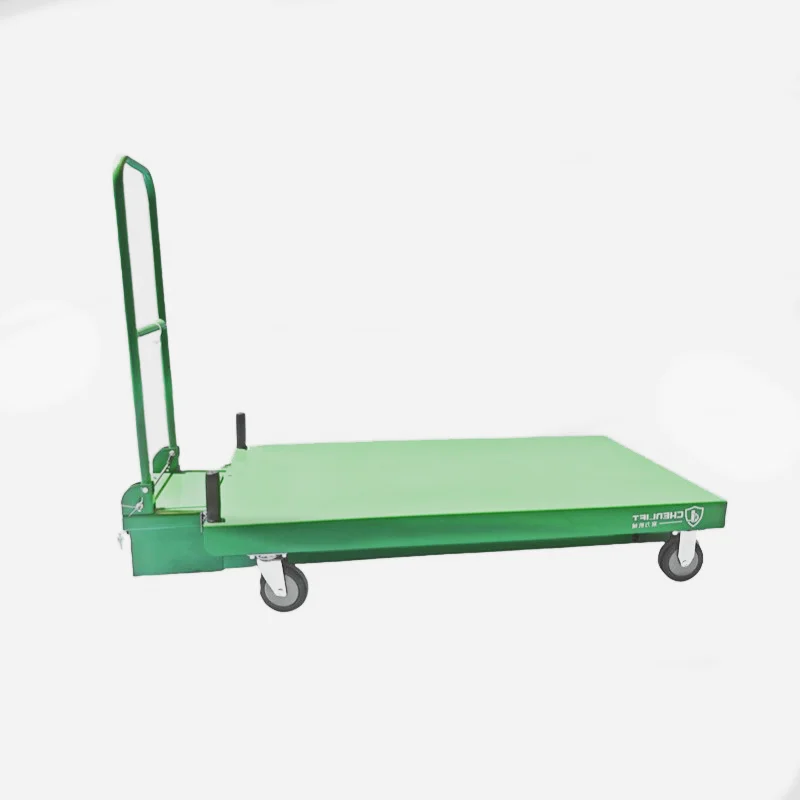

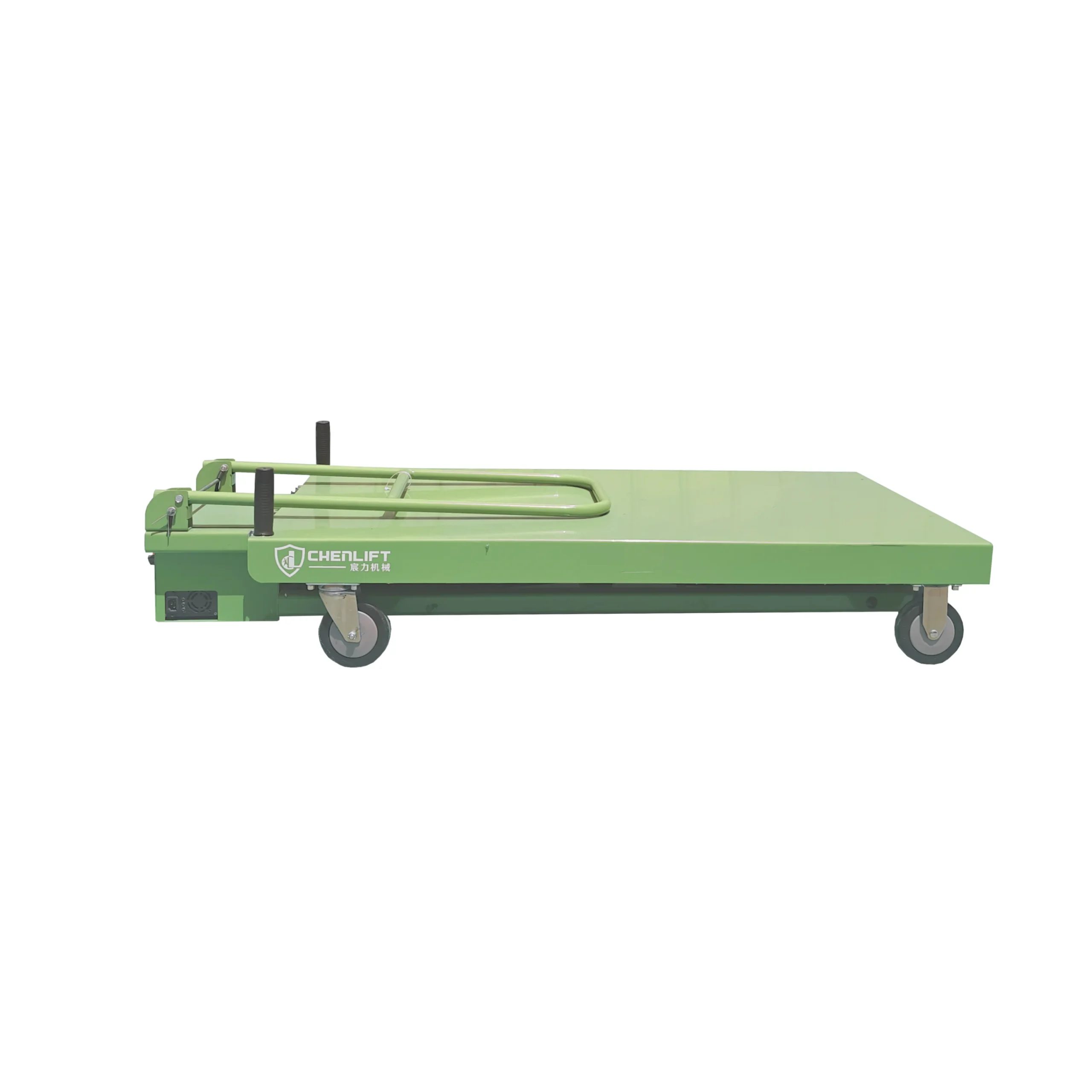

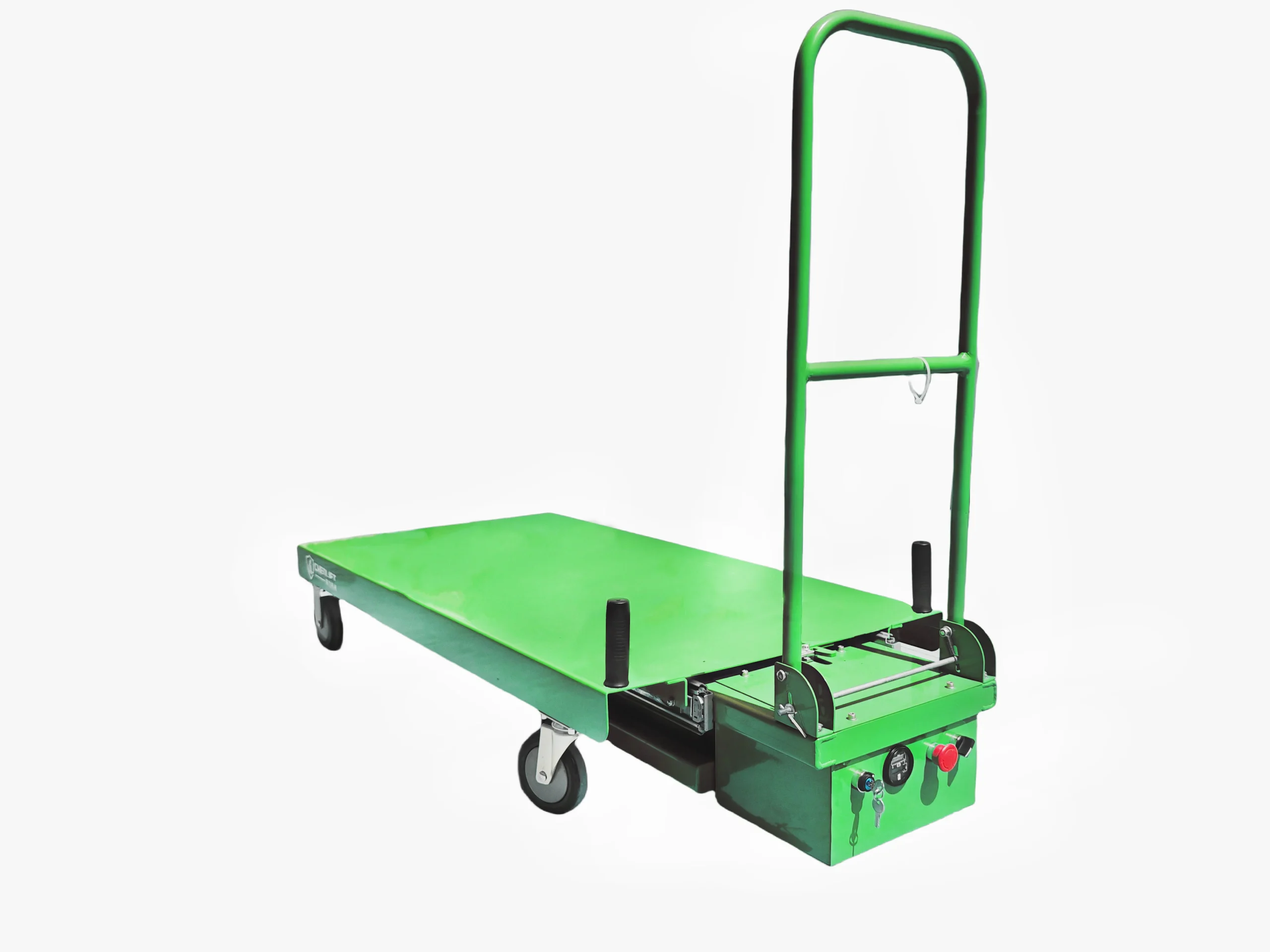

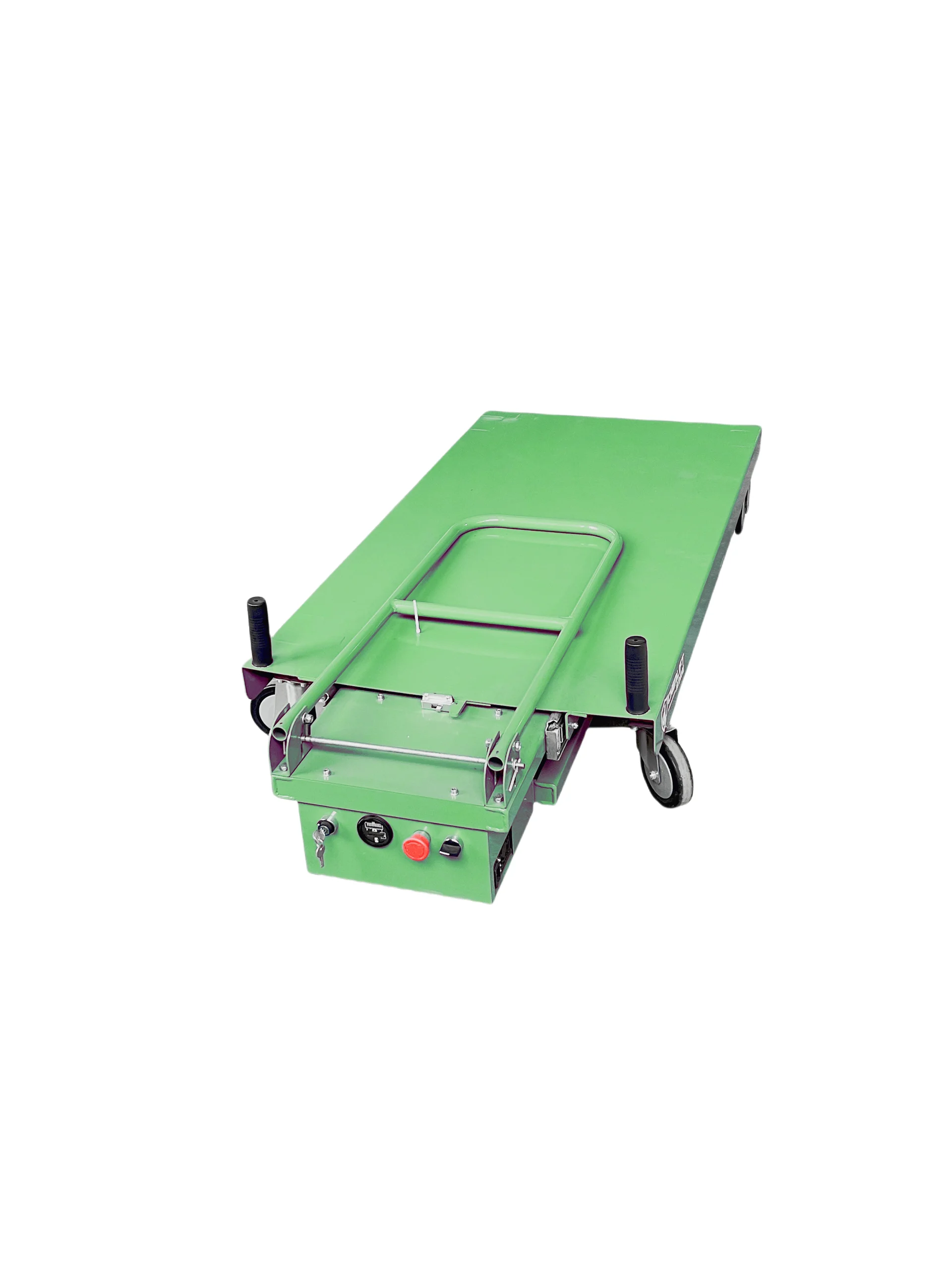

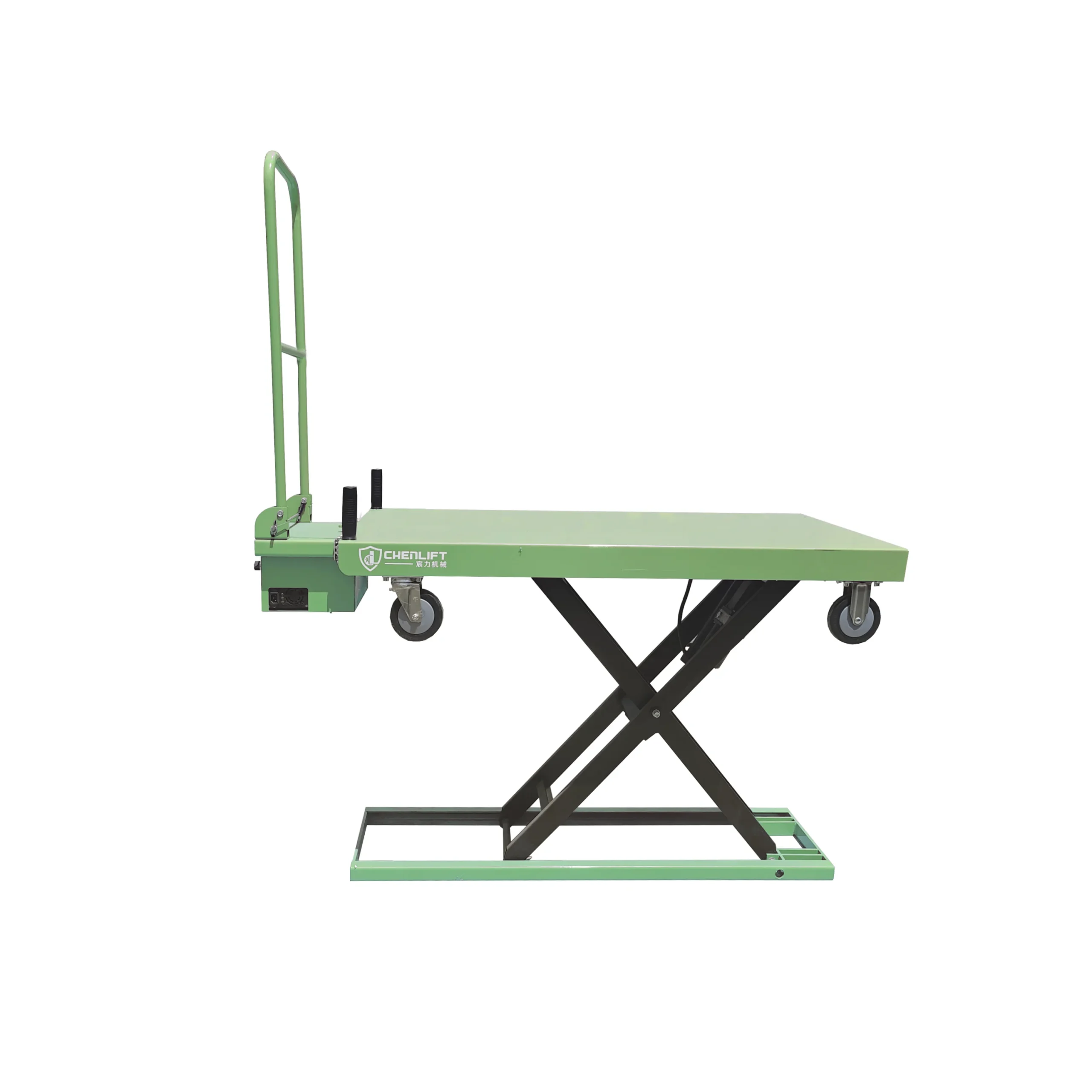

MP Series Portable Self-Loading Cart — MP105
The Chenlift MP105 is a portable electric scissor-lift cart designed to eliminate the difficulty of loading and unloading from mini vans, pickup trucks, and small delivery vehicles at locations without fixed dock infrastructure. With 300 kg lift capacity and a 1.35×0.7 m platform extending 0–1.6 m in reach, the MP105 bridges the gap between ground level and vehicle load floor — starting from a minimum platform height of 0.24 m and lifting to a maximum of 1.05 m to match most van and pickup floor heights. The platform automatically locks when retracted, and the retractable push handle keeps the unit compact for maneuvering and storage. Two swivel wheels and two directional wheels allow easy positioning. At just 131 kg with a 1.5×0.7×1.1 m stowed size, the MP105 fits inside most vans and pickups, traveling with the vehicle to every delivery or collection point. Powered by a 12V/40Ah lithium battery with 12V/300W pump station and limit switch for reliable operation. CE certified.
MP105 Key Specifications
| Specification | MP105 |
|---|---|
| Lift Capacity | 300kg |
| Platform Size | 1.35×0.7m |
| Extension Range | 0–1.6m |
| Min Platform Height | 0.24m |
| Max Platform Height | 1.05m |
| Overall Size (Stowed) | 1.5×0.7×1.1m |
| Above Ground | ≥810mm |
| Ground Clearance (Stowed) | ≥30mm |
| Pump Station | 12V/300W |
| Power Supply | 12V/40Ah |
| Weight | 131kg |
Product Features
Automatically Locked when Platform Retracted, Retractable Push Handle, 300 kg Lift Capacity, Compact Design — Can be Stored in the Car, More Convenient to Load or Unload from the Mini Van, 2 Swivel Wheels and 2 Directional Wheels, Lithium Battery with Charger Included, More Reliable with Limit Switch
Applicable Scenarios
Van Loading & Unloading · Mini Van Loading Dock · Delivery Operations · Mobile Loading · Workshop Material Handling · Roadside Service
