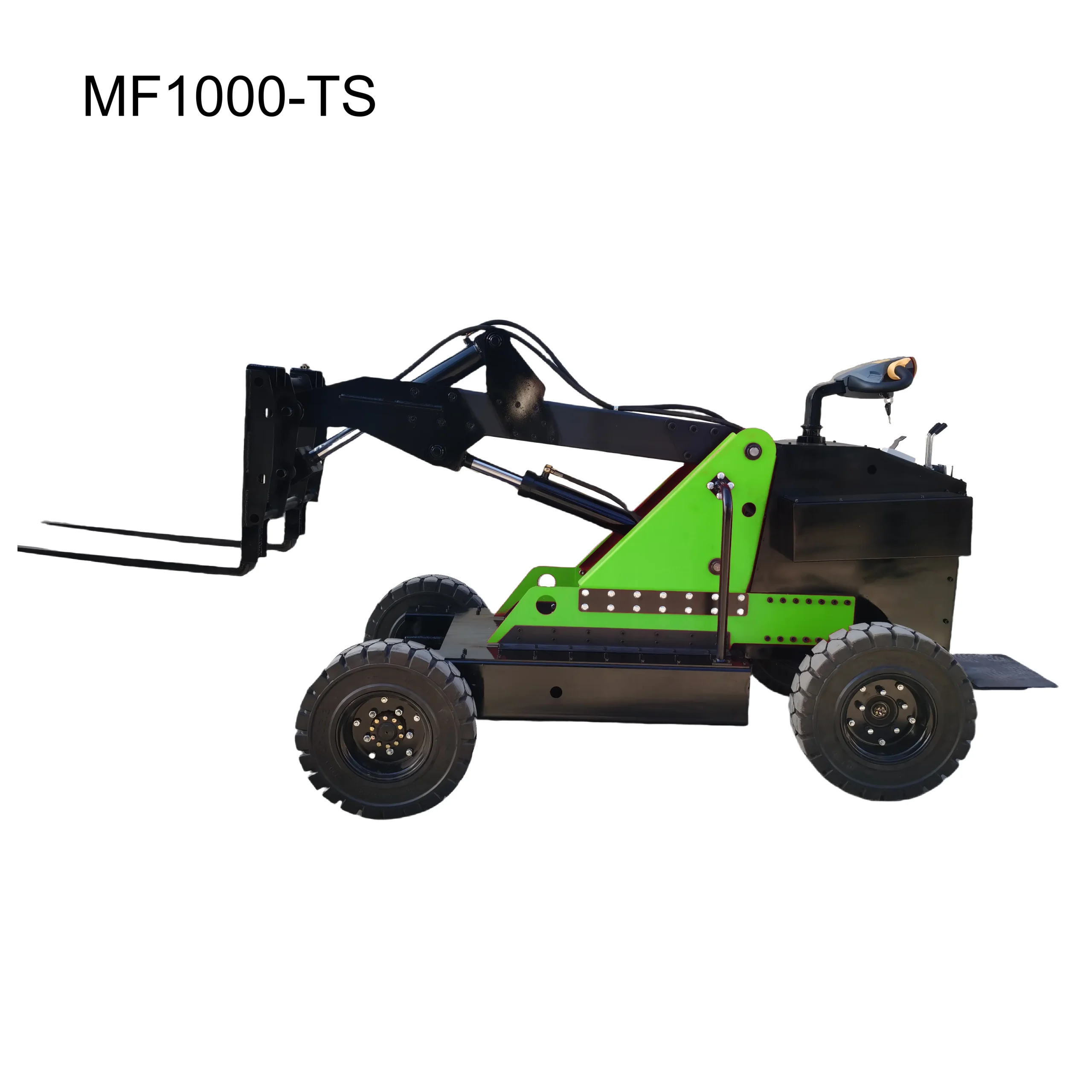

MF Series Portable Forklift — MF1000-TS
The MF1000-TS enters heavy-duty territory with 1000 kg capacity, a dedicated steering system, 2200W drive + 2200W lift motors, and large Ø590×190mm solid wheels. Forging fork standard, bucket fixture available — the heavy self-propelled portable forklift for demanding loading dock applications.
Description
Overview
MF Series Portable Forklift — MF1000-TS
The Chenlift MF1000-TS is a heavy-duty self-propelled portable forklift delivering 1000 kg capacity with 1850 mm lifting height and a dedicated steering system — designated TS (Truck with Steering) to reflect its enhanced maneuverability at this weight class. With 2200W drive and 2200W lift DC motors, large Ø590×190mm solid wheels, 48V/32Ah battery for approximately 8 hours runtime, and electromagnetic braking, it operates within a 2350×1150×1450mm footprint at 1500 kg machine weight. The MF1000-TS upgrades to a forging fork (920×90×30mm) and adds the bucket as an additional interchangeable fixture alongside fork, barrel jig, and lifting hook. Customizable with four-wheel drive system and pneumatic tyres for demanding outdoor loading dock applications. A remote-controlled version (MF1000-TSRC) is available with 500–1000m range.
MF1000-TS Key Specifications
| Specification | MF1000-TS |
|---|---|
| Capacity | 1000kg |
| Lifting Height | 1850mm |
| Overall Size (L×W×H) | 2350×1150×1450mm |
| Drive Motor | 2200W |
| Lift Motor | 2200W |
| Battery | 48V/32Ah |
| Wheel | Ø590×190mm solid tyre |
| Braking Method | Electromagnetic Brake |
| Motor Type | DC |
| Fork | Forging fork 920×90×30mm |
| Supporting Fixtures | Fork / Barrel Jig / Lifting Hook / Bucket |
| Machine Weight | 1500kg |
Product Features
Fork movable ±5cm on both sides with interchangeable accessories, 7074 Stainless Steel Lifting Arm, Mortise and Tenon Welding Process, Modular Construction — Any Part Disassembled for Maintenance, Solid Tires, Dedicated Steering System, Battery Works Approximately 8 Hours
Customizable Options
Color, Fork, Battery, Visual System, Four-Wheel Drive System, Increase Motor Power, Addition of Lamps, Pneumatic Tyre
Applicable Scenarios
Heavy-Duty Loading Dock · Industrial Material Handling · Single Side Pallet · Warehouse & Logistics · Manufacturing · Large Load Positioning
