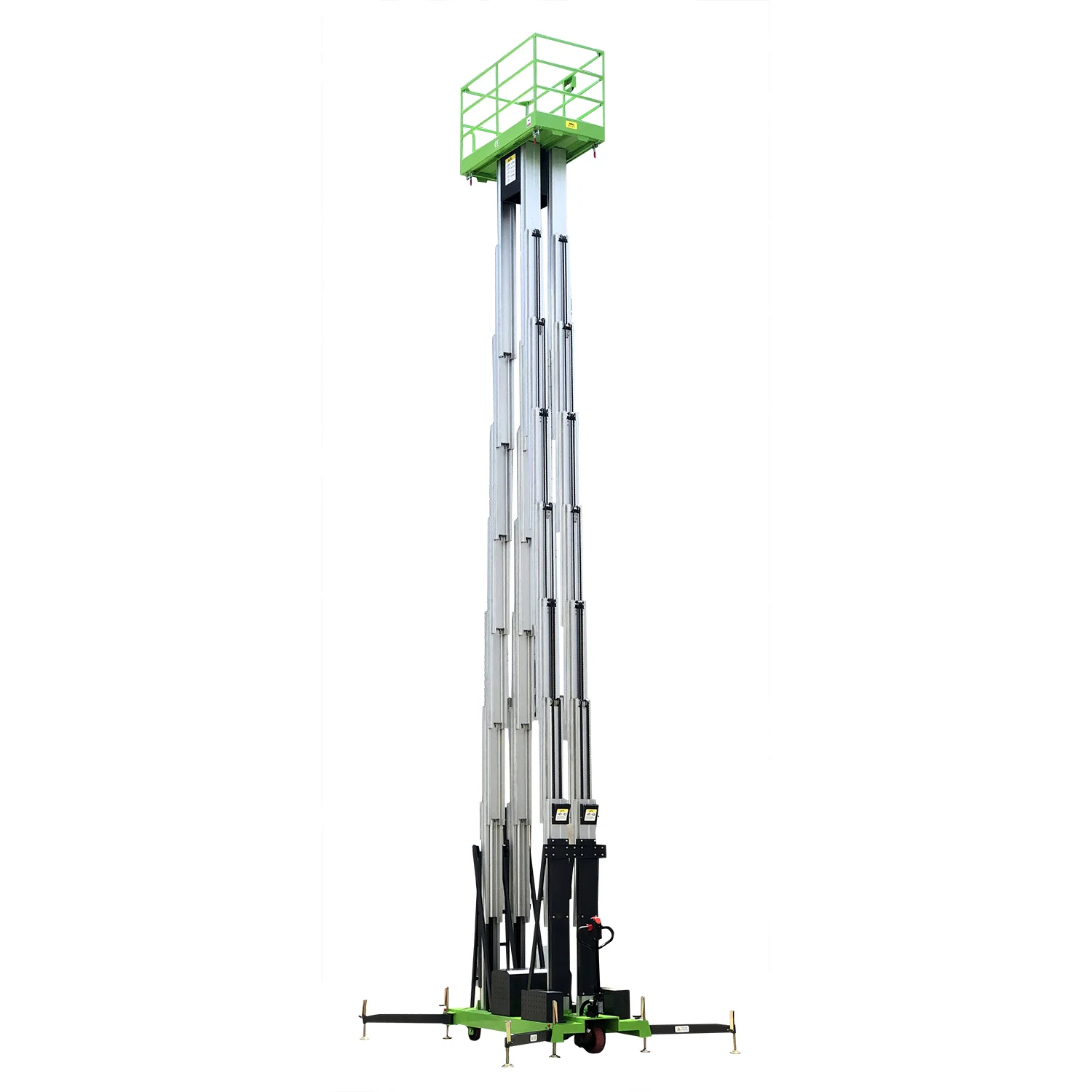

ME Series Multi Mast Aluminum Aerial Work Platform — ME1000-3
The ME1000-3 delivers 12 m working height with 300 kg platform capacity on a 1.4×0.88 m platform. Three mast aluminum construction, AC power (optional DC 24V), 1.5kw lifting motor, 2.33×2.23 m outrigger footprint — the entry-level model in the ME three mast range for high-capacity indoor and facility access applications.
Description
Product Description
ME Series Multi Mast Aluminum Aerial Work Platform — ME1000-3
Overview
The Chenlift ME1000-3 is a three mast aluminum aerial work platform delivering 12 m working height with 300 kg platform capacity on a 1.4×0.88 m platform. Built on a three mast aluminum structure, the ME1000-3 provides greater platform stability and higher load capacity compared to single and double mast models. Powered by AC supply (380V/220V/110V) with a 1.5kw lifting motor, with optional DC 24V (2.2kw DC motor, 24V/120Ah battery, 24V/12A charger). The 2.33×2.23 m outrigger footprint provides stable support at height, with forklift slot, anti-dust cover on mast, auxiliary lowering device, safety belt lock, and emergency stop button on both platform and ground all standard.
ME1000-3 Key Specifications
| Specification | ME1000-3 |
|---|---|
| Lift Capacity | 300kg |
| Working Height Max | 12m |
| Platform Height Max | 10m |
| Stowed Length | 1.78m |
| Stowed Width | 1.1m |
| Stowed Height | 2.05m |
| Platform Size (L×W) | 1.4×0.88m |
| Outrigger Footprint | 2.33×2.23m |
| Ground Clearance | 0.15m |
| Lifting Motor (AC) | 1.5kw |
| Machine Weight (AC) | 900kg |
| DC Power Source | 24V/120Ah |
| DC Lifting Motor | 2.2kw |
| Charger | 24V/12A |
Standard Configurations
- AC Power Supply
- Auxiliary Lowering Device
- Emergency Stop Button both on Platform and Ground
- Safety Belt Lock
- Forklift Slot
- Anti-Dust Cover on Mast
Optional Configurations
- DC 24V or DC 48V or Manual Power
- DC Power with Voltage Meter, Battery Indicator and Hour Meter
- Hydraulic Power Pack
- Flame Explosion-Proof System
- Motorized Device with Horn
- Isolation Platform
- Anti-Collision Sensor
- Over Loading Sensor
- AC Power to Platform
- Air Tube to Platform
- Platform Working Light
- Outrigger Sensor
- Platform Positioning Laser Lights
- Manual Pump Power
- Horn on Platform
- Towing Type
- Tilting Function
Applicable Scenarios
Indoor Maintenance · Facility Management · Construction Sites · Warehouse & Logistics · Infrastructure Projects · Airport & Station
