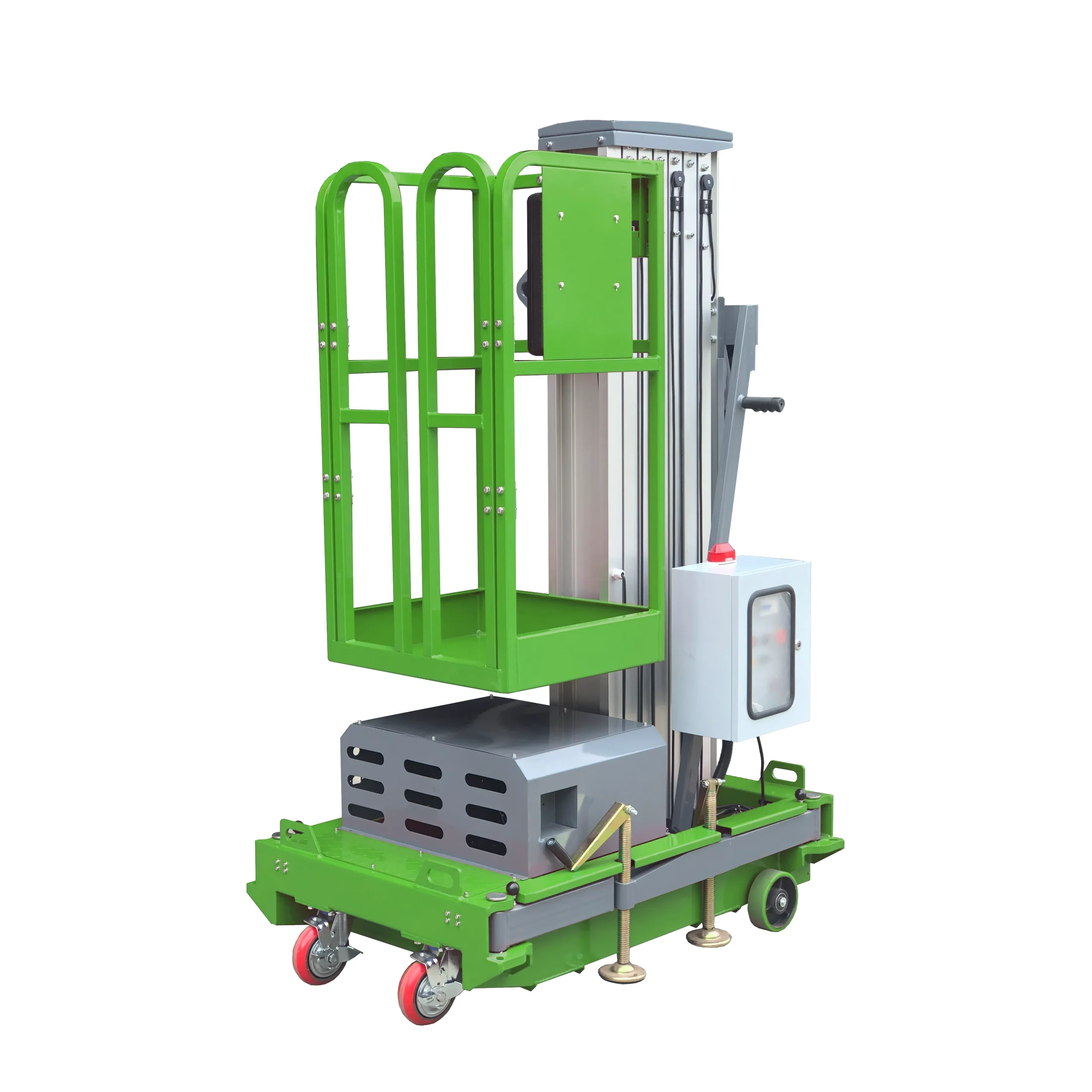

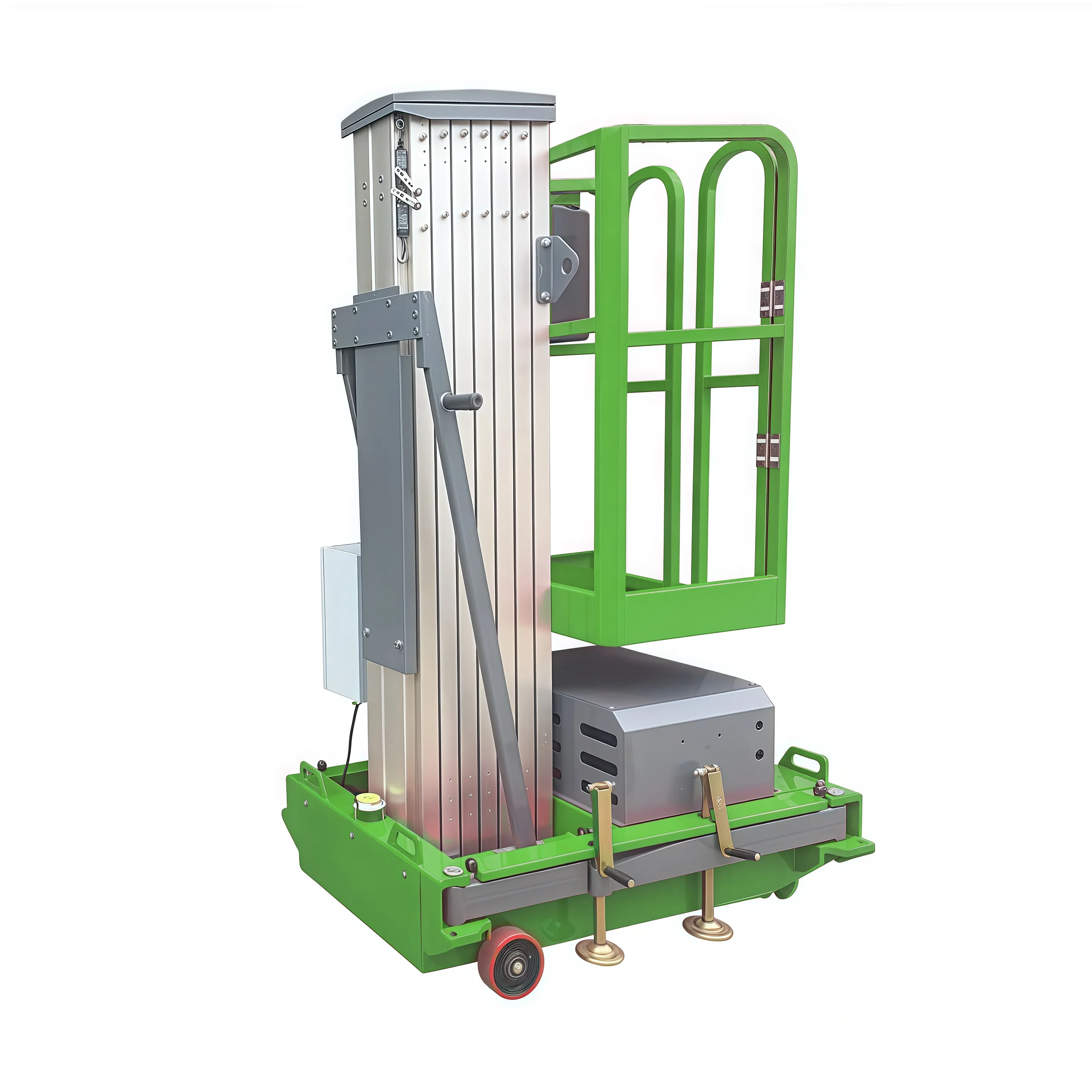

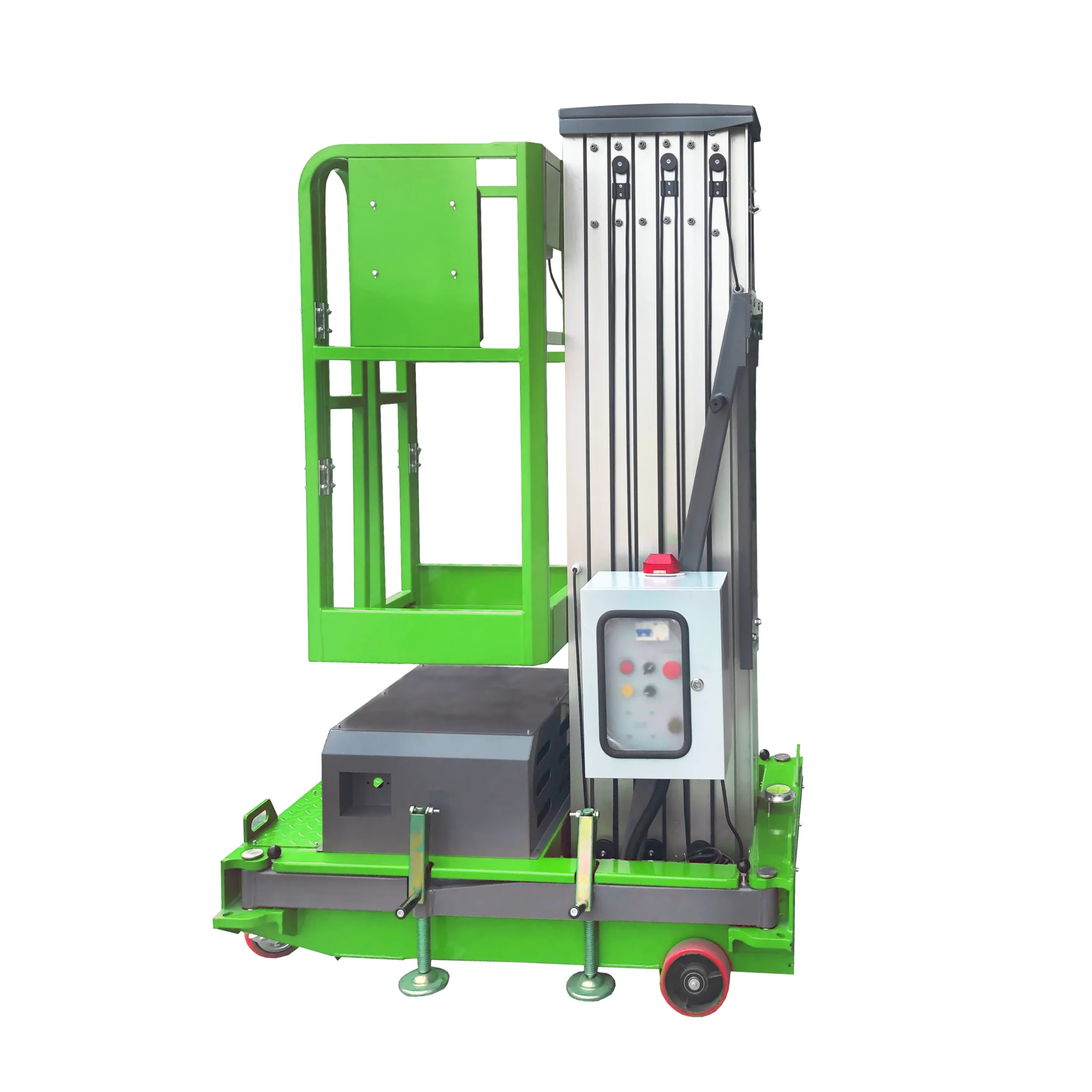

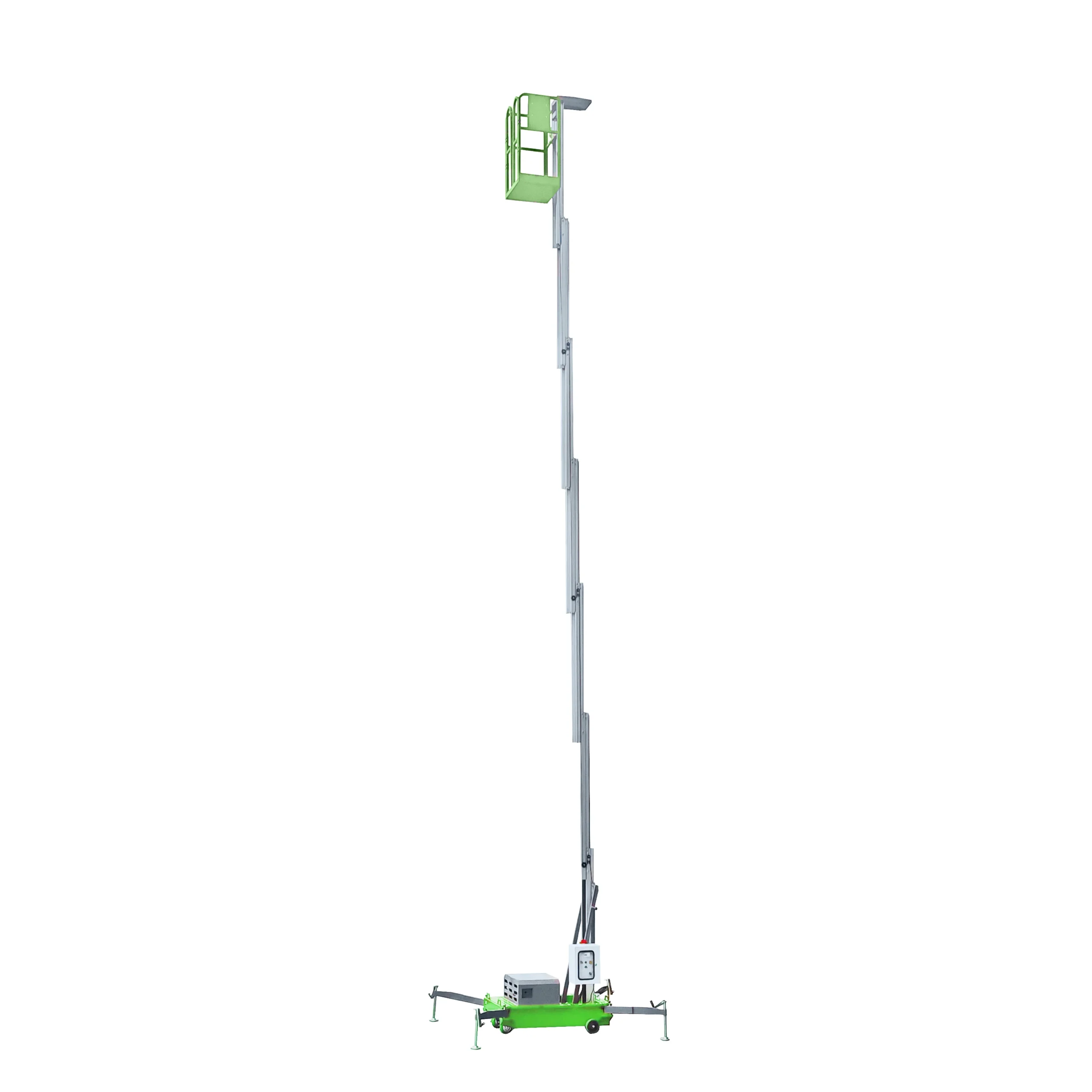

ME Series Single Mast Aluminum Aerial Work Platform — ME600-1
The ME600-1 delivers 8 m working height with 125 kg platform capacity on a 0.6×0.55 m platform. AC power (optional DC 24V/48V), screw type outriggers with 2.1×1.9 m footprint, swivel wheel with pedal lock, and spring mounted handle — the entry-level model in the ME single mast aluminum AWP range for indoor maintenance and facility management.
Description
Product Description
ME Series Single Mast Aluminum Aerial Work Platform — ME600-1
Overview
The Chenlift ME600-1 is a single mast aluminum aerial work platform designed for indoor maintenance and facility management applications. With 8 m working height and 125 kg platform capacity on a 0.6×0.55 m platform, the ME600-1 is the entry-level model in the ME single mast range. AC power supply (380V/220V/110V) with 0.75kw lifting motor is standard, with optional DC 24V or 48V power (0.80kw DC motor, 24V/103Ah battery, 24V/15A charger) for deployment without fixed power access. Screw type outriggers with 2.1×1.9 m footprint, swivel wheel with pedal lock, spring mounted handle, leveling indicator, short circuit and leakage protection system, auxiliary lowering device, and emergency stop button on both platform and ground are all standard.
ME600-1 Key Specifications
| Specification | ME600-1 |
|---|---|
| Lift Capacity | 125kg |
| Working Height Max | 8m |
| Platform Height Max | 6m |
| Stowed Length | 1.28m |
| Stowed Width | 0.84m |
| Stowed Height | 2m |
| Platform Size (L×W) | 0.6×0.55m |
| Outrigger Footprint | 2.1×1.9m |
| Ground Clearance | 0.05m |
| Lifting Motor (AC) | 0.75kw |
| Weight (AC) | 407kg |
| Weight (DC) | 482kg |
| DC Power Source | 24V/103Ah |
| DC Lifting Motor | 0.80kw |
| Charger | 24V/15A |
Standard Configurations
- AC Power Supply
- Auxiliary Lowering Device
- Emergency Stop Button both on Platform and Ground
- Anti-Dust Cover on Mast
- Screw Type Outriggers
- Short Circuit and Leakage Protection System
- Leveling Indicator
- Safety Belt Lock
- Swivel Wheel with Pedal Lock
- Spring Mounted Handle
Optional Configurations
- DC 24V or DC 48V or Manual Power
- DC Power with Voltage Meter, Battery Indicator and Hour Meter
- Flame Explosion-Proof System
- Stainless Steel Fence
- Motorized Device with Horn
- Anti-Collision Sensor
- Over Loading Sensor
- AC Power to Platform
- Air Tube to Platform
- Platform Working Light
- Outrigger Sensor
- Platform Positioning Laser Lights
- Manual Pump Power
- Horn on Platform
- Saloon-door Style Entry Gates / Top Open Door
Applicable Scenarios
Indoor Maintenance · Facility Management · Warehouse & Logistics · Retail & Commercial · Light Construction · Airport & Station
