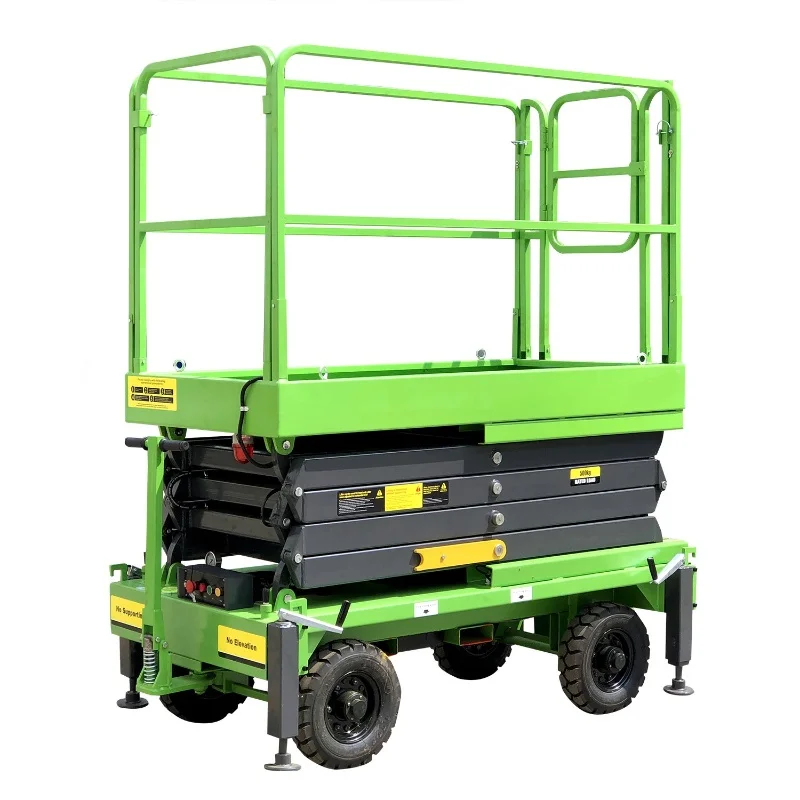

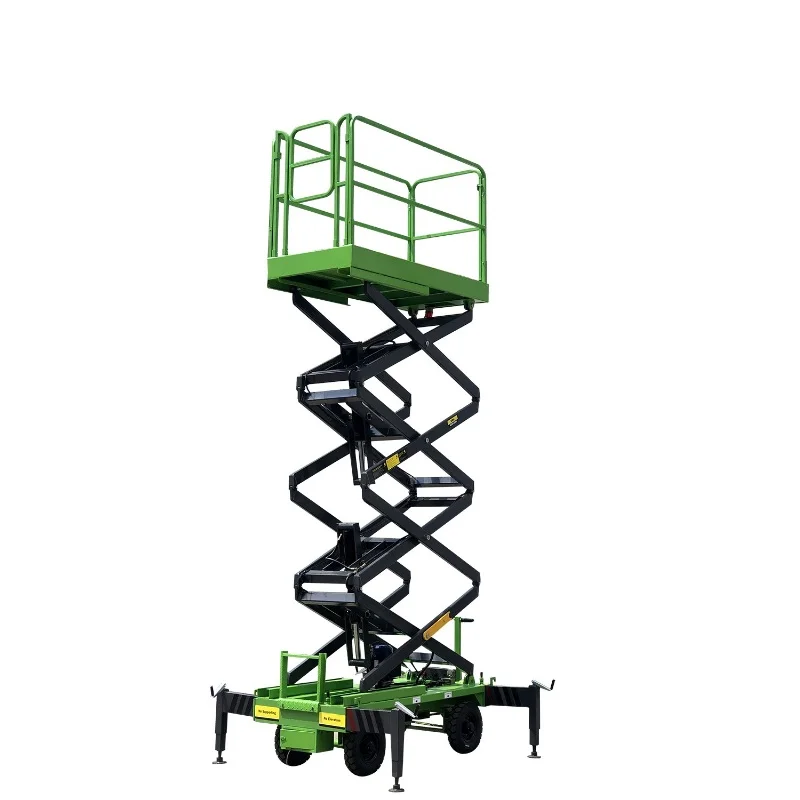

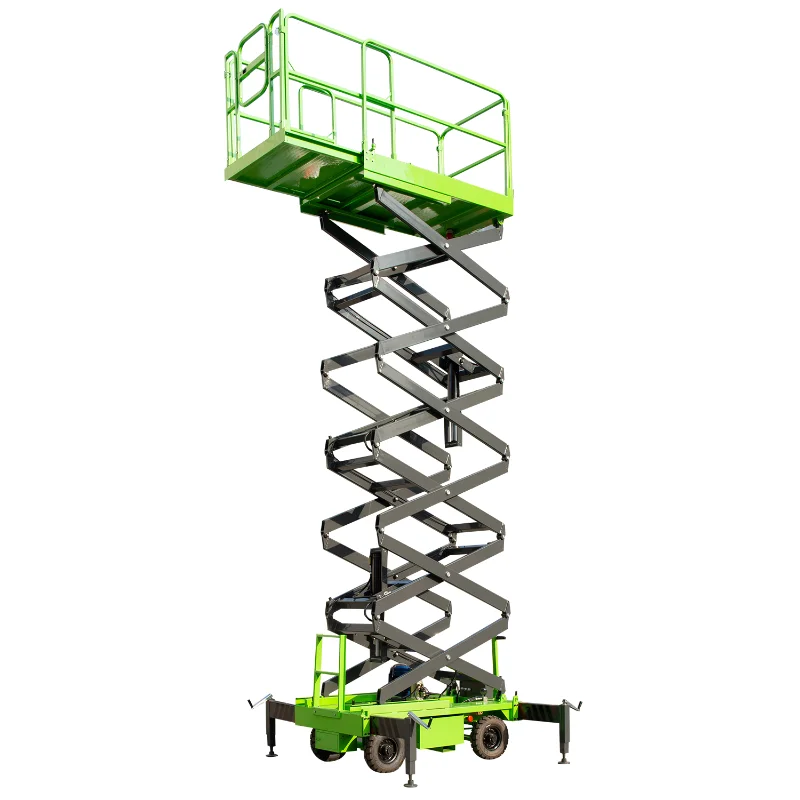

MK Series Heavy Load Manual Pushing Scissor Lift — MK900T
The MK900T reaches 11 m working height with a heavy-duty 1000 kg platform capacity on a 1.80×1.25 m platform. AC380V powered with solid φ400-8 tyres, detachable outriggers, and optional motorized DC drive with 150Ah battery — built for demanding high-reach heavy industrial and equipment installation applications.
Description
Product Description
MK Series Heavy Load Manual Pushing Scissor Lift — MK900T
Overview
The Chenlift MK900T is a heavy load manual pushing scissor lift reaching 11 m working height with 1000 kg platform capacity on a 1.80×1.25 m platform. Powered by AC380V with a 3kw motor and solid φ400-8 tyres, the MK900T is engineered for demanding heavy industrial maintenance, equipment installation, and high-reach loading applications where both substantial height and high load capacity are required simultaneously. Detachable outriggers, leveling indicator, and removable platform control with deadman switch are standard. An optional motorized DC drive with 2×12V/150Ah battery and 24V/20A charger is available.
MK900T Key Specifications
| Specification | MK900T |
|---|---|
| Platform Capacity | 1000kg |
| Working Height Max ❶ | 11m |
| Platform Height Max ❷ | 9m |
| Platform Size (L×W) | 1.80×1.25m |
| Overall Length ❸ | 2.25m |
| Overall Width ❹ | 1.32m |
| Overall Height ❺ | 2.03m |
| Lifting Time | 100S |
| Motor Power | 3kw |
| Power Voltage | AC380V |
| Tyre | φ400-8 solid |
| Weight | 1700kg |
Optional Motorized DC Power
| Specification | MK900T DC Option |
|---|---|
| Driving Motor | 1.2kw |
| Lifting Motor | 2.5kw |
| Power Source | 2×12V/150Ah |
| Charger | 24V/20A |
| Overall Size (L×W×H) | 2.35×1.32×2.03m |
Standard Configurations
- Platform and Ground Control
- Auxiliary Lowering Device
- Detachable Outriggers
- Leveling Indicator
- Emergency Stop Button both on Platform and Ground
- AC Power Supply — 380V
- Removable Platform Control with Deadman Switch
- Cylinder Holding Valve
- Foldable / Detachable Fence
- Forklift Slot
- Pressure Gauge
- Safety Belt Lock
- Spring Mounted Handle
Optional Configurations
- Lifting Hook
- Motorized Device with Horn
- Solid Tire
- Extension Platform
- Anti-burst Valve on Cylinder
- DC Power or AC & DC Power
- DC Power with Battery Indicator & Hour Meter
- Maintenance Supporting Bar
- Anti-Collision Sensor
- Outrigger Sensor
- Over Loading Protection
- Platform Positioning Laser Lights
Applicable Scenarios
Heavy Industrial Maintenance · Equipment Installation · Loading & Unloading · Warehouse & Logistics · Manufacturing Facilities · Infrastructure Projects
