MK Series Manual Pushing Scissor Lift — MK750
The MK750 delivers 9.5 m working height with 500 kg platform capacity on a 1.8×1.00 m platform. AC380V powered with detachable outriggers, leveling indicator, and optional motorized DC drive — suited for industrial maintenance and facility management applications requiring greater working height.
Description
Product Description

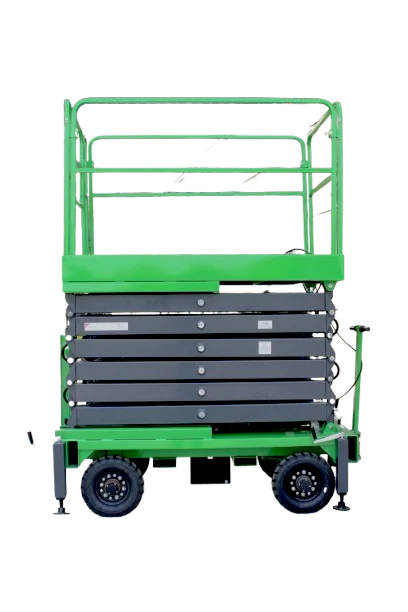

MK Series Manual Pushing Scissor Lift — MK750
Overview
The Chenlift MK750 is a manual pushing scissor lift offering 9.5 m working height and 500 kg platform capacity on a 1.8×1.00 m platform. Powered by AC380V with a 2.2kw motor, the MK750 features detachable outriggers for stability, a leveling indicator, and a removable platform control with deadman switch. The φ400-8 pneumatic tyres allow the unit to be repositioned on site as needed. An optional motorized DC drive package with 2×12V/100Ah battery is available for flexible deployment without fixed AC power.
MK750 Key Specifications
| Specification | MK750 |
|---|---|
| Platform Capacity | 500kg |
| Working Height Max ❶ | 9.5m |
| Platform Height Max ❷ | 7.5m |
| Platform Size (L×W) | 1.8×1.00m |
| Overall Length ❸ | 2.24m |
| Overall Width ❹ | 1.14m |
| Overall Height ❺ | 2.55m |
| Lifting Time | 60S |
| Motor Power | 2.2kw |
| Power Voltage | AC380V |
| Tyre | φ400-8 pneumatic |
| Weight | 1350kg |
Optional Motorized DC Power
| Specification | MK750 DC Option |
|---|---|
| Driving Motor | 0.75kw |
| Lifting Motor | 2.2kw |
| Power Source | 2×12V/100Ah |
| Charger | 24V/15A |
| Overall Size (L×W×H) | 2.54×1.14×2.55m |
Standard Configurations
- Platform and Ground Control
- Auxiliary Lowering Device
- Detachable Outriggers
- Leveling Indicator
- Emergency Stop Button both on Platform and Ground
- AC Power Supply — 380V
- Removable Platform Control with Deadman Switch
- Cylinder Holding Valve
- Foldable / Detachable Fence
- Forklift Slot
- Pressure Gauge
- Safety Belt Lock
- Spring Mounted Handle
Optional Configurations
- Lifting Hook
- Motorized Device with Horn
- Solid Tire
- Extension Platform
- Anti-burst Valve on Cylinder
- DC Power or AC & DC Power
- DC Power with Battery Indicator & Hour Meter
- Maintenance Supporting Bar
- Anti-Collision Sensor
- Outrigger Sensor
- Over Loading Protection
- Platform Positioning Laser Lights
Applicable Scenarios
Warehouse & Logistics · Industrial Maintenance · Facility Management · Construction Sites · Loading & Unloading · Equipment Installation
