MF Series Portable Forklift — MF320
The MF320 is the lightest model in the MF Series at just 95 kg, delivering 320 kg capacity with 1450 mm lifting height. 48V/10Ah lithium battery, 400W DC motor, hand brake, fork adjustable ±5cm — the most portable compact electric forklift in the range for loading dock and narrow-space operations.
Description
Overview
MF Series Portable Forklift — MF320

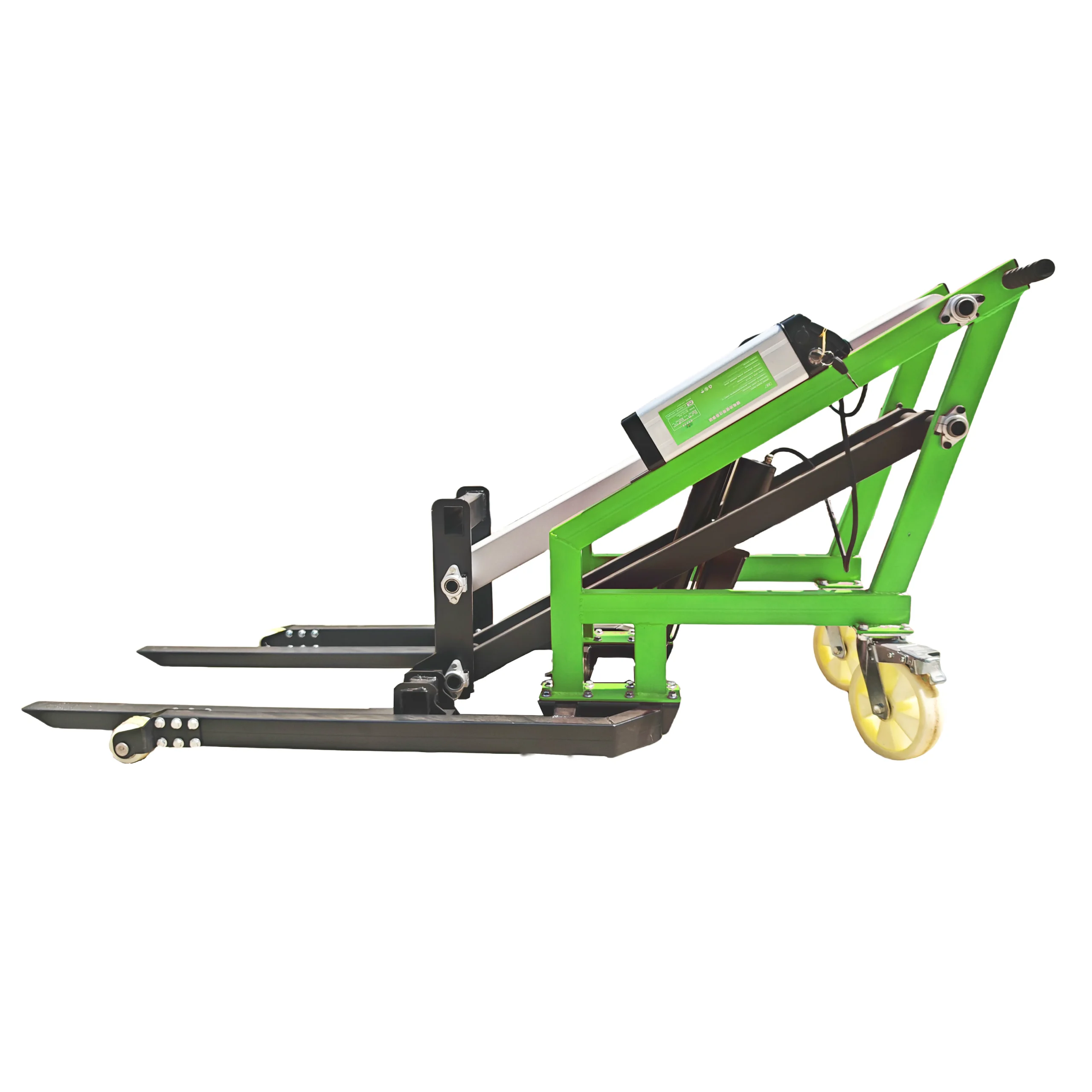

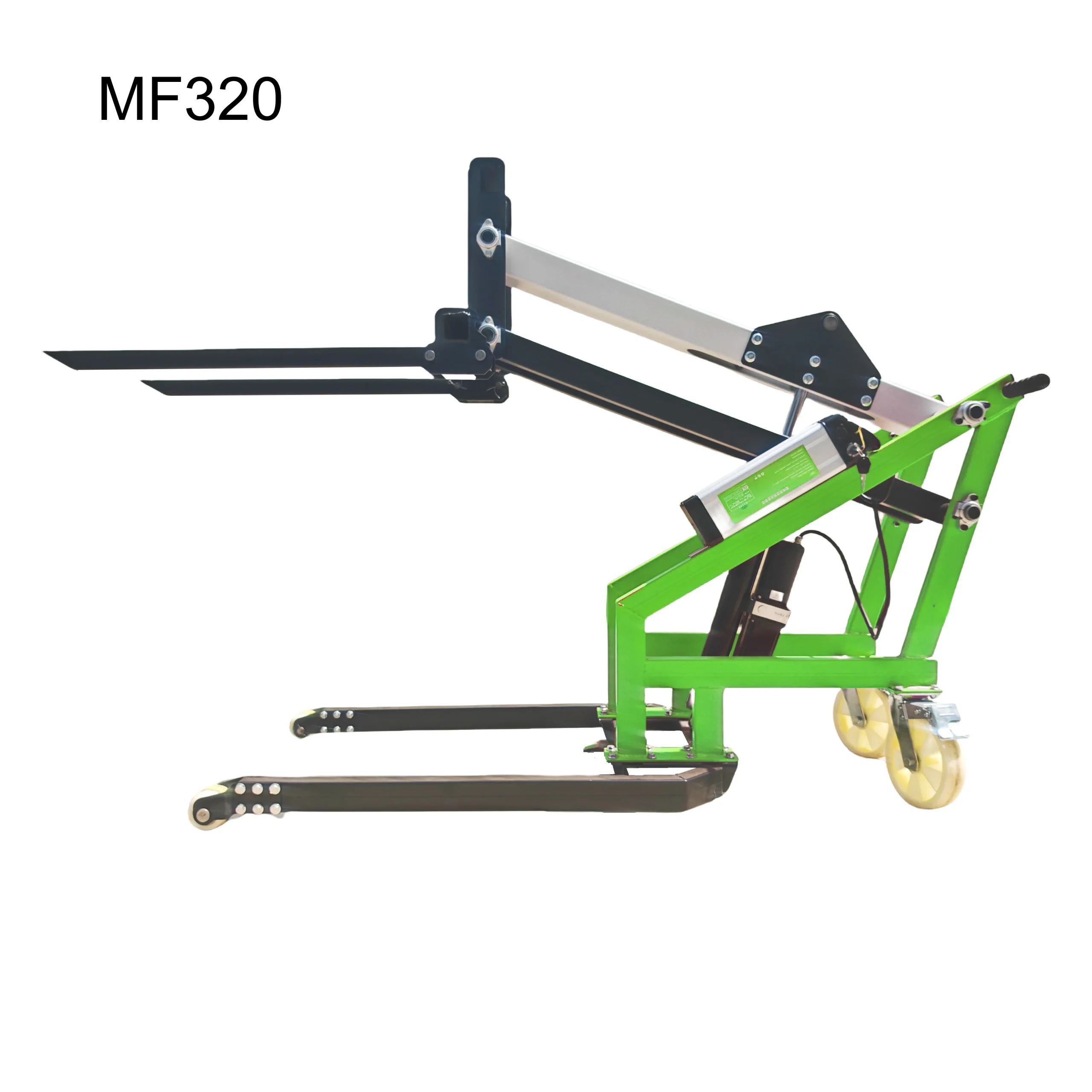

The Chenlift MF320 is the lightest and most compact model in the MF Series portable forklift range, delivering 320 kg capacity with 1450 mm lifting height at just 95 kg machine weight — light enough for one person to position and transport. With a 1760×760×900 mm overall footprint, the MF320 is suited for narrow loading docks, small warehouses, and single-side pallet operations where conventional forklifts cannot maneuver. The 7074 stainless steel lifting arm with mortise and tenon welded frame provides reliable long-term structural integrity, while the modular construction allows any part to be disassembled for maintenance. Fork adjustable ±5cm on both sides, supporting fixtures (fork, barrel jig, lifting hook) interchangeable. Powered by a 48V/10Ah lithium battery with 400W DC motor and hand brake. CE certified.
MF320 Key Specifications
| Specification | MF320 |
|---|---|
| Capacity | 320kg |
| Lifting Height | 1450mm |
| Overall Size (L×W×H) | 1760×760×900mm |
| Motor Power | 400W |
| Battery | 48V/10Ah |
| Braking Method | Hand Brake |
| Motor Type | DC |
| Fork | Iron tube 760×100×80mm |
| Supporting Fixtures | Fork / Barrel Jig / Lifting Hook |
| Machine Weight | 95kg |
Product Features
Smaller Turning Radius, Suitable for Narrow Spaces, Lighter Weight and Easier Operation, Maintenance-Free Integrated Hydraulic Cylinder, Large Capacity Lithium Battery with Easily Replace Design, Suitable for Single Side Pallet, More Reliable Stainless Steel Arm Structure
Customizable Options
Color, Fork, Battery, Addition of Lamps, Increased Tyre Diameter to 400mm
Applicable Scenarios
Loading Dock Operations · Narrow Space Handling · Single Side Pallet · Small Warehouse · Van Loading & Unloading · Compact Material Handling
