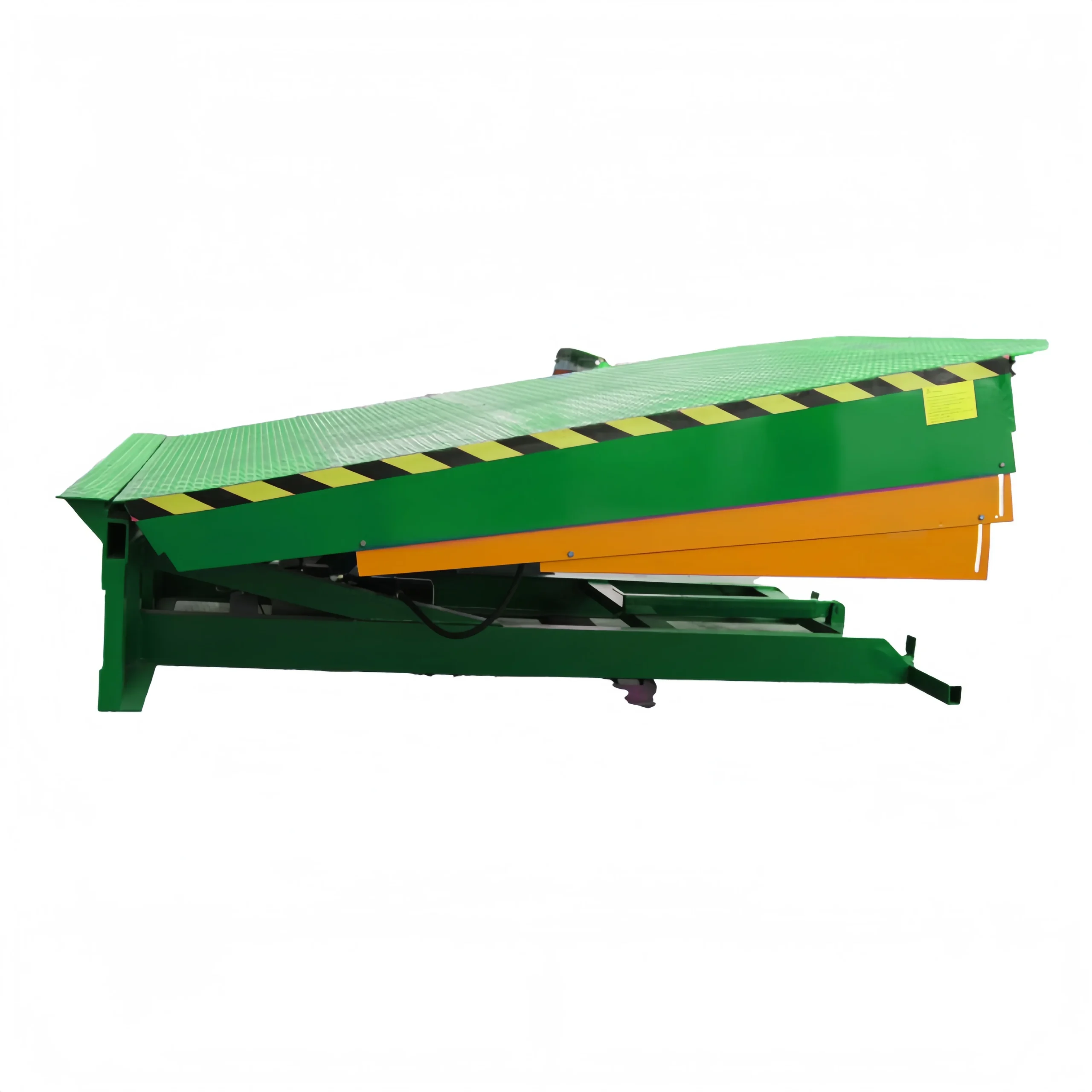

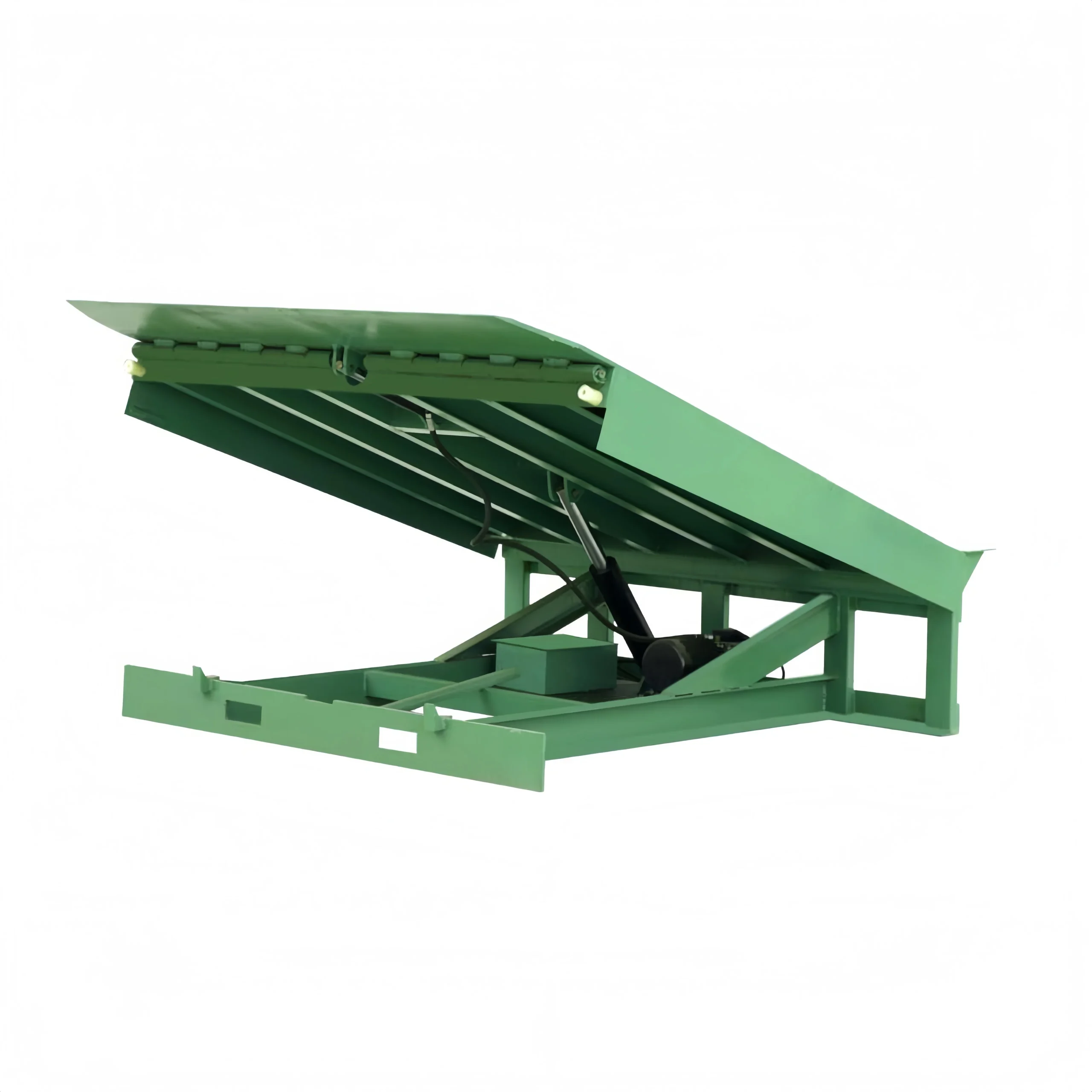

DCQ Series Stationary Dock Leveler — DCQ10-0.5
The DCQ10-0.5 steps up to 10000 kg loading capacity on a 2000×2000 mm platform. ±250mm travel, 400mm lip, AC380V / 0.75kw — the entry-level 10t model in the DCQ Series for heavier-duty loading dock operations.
Description
Overview
DCQ Series Stationary Dock Leveler — DCQ10-0.5
The Chenlift DCQ10-0.5 is a heavy-duty pit-installed hydraulic stationary dock leveler delivering 10000 kg loading capacity on a 2000×2000 mm platform — a direct step up in load rating from the 6t DCQ6 models. With ±250mm travel range and 400mm lip, the DCQ10-0.5 handles heavier forklift loads and high-frequency loading dock operations in manufacturing, industrial, and logistics facilities. Powered by AC380V with a 0.75kw motor, with rubber bumpers, high-intensity U-shaped beam structure, upside-down hydraulic cylinder, non-slip tread plate, maintenance supporting bar, and integrated circuit as standard.
DCQ10-0.5 Key Specifications
| Specification | DCQ10-0.5 |
|---|---|
| Loading Capacity | 10000kg |
| Platform Size (L×W) | 2000×2000mm |
| Lip Length A | 400mm |
| Travel | ±250mm |
| Motor Power | 0.75kw |
| Power Voltage | AC380V |
| Weight | 860kg |
Standard Configurations
Rubber Bumpers, Maintenance Supporting Bar, High-intensity “U”-shaped Beam Design, Non-slip Tread Plate, Upside-down Hydraulic Cylinder, Integrated Circuit
Applicable Scenarios
Warehouse & Logistics · Manufacturing Facilities · Heavy Industrial Loading · Distribution Hubs · Cold Chain & Food Processing · Loading Dock Operations
