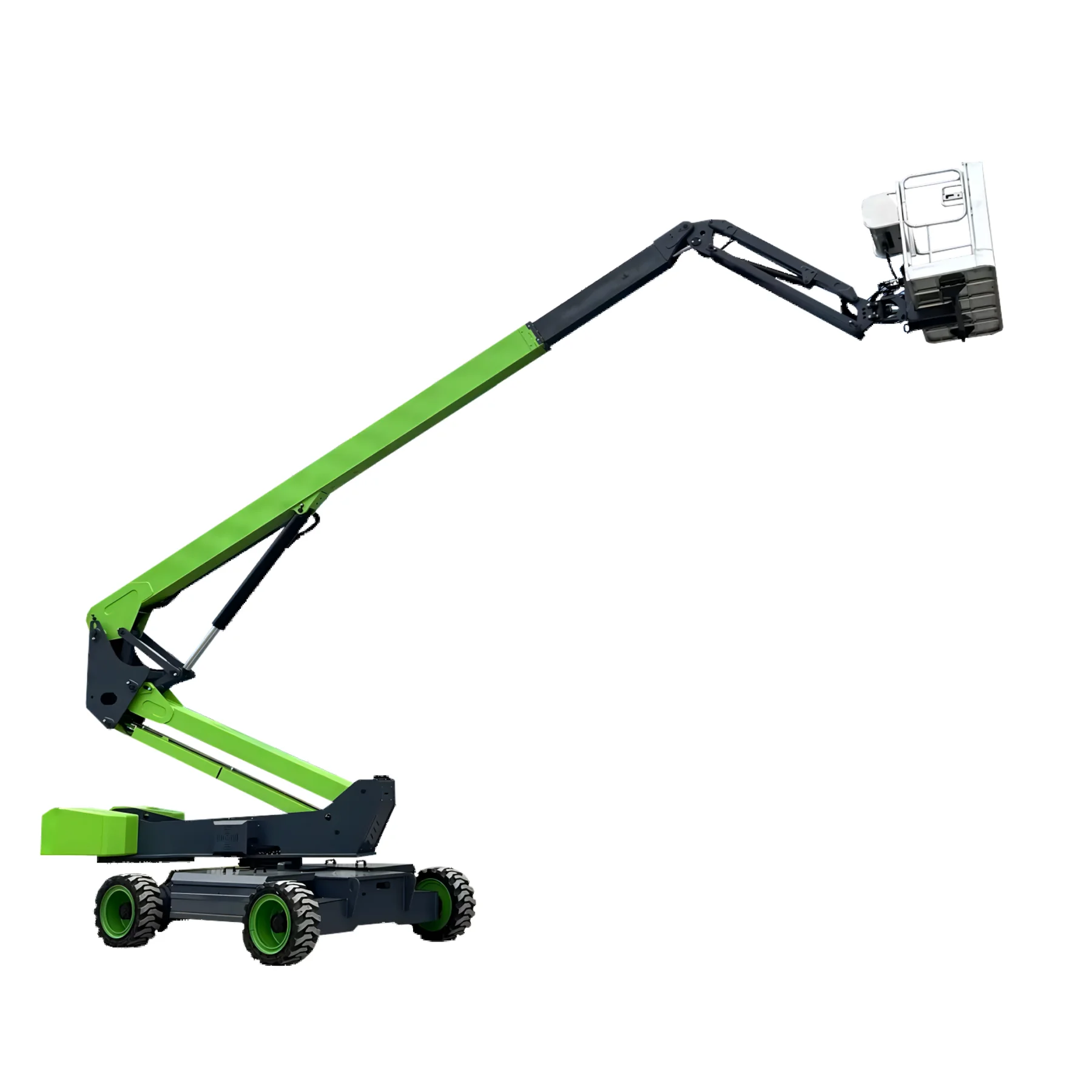

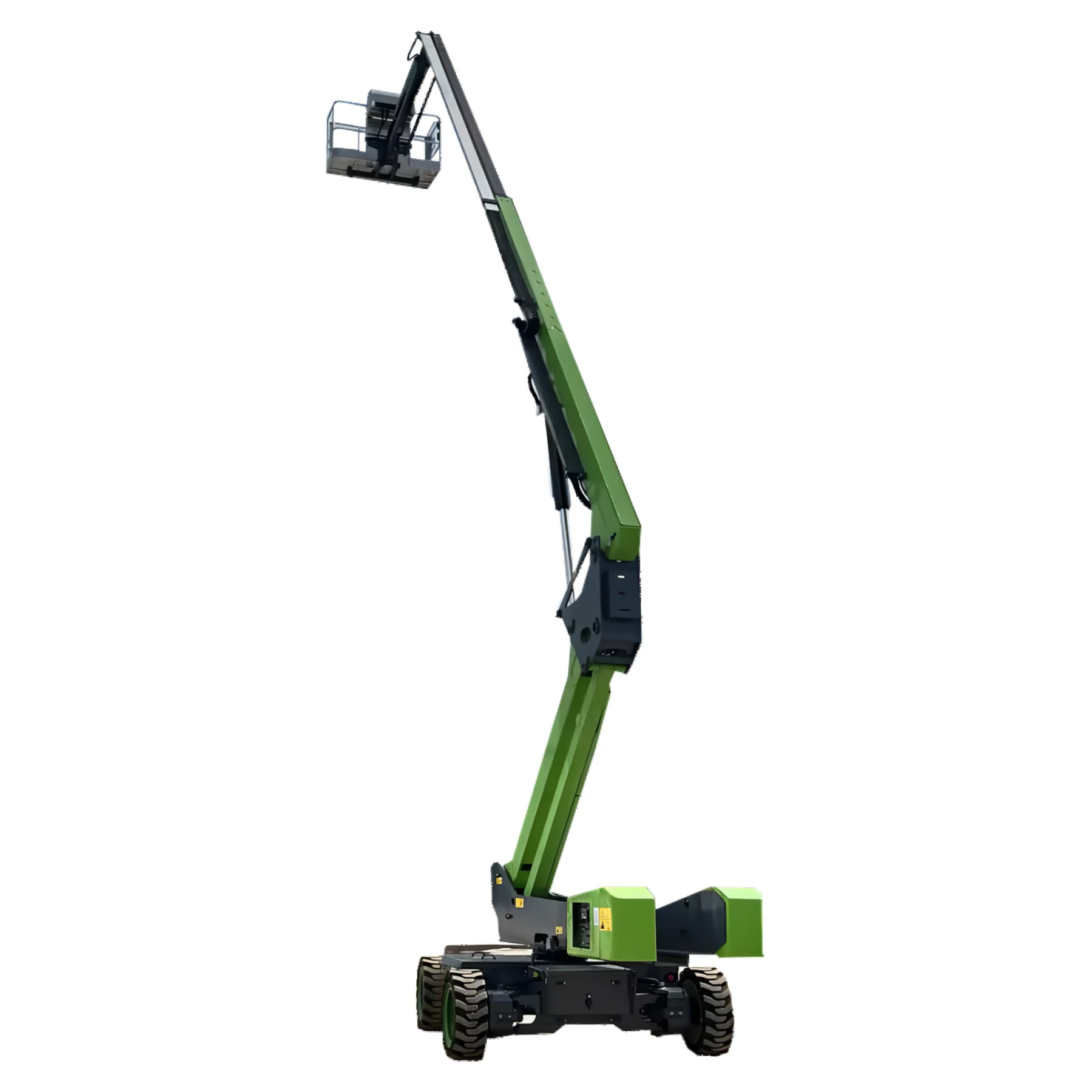

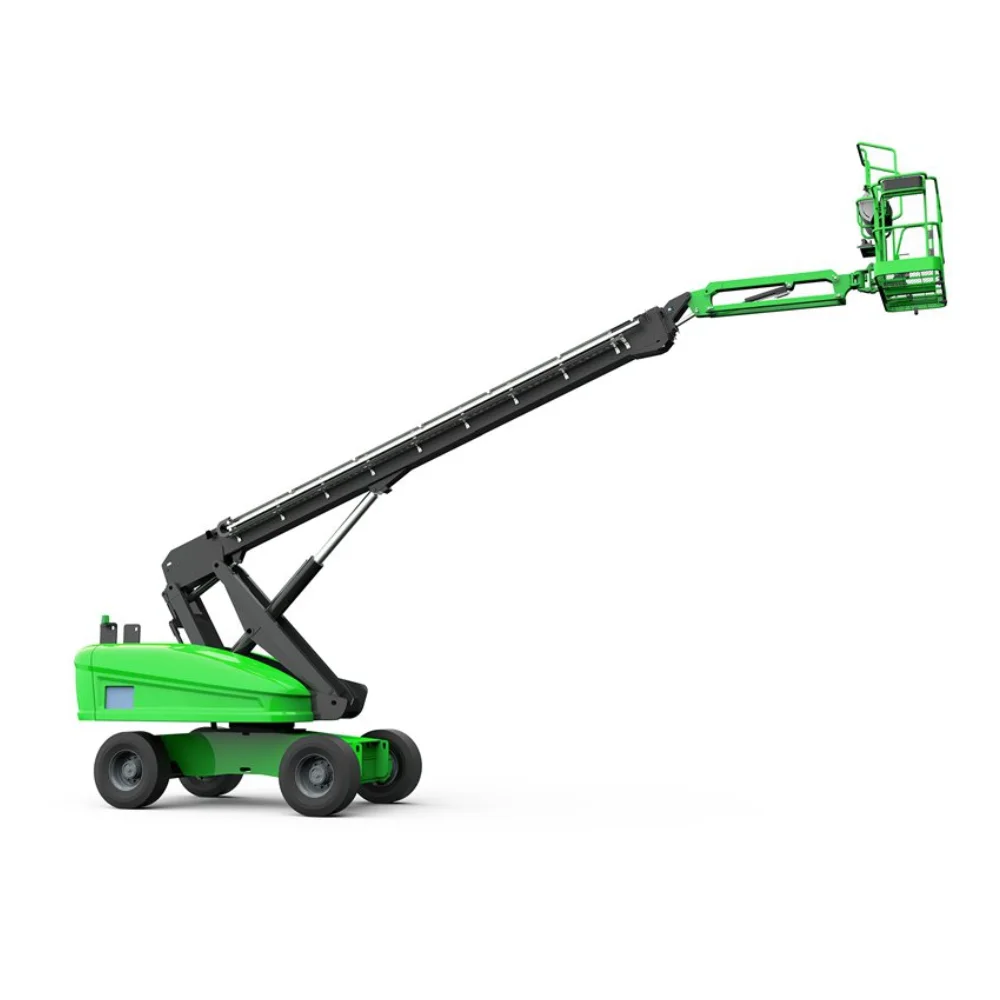

HTJ Series Diesel Telescopic Boom Lift — HT20J Diesel
The HT20J Diesel reaches 22 m working height with 230 kg load capacity on a 1.83×0.76 m platform. Kubota diesel engine, 4×4×2 drive, 360° continuous turntable rotation, proportional joystick controls, and 45% gradeability — for large-scale outdoor construction and infrastructure applications.
Description
Product Description
HTJ Series Diesel Telescopic Boom Lift — HT20J Diesel
Overview
The Chenlift HT20J Diesel is a telescopic boom lift delivering 22 m working height with 230 kg load capacity on a 1.83×0.76 m platform. Powered by a Kubota diesel engine with 100L fuel tank and 4×4×2 drive — stepping up to full four-wheel drive and steer compared to the HT18J — the HT20J Diesel features 360° continuous turntable rotation, ±90° platform rotation, automatic platform leveling, proportional joystick controls, active defense system, and emergency power unit as standard. At 9500 kg machine weight with 8.54 m stowed length, 2.38 m stowed width, and 33×12-20 solid tyres, it delivers reliable high-reach access at 45% gradeability with 5.66 m outside turning radius for demanding outdoor construction and infrastructure applications.
HT20J Diesel Key Specifications
| Specification | HT20J Diesel |
|---|---|
| Working Height Maximum | 22m |
| Platform Height Maximum | 20m |
| Working Radius | 12m |
| Maximum Lift Capacity | 230kg |
| Crossing Height | 9.4m |
| Length (Stowed) | 8.54m |
| Width (Stowed) | 2.38m |
| Height (Stowed) | 2.55m |
| Wheel Base | 2.4m |
| Ground Clearance | 0.4m |
| Platform Size | 1.83×0.76m |
| Turning Radius (Inside) | 2.66m |
| Turning Radius (Outside) | 5.66m |
| Drive Speed (Stowed) | 4.2km/h |
| Drive Speed (Raised) | 1.1km/h |
| Grade Ability | 45% |
| Solid Tire | 33×12-20 |
| Turntable Swing | 360° Continuous |
| Platform Leveling | Automatic Leveling |
| Platform Rotation | ±90° |
| Fuel Tank Capacity | 100L |
| Weight | 9500kg |
| Control Voltage | 12V DC |
| Drive & Steering Mode | 4×4×2 |
| Engine | Kubota |
Standard Configurations
- Descent & Movement Alarms
- Tilt Alarm
- Horn
- Overload Alarm
- Motor Overload Protection
- Platform and Ground Emergency Stop
- Emergency Power Unit
- Four-Wheel Brake System
- Axle Balance
- Automatic Leveling of Platform
- Proportional Joystick Controls
- Drive Enable
- Hour Meter
- 360° Turntable Continuous Rotation
- Positive Traction Four Wheel Drive
- Telematics Pre-interface
- Active Defense System
- Max Gradeability: 45%
- Boom Self-Weight Lowering System
- Solid Trace-Less Tire
Optional Configurations
- Power Plus Extender
- Insulated Working Platform
Applicable Scenarios
Construction Sites · Infrastructure Projects · Outdoor Maintenance · Bridge & Overpass · Industrial Facilities · Airport & Logistics
