Description

Overview

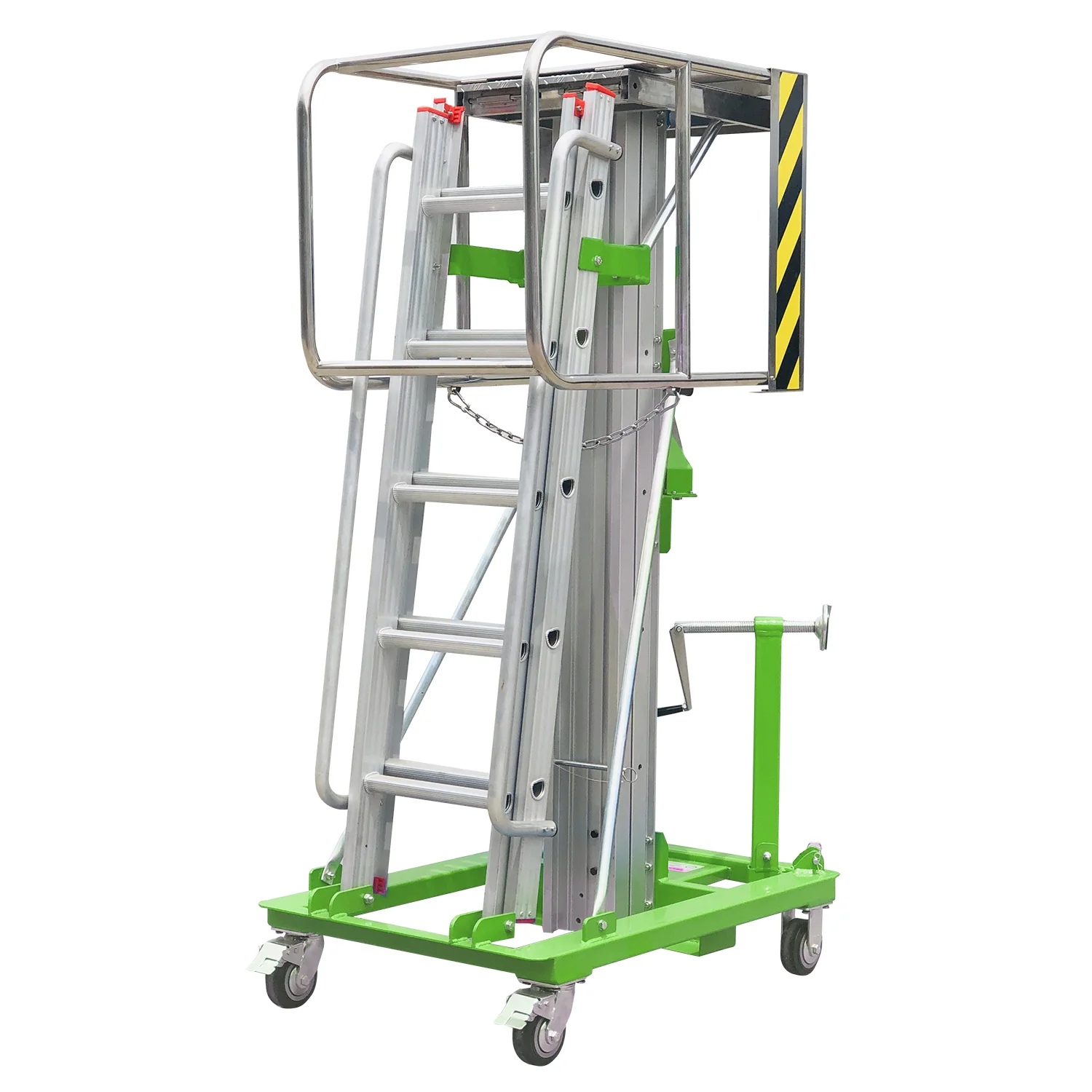

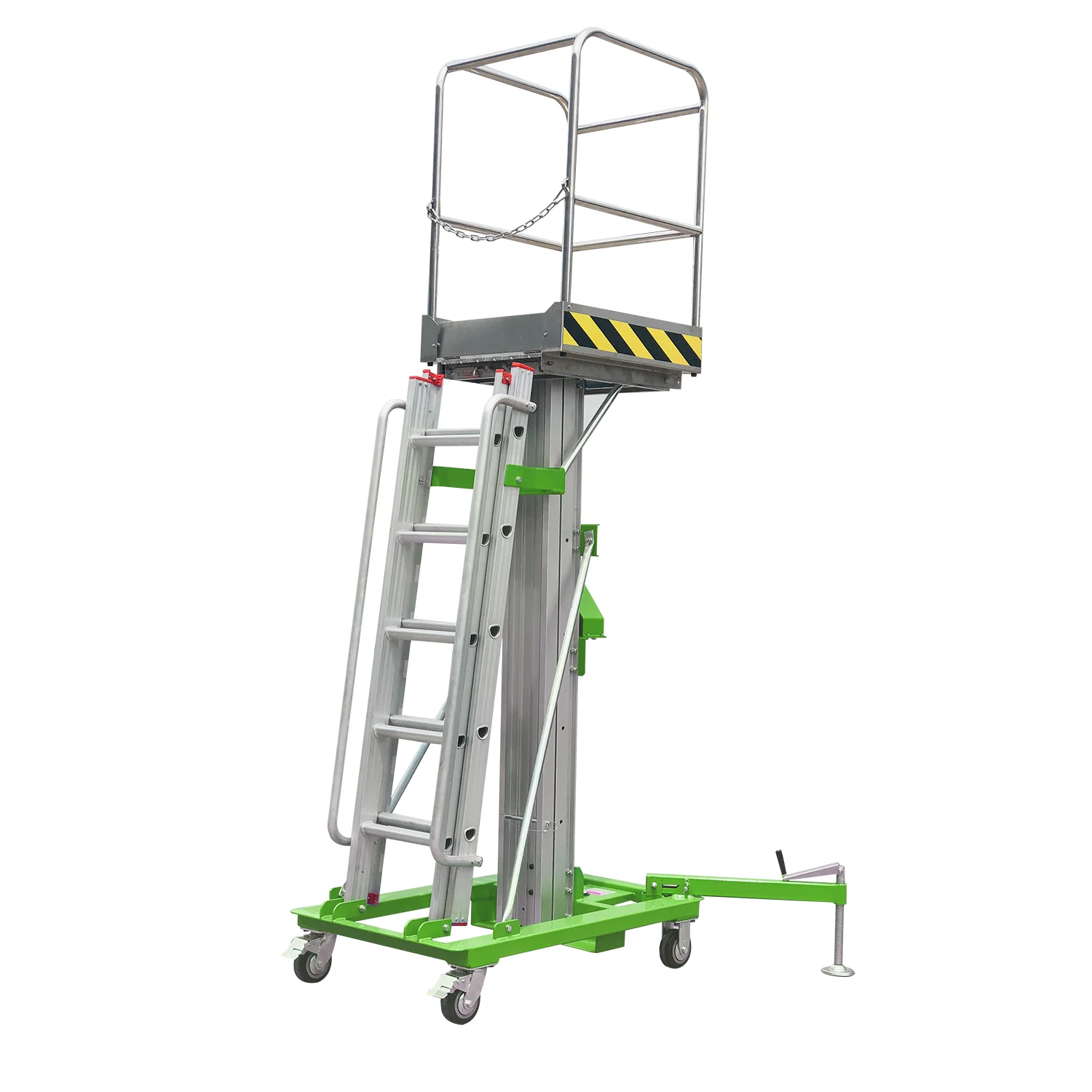

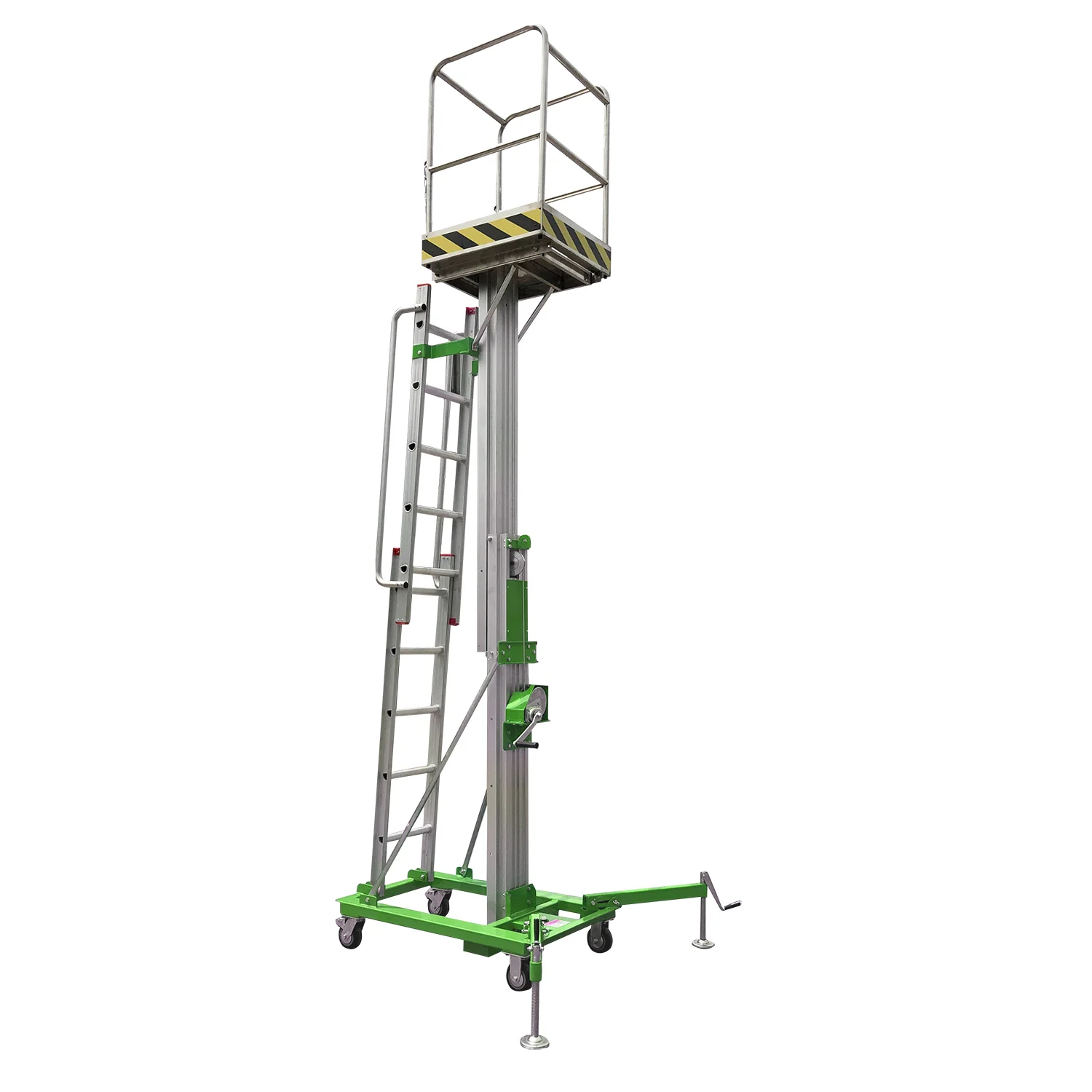

SP Series Manual Winch Elevating Lift — SP-32

The Chenlift SP-32 is the mid-range model in the SP Series manual winch elevating lift range, delivering 3200 mm maximum platform height and 4700 mm maximum working height — extending 700 mm above the SP-25’s reach for operations above standard single-storey ceiling heights. At 130 kg unit weight with a 1250 mm stowed length, 750 mm stowed width, and 1980 mm stowed height, the SP-32 is only marginally larger and heavier than the SP-25 while gaining significantly more reach. The 600×550 mm platform with anti-skid surface is accessed via the anti-skid ladder and enclosed by hand rails with toe boards. Winch lift, safety outriggers, and lockable wheels are standard. Fluorescent tube caddy and hinged tool tray are included. Fully manual with no power supply required — suited for HVAC and ductwork at ceiling level, lighting maintenance in commercial spaces, and elevated inspection tasks on sites without electrical infrastructure. CE certified.

SP-32 Key Specifications

Standard Configurations

Winch Lift, Anti-skid Ladder, Anti-Skid Platform, Hand Rails with Toe Boards, Safety Outriggers, Lockable Wheels, Fluorescent Tube Caddy, Hinged Tool Tray

Applicable Scenarios

HVAC Installation · Lighting & Tube Maintenance · Facility Inspection · Building Maintenance · Commercial Ceiling Work · Off-Grid Sites
