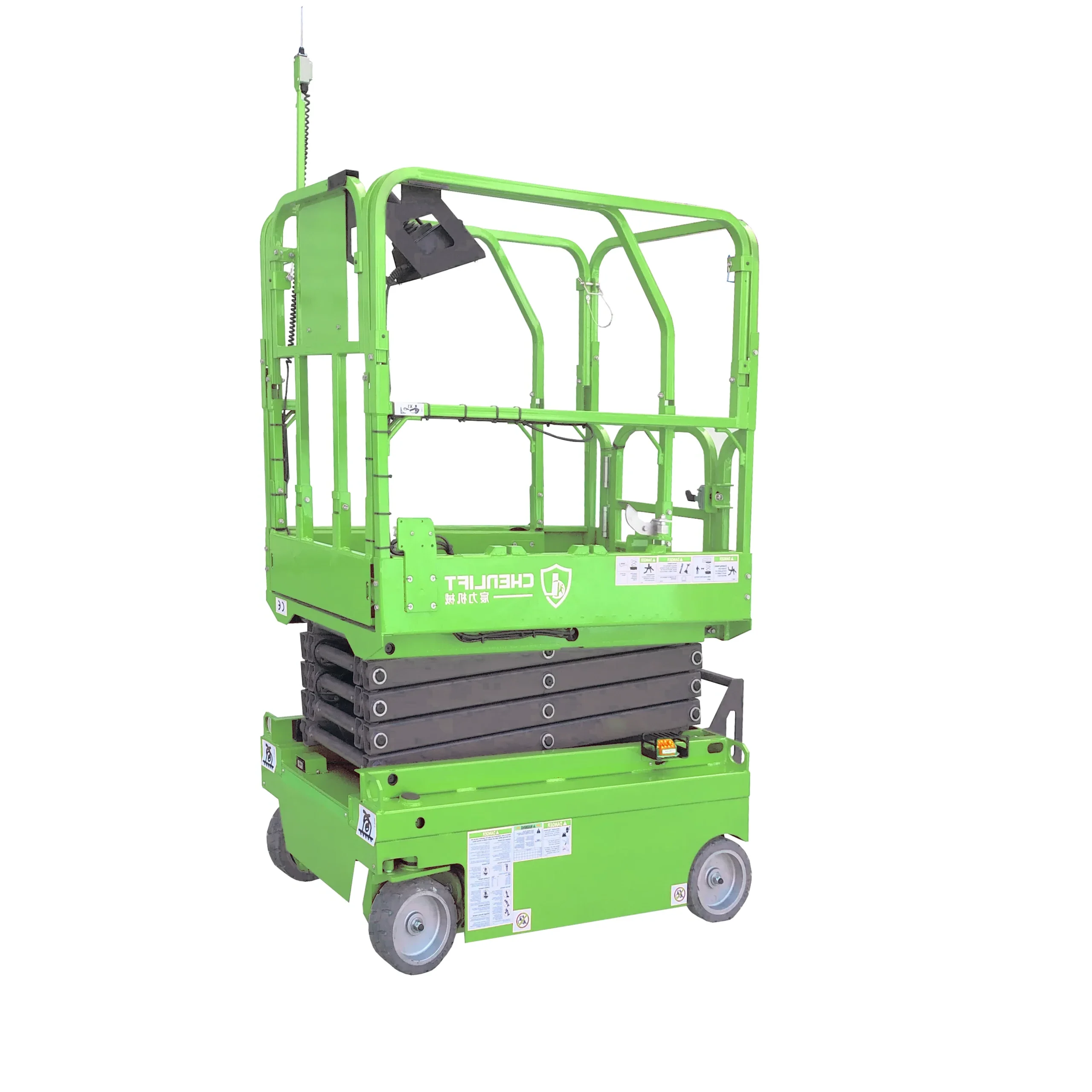

MX Mini Self-Propelled Scissor Lift — MX450S
The MX450S is the tallest model in the MX Mini series, reaching 6.50 m working height with a 240 kg platform capacity — all within a 0.76 m wide footprint. Hydraulic turning wheel and drivable at full height for efficient repositioning without lowering the platform.
Description
Product Description
MX Mini Self-Propelled Scissor Lift — MX450S
Overview The Chenlift MX450S is the highest-reaching model in the MX Mini scissor lift series, providing a 6.50 m working height with the same 0.76 m compact width as the rest of the range. Hydraulic turning wheel, non-marking tyres, and foldable guardrails make it a versatile solution for indoor access in warehouses, supermarkets, and commercial facilities.
Key Specifications
| Specification | MX450S |
|---|---|
| Platform Capacity | 240 kg |
| Working Height Max | 6.50 m |
| Platform Height Max | 4.40 m |
| Platform Size (L×W) | 1.28 × 0.76 m |
| Overall Length | 1.49 m |
| Overall Width | 0.76 m |
| Overall Height (Rails up) | 2.03 m |
| Overall Height (Rails down) | 1.59 m |
| Extension Length | 0.55 m |
| Extension Capacity | 100 kg |
| Raise / Lower Time | 23 / 19 sec |
| Ground Clearance | 0.06 m |
| Turning Radius (inside) | 0.35 m |
| Maximum Working Slope | 3° / 1.5° |
| Driving Wheel Size | φ0.23 × 0.08 m |
| Gradeability | 25% |
| Wheelbase | 1.05 m |
| Drive Speed (Stowed) | 3 km/h |
| Drive Speed (Raised) | 0.70 km/h |
| Power Source | 2 × 12V / 114Ah |
| Lifting Motor | 24V / 0.80 kw |
| Charger | 96–265V / 15A |
| Weight | 920 kg |
Standard Configurations
- Proportional Control
- Drivable at Full Height
- Maintenance Supporting Bar
- Auxiliary Lowering Device
- Automatic Brake System
- Emergency Stop Button both on Platform and Ground
- Fault Diagnosis System
- Forklift Slot
- Safety Belt Lock
Optional Configurations
- Strobe Light
- Extension Platform
- Anti-Collision Sensor
- Over Loading Sensor
- AC Power to Platform
- Air Tube to Platform
- Platform Positioning Laser Lights
- Heavy Duty Pipe Rack
Applicable Scenarios Warehouse & Supermarket · Narrow Aisle Access · Indoor Maintenance · Retail & Commercial · Facility Management · Light Construction
