CTZ Series Towable Articulating Boom Lift — CTZD14 Diesel
The CTZD14 is the diesel model in the CTZ Series, delivering 16 m maximum working height with an exceptional 12.7 m working radius and 5 m height at maximum radius. 200 kg platform, 360° rotation, 1.1L diesel engine, outrigger stabilized — the high-reach towable boom lift for off-grid sites requiring large horizontal outreach.
Description
Overview
CTZ Series Towable Articulating Boom Lift — CTZD14 Diesel

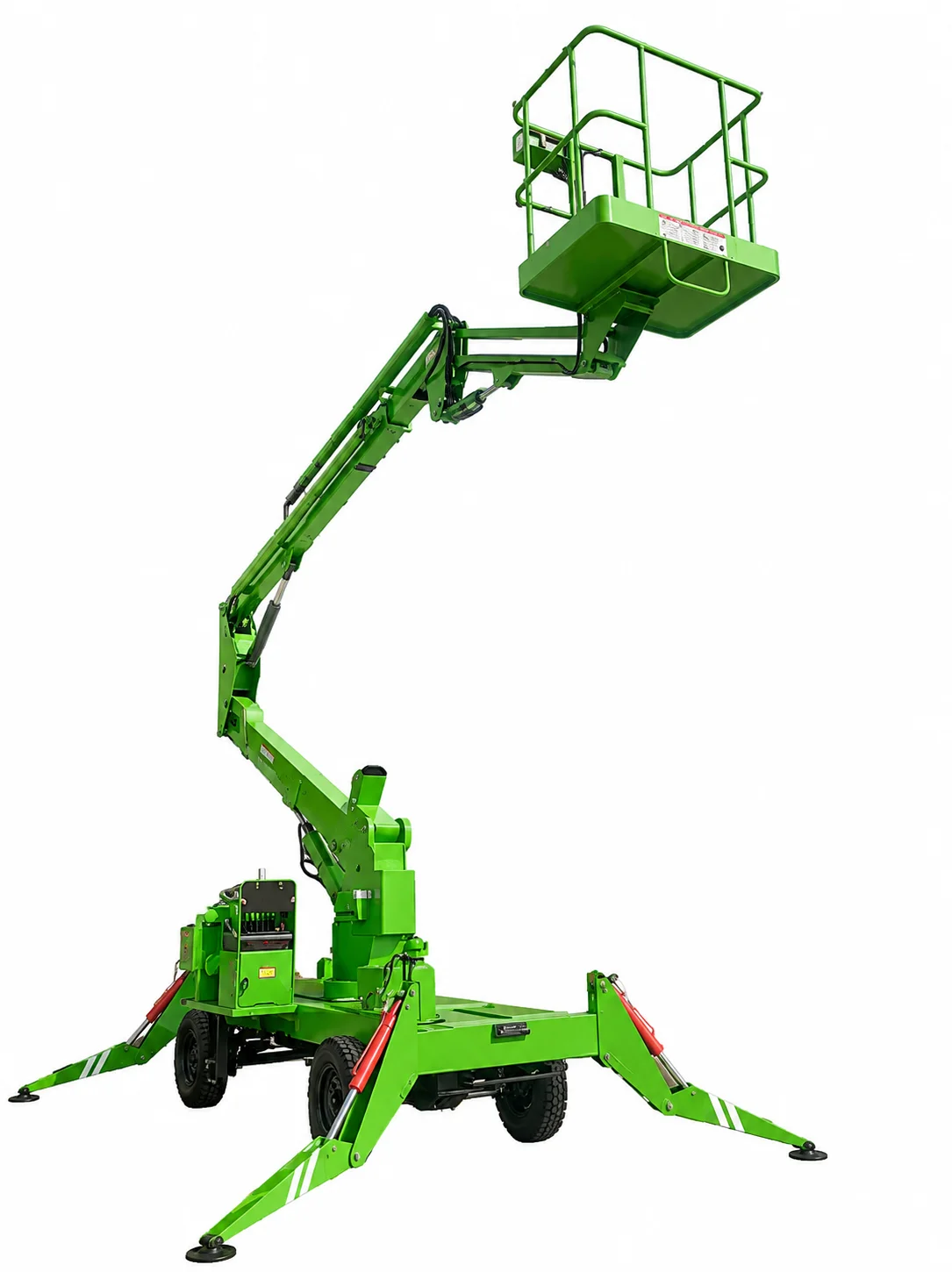

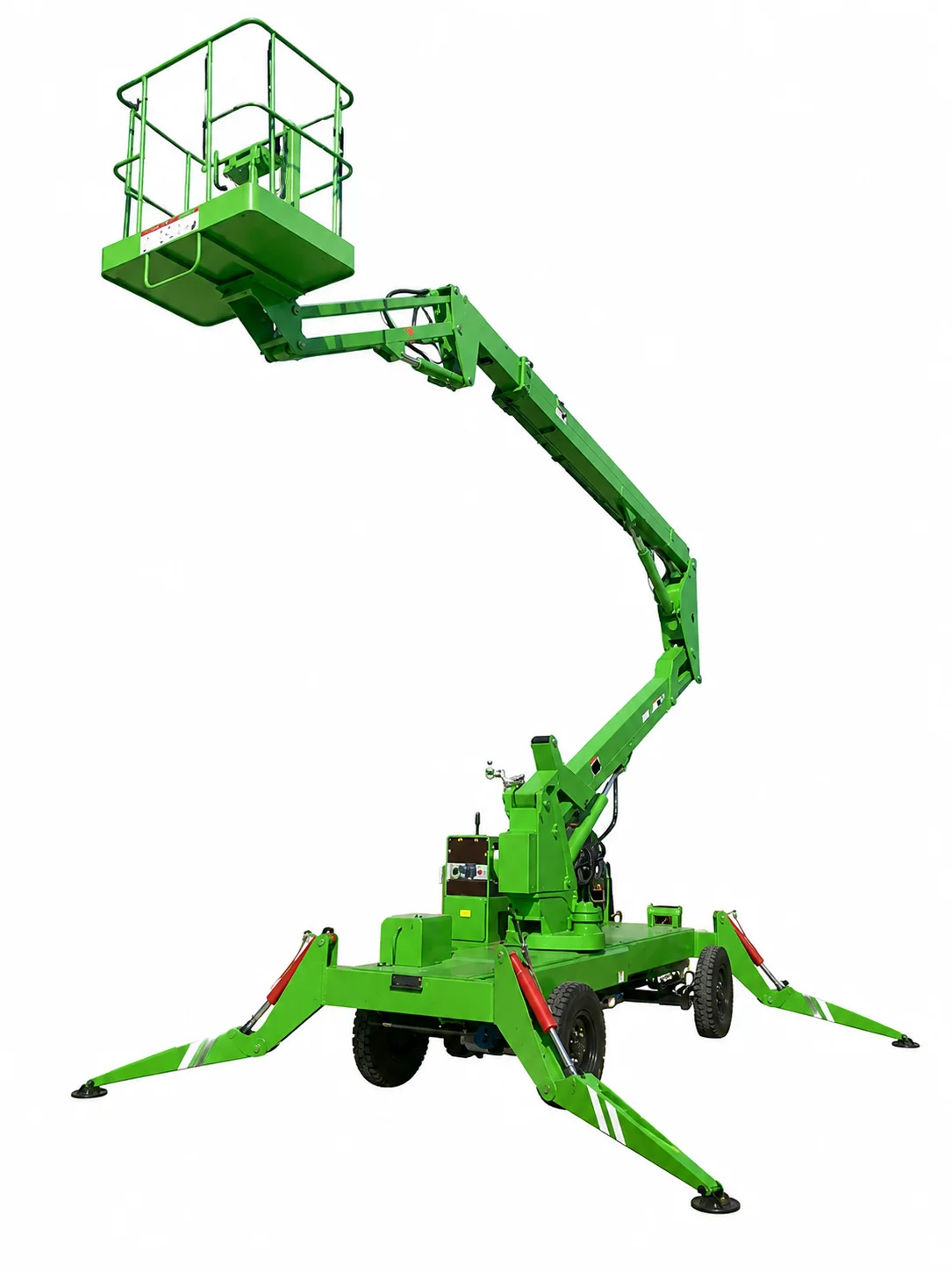

The Chenlift CTZD14 is the diesel model in the CTZ Series towable articulating boom lift range, engineered for large horizontal outreach on sites without fixed power. Delivering 16 m maximum working height with a 12.7 m working radius — substantially greater horizontal reach than comparable boom lifts — and maintaining 5 m height at maximum radius, the CTZD14 excels at reaching up and over obstacles, structures, and equipment. With 14 m maximum lifting height, 200 kg platform load, and 360° rotation, it is stabilized on outriggers during operation and towable between job sites at 10–20 km/h. Powered by a 1.1L diesel engine with an 80AH 6-QA-80 battery, at 3500 kg total weight, the CTZD14 features equal proportion automatic leveling, proportional joystick controls, active defense system, and manual emergency recovery as standard — suited for facility maintenance, tree care, and over-obstacle access in remote outdoor locations.
CTZD14 Key Specifications
| Specification | CTZD14 |
|---|---|
| Max Working Height | 16m |
| Max Working Radius | 12.7m |
| Height at Max Radius | 5m |
| Max Lifting Height | 14m |
| Rotation Angle | 360° |
| Platform Load | 200kg |
| Overall Size (L×W×H) | 6.6×2.25×2.6m |
| Lifting/Lowering Speed | 0.05–0.09m/s |
| Working Pressure | 10MPa |
| Travel Speed | 10–20km/h |
| Wind Resistance | ≤5 |
| Diesel Engine | 1.1L |
| Battery | 80AH 6-QA-80 |
| Total Weight | 3500kg |
Standard Configurations
Descent & Movement Alarms, Tilt Alarm, Horn, Platform and Ground Emergency Stops, Emergency Power Unit, Two-Wheel Brake System, Smart Speed Control, Two-Wheel Drive, Equal Proportion Automatic Leveling System, Proportional Joystick Controls, Drive Enable, Hour Meter, 355° Turntable Non-continuous Rotation, Positive Traction Two Wheel Drive, Full Speed Motor, Telematics Pre-Interface, Active Defense System, Harsh Environment Kits, Thumb Rocker Steer, Manual Emergency Recovery
Optional Configurations
Solid Non Marking Tires, Air Tube Connection to Platform, Lithium Battery, Power Plus Generator, Aluminum Alloy and Insulated Working Platform, Cold-Resistant Fire-Resistant and Biodegradable Hydraulic Oil
Applicable Scenarios
Facility Maintenance · Tree Care · Over-Obstacle Access · Signage & Lighting · Property Management · Remote Outdoor Sites
