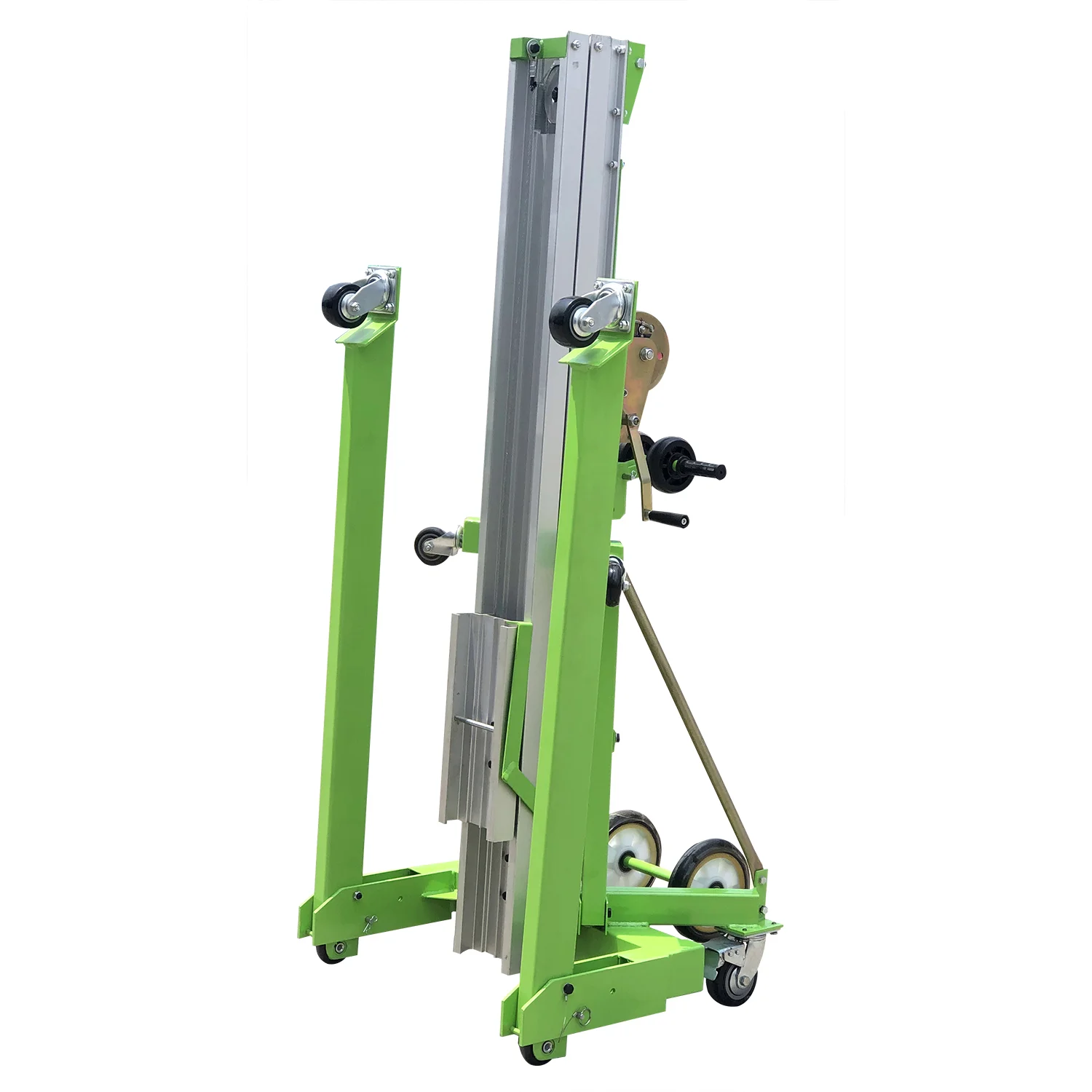

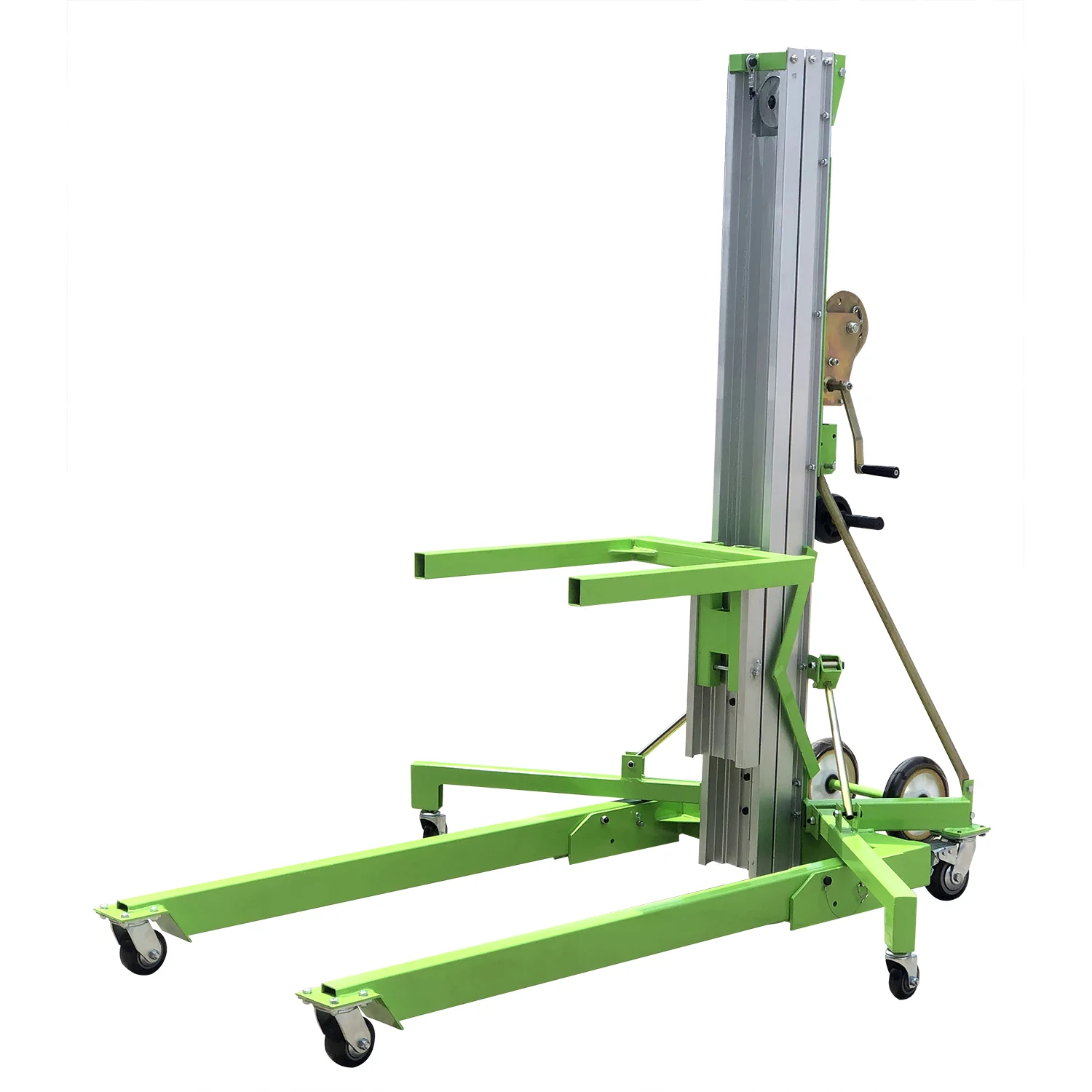

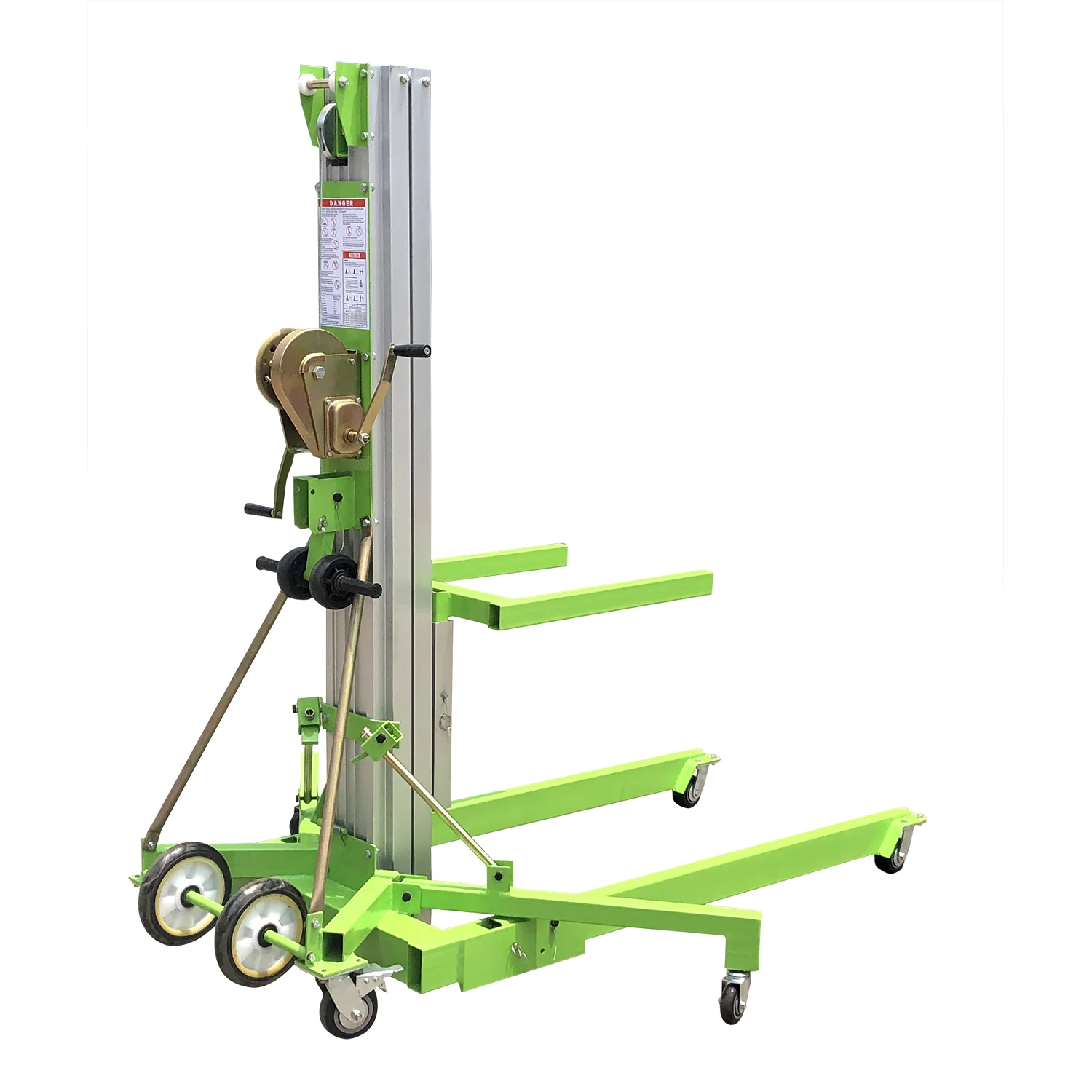

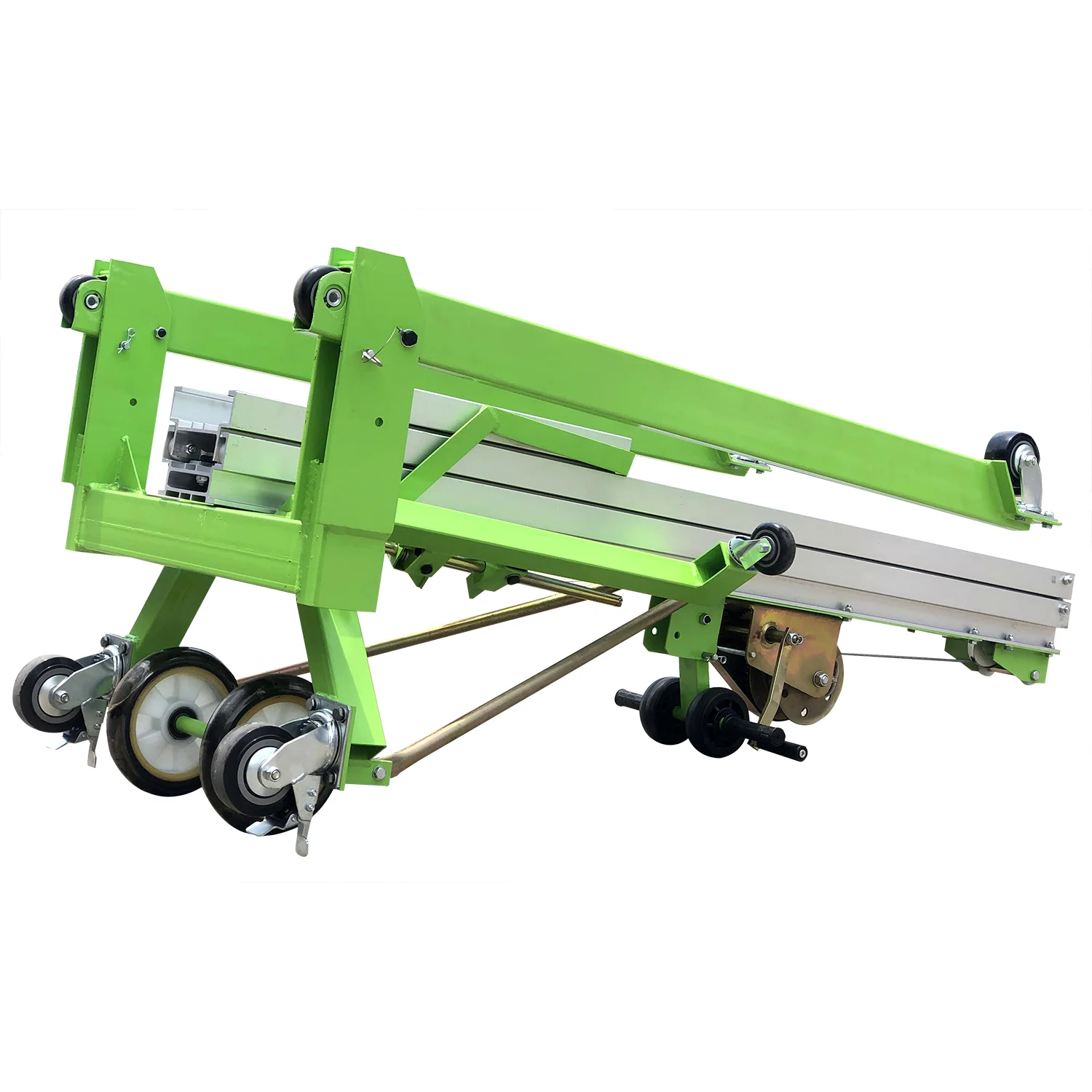

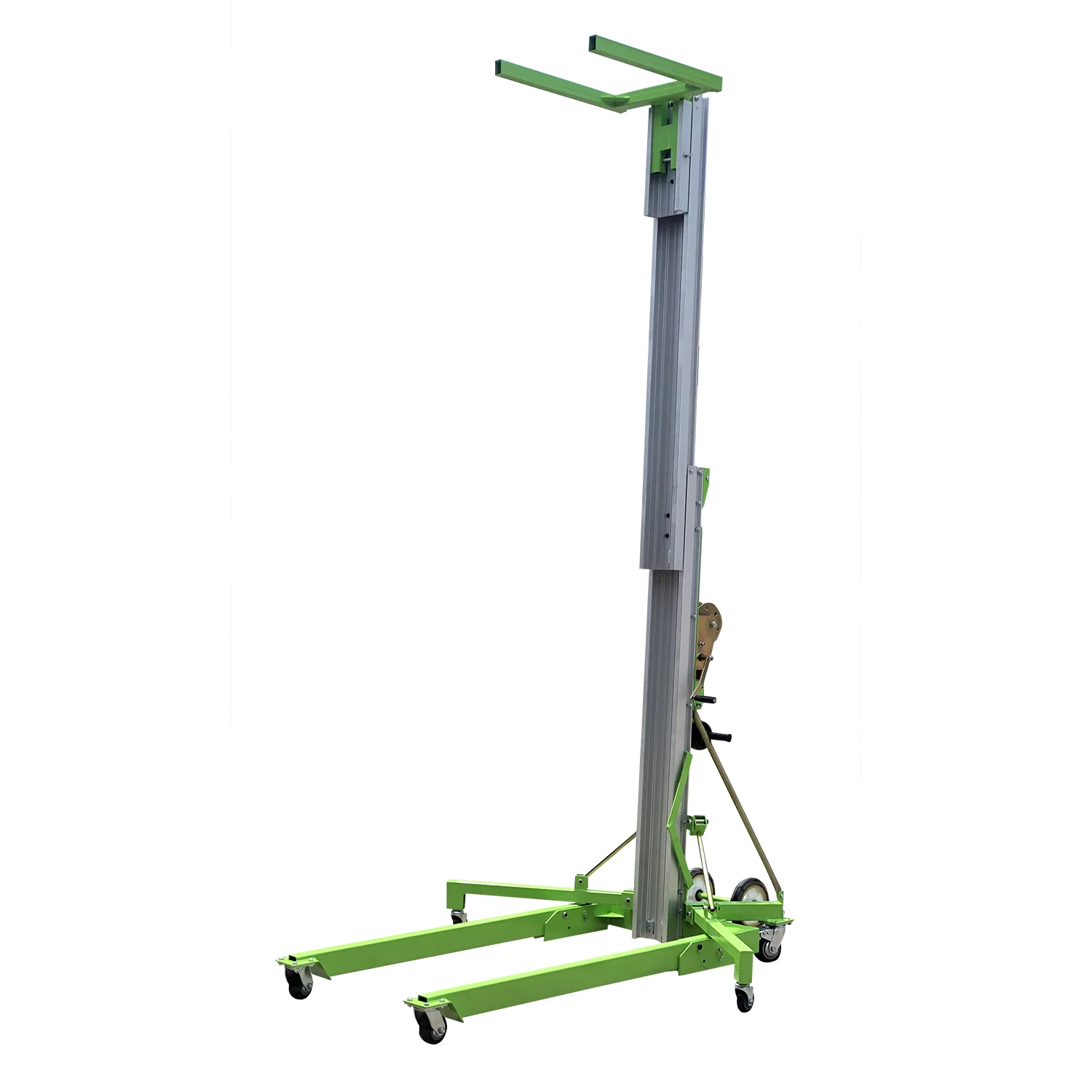

SLA Series Material Lift — SLA-10
The SLA-10 delivers 3.5 m forks up height with 350 kg capacity at 40 cm load center on a compact 2.1×0.8×0.8 m stowed footprint. Dual handle two-speed winch, smart latch system, mast brake, and non-marking casters — the entry-level model in the SLA Series material lift range for construction sites, warehouses, and HVAC installation.
Description
Product Description
SLA Series Material Lift — SLA-10
Overview
The Chenlift SLA-10 is an aluminum mast material lift designed for construction sites, warehouses, HVAC installation, and facility maintenance applications. With 3.5 m forks up height and 350 kg capacity at 40 cm load center on a compact 2.1×0.8×0.8 m stowed footprint, the SLA-10 is the entry-level and most compact model in the SLA Series. The dual handle two-speed shift-on-the-fly winch allows fast and precise load positioning, while the smart latch system and mast brake provide secure load holding at height. Stabilizers with non-marking swivel casters, non-marking transport and loading wheels, heavy-gauge aluminum extrusions, metal cable pulleys with sealed bearings, crane attachment point, and cable guard are all standard. Optional adjustable forks, fork extensions, boom, pipe cradle, load platform, and smart latch accessories are available to extend the functionality of the SLA-10 for specialist lifting tasks.
SLA-10 Key Specifications
| Specification | SLA-10 |
|---|---|
| Standard Forks Down | 2.97m |
| Standard Forks Up | 3.5m |
| Stowed Size (H×L×W) | 2.1×0.8×0.8m |
| Working Length | 1.51m |
| Ground Clearance Center | 0.05m |
| Minimum Load Height | 0.15m |
| 40cm Load Center | 350kg |
| 60cm Load Center | 350kg |
| 80cm Load Center | 250kg |
| 100cm Load Center | 150kg |
| Weight | 120kg |
Standard Configurations
- Stabilizers with Non-marking Swivel Casters
- Non-marking Transport / Loading Wheels
- Dual Handle, Two-speed Shift-on-the-fly Winch
- Metal Cable Pulleys with Sealed Bearings
- Heavy-gauge Aluminum Extrusions
- Heavy Duty Non-marking Casters
- Crane Attachment Point
- Cable Guard
- Smart Latch System
- Mast Brake
Optional Configurations
- Adjustable Forks
- Fork Extensions
- Boom
- Pipe Cradle
- Load Platform
- Smart Latch
Applicable Scenarios
Construction Sites · Warehouse & Logistics · HVAC Installation · Electrical & Plumbing · Facility Maintenance · Retail & Commercial
