RT Series Self-Propelled Rough Terrain Scissor Lift — MRT800 Diesel
The MRT800 Diesel delivers 10 m working height with 567 kg lifting capacity on a 2.5×1.6×1.15 m platform. Diesel 4WD with Kubota/Yanmar engine, 35% gradeability, 0.17 m ground clearance, and proportional controls — the entry-level diesel model in the MRT Series for remote outdoor construction sites without AC power access.
Description
Product Description
RT Series Self-Propelled Rough Terrain Scissor Lift — MRT800 Diesel
Overview

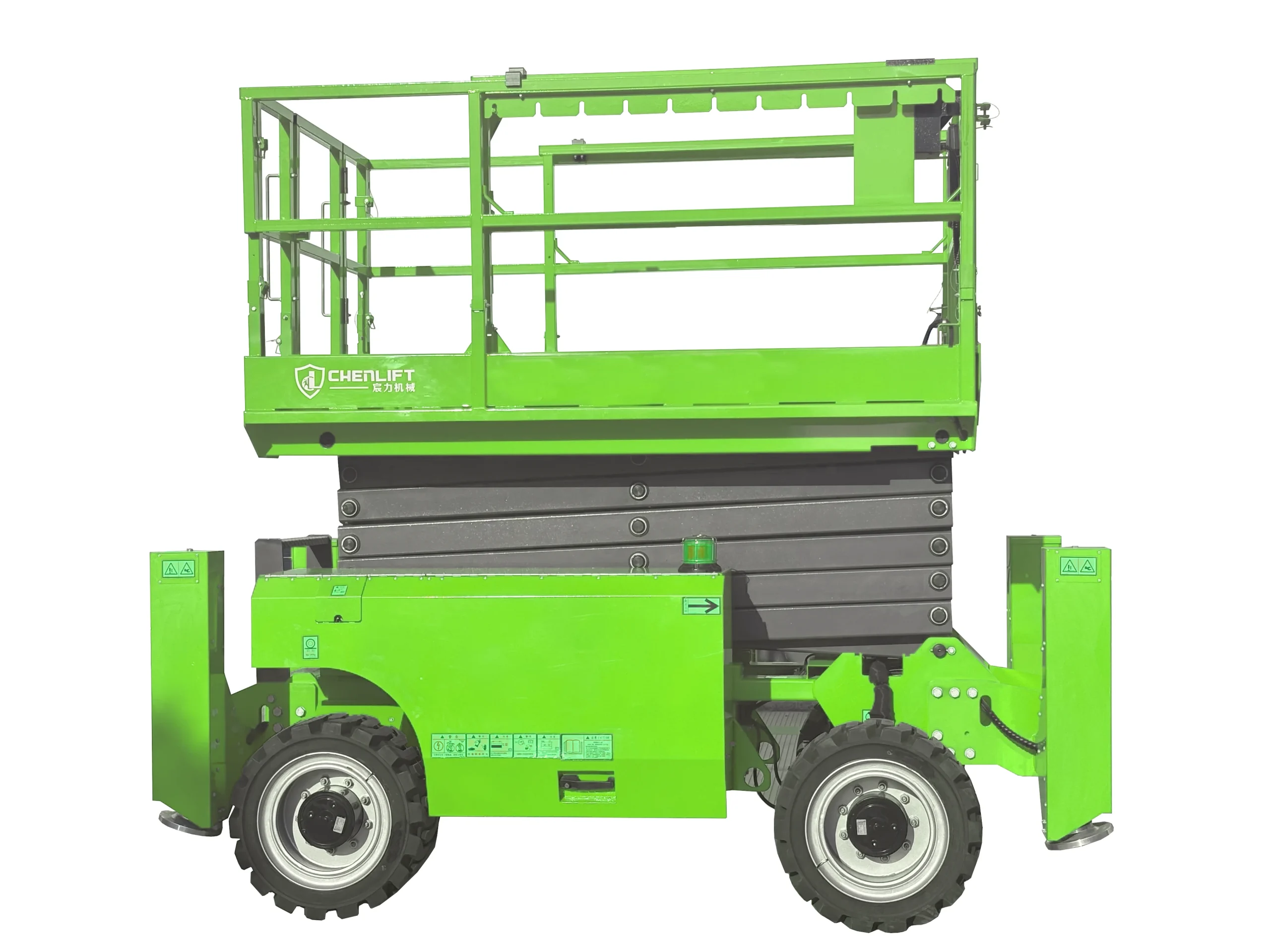

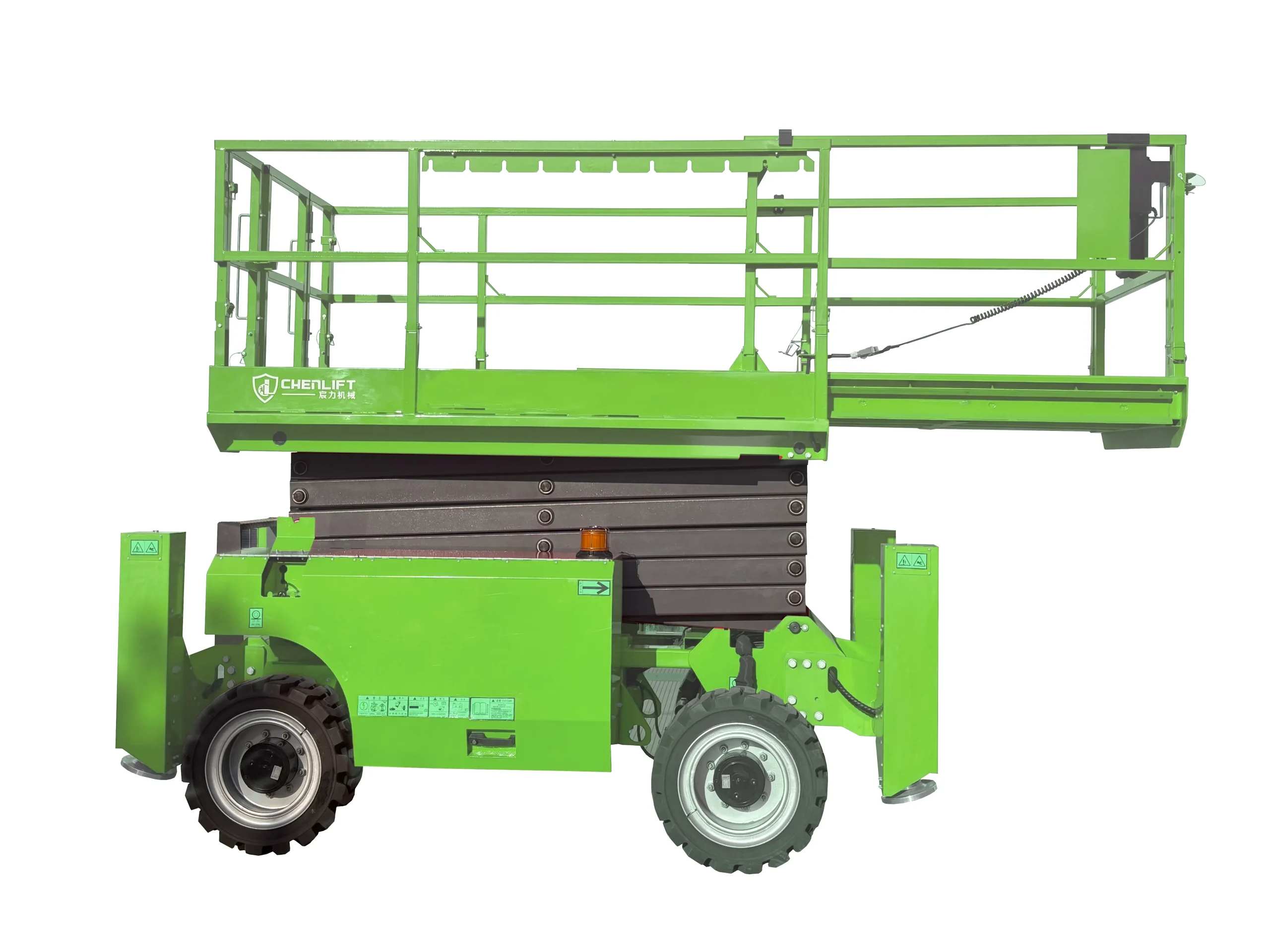

The Chenlift MRT800 Diesel is a self-propelled rough terrain scissor lift powered by a Kubota or Yanmar diesel engine, delivering 10 m working height with 567 kg lifting capacity on a 2.5×1.6×1.15 m platform. With 4-wheel drive, 35% gradeability, 0.17 m ground clearance, and a 57L fuel tank, the MRT800 Diesel is designed for remote outdoor construction sites and off-grid locations where AC power is unavailable. Standard features include foldable guardrails, diagnosis system, AC power to platform, tilt level sensor with audible alarm, proportional controls, solid rough tires, safety brackets, and dual flashing beacon.
MRT800 Diesel Key Specifications
| Specification | MRT800 Diesel |
|---|---|
| Max Working Height | 10m |
| Max Platform Height | 8m |
| Max Outreach | 1.5m |
| Length Stowed | 2.5m |
| Length-Platform Extended | 1.5m |
| Length Stowed (with Outriggers) | 3.18m |
| Width Stowed | 1.76m |
| Height Stowed (guardrails unfolded) | 2.4m |
| Height Stowed (guardrails folded) | 1.7m |
| Wheelbase | 1.89m |
| Ground Clearance | 0.17m |
| Platform Size (L×W×H) | 2.5×1.6×1.15m |
| Skirting Board Height | 0.15m |
| Max Load Number | 4 persons |
| Lifting Capacity | 567kg |
| Lifting Capacity (extended platform) | 136kg |
| Drive Speed (Stowed) | 4km/h |
| Drive Speed (Raised) | 0.8km/h |
| Rising Time | 40s |
| Lowering Time | 35s |
| Gradeability | 35% |
| Turning Radius (inside/outside) | 1.58m/3.89m |
| Tilt Sensor (Front to Back) | 3° |
| Tilt Sensor (Side to Side) | 2° |
| Tire Specification/Type | 675×280mm |
| Outrigger Level Ability (F/B) | 9° |
| Outrigger Level Ability (S/S) | 13° |
| Drive Mode | 4-wheel drive |
| Power Source | Kubota / Yanmar |
| Fuel Tank Capacity | 57L |
| Hydraulic Tank Capacity | 68L |
| Control Mode | Proportional Control |
| Weight (with Outriggers) | 4120kg |
Standard Configurations
- Foldable Guardrail
- Diagnosis System
- AC Power to Platform
- 4 Wheel Drive
- Tilt Level Sensor with Audible Alarm
- Lowering Alarm
- Horn
- Hour Meter
- Emergency Pump
- Proportional Controls
- Solid Rough Tire
- Safety Brackets
- Dual Flashing Beacon
Optional Configurations
- Automatic Leveling Hydraulic Outriggers
- Air Line to Platform
- Motor Cold Starting Components
- Overload Sensor
- Moveable Alarm Components
- Non-marking Rough Tire
Applicable Scenarios
Construction Sites · Infrastructure Projects · Remote Outdoor Sites · Industrial Facilities · Uneven Terrain Access · Off-grid Operations
