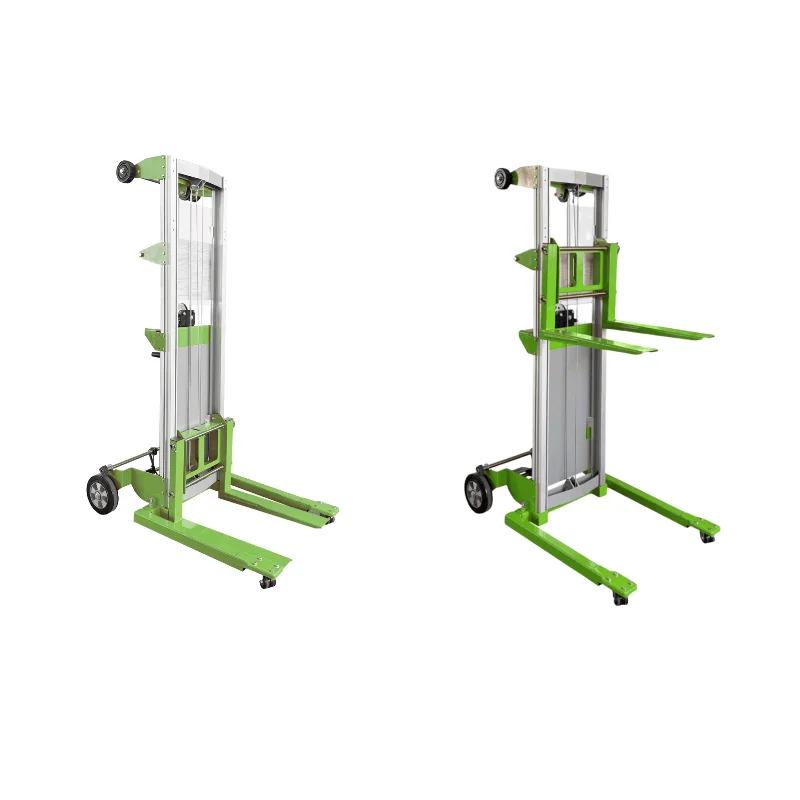

ML Series Handle Winch Material Lifter — ML-STD227
The ML-STD227 is the highest-capacity model in the ML standard configuration, delivering 227 kg capacity with 1.8 m maximum lift height (forks up). Aluminum mast, steel base and forks, manual winch operation, Ø200mm non-marking rear wheels — the heavy-capacity standard material lifter for warehouse and workshop use.
Description
Overview
ML Series Handle Winch Material Lifter — ML-STD227
The Chenlift ML-STD227 is the highest-capacity model in the ML Series standard configuration, delivering 227 kg platform capacity with a maximum lift height of 1.8 m (forks up) and 1.2 m (forks down). The standard configuration uses a compact wheeled base with Ø200mm non-marking rear wheels and Ø50mm front swivel casters for easy maneuvering in warehouses and workshops. Built with an aluminum mast and steel base and forks, the ML-STD227 is operated entirely by hand winch with no power supply required. Upper loading wheels facilitate loading and unloading onto vehicles. At just 65 kg machine weight with a 30.5 cm stowed length, it is highly portable while handling the heaviest loads in the standard range — suited for HVAC and ductwork handling, stock and shelving work, and general material positioning.
ML-STD227 Key Specifications
| Specification | ML-STD227 |
|---|---|
| Platform Capacity | 227kg |
| Max Lifting Height (Forks Down) | 1.2m |
| Max Lifting Height (Forks Up) | 1.8m |
| Min Lifting Height (Shovel Down) | 9cm |
| Height (Stowed) | 1.7m |
| Length (Working) | 88cm |
| Length (Stowed) | 30.5cm |
| Outer Width | 63cm |
| Inner Width | 34cm |
| Weight | 65kg |
Standard Configurations
Made of Aluminum, Base and Forks Made of Steel, Manual Mechanical Lifting Operation, Upper Wheels Facilitate Loading and Unloading onto Vehicles, Non-marking Wheels, Swivel Casters with Brake, Fixed Wheels
Applicable Scenarios
HVAC & Ductwork · Warehouse & Stock Work · Shelving Installation · Workshop Material Handling · Equipment Positioning · Retail & Storage
