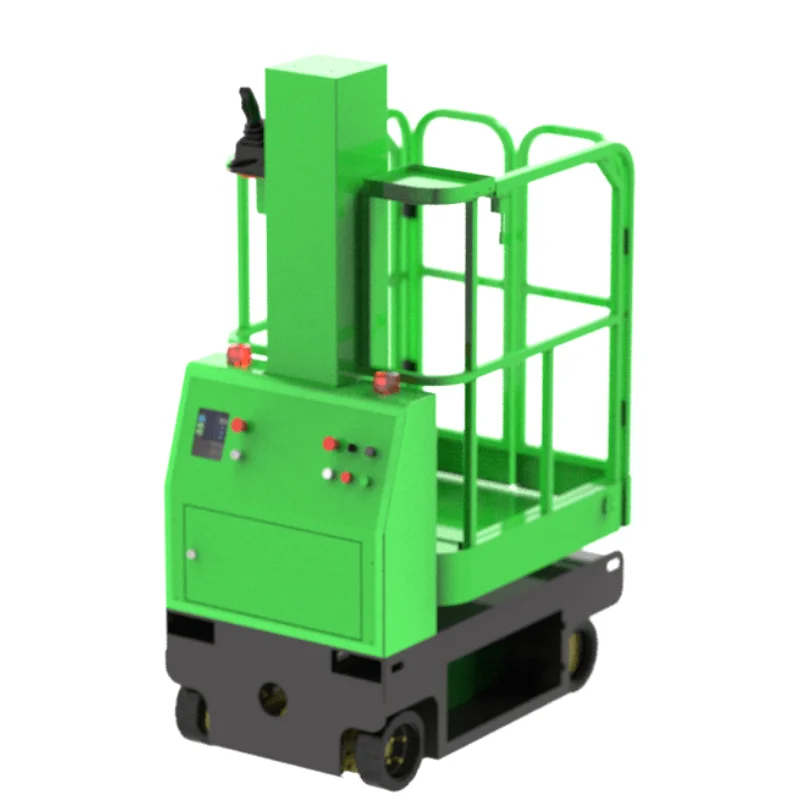

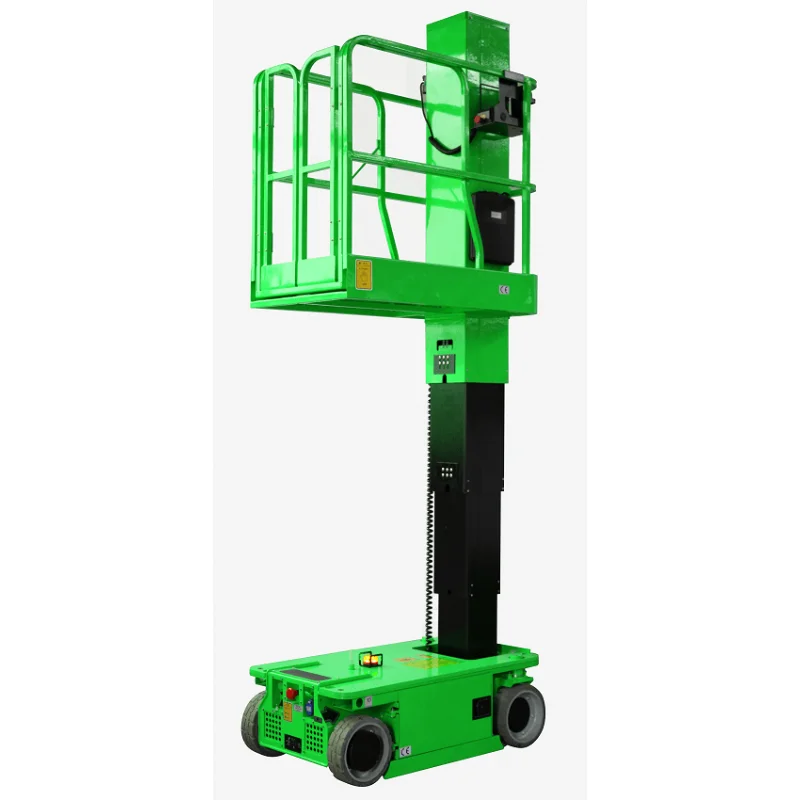

MH Series Electro-Hydraulic Vertical Mast Boom Lift — MH600
The MH600 is the highest-reaching model in the MH Series, delivering 8 m working height with 159 kg loading capacity on a 1.3×0.7 m platform. Electric steering and electric drive with zero inside turning radius, drivable at full height, proportional control, and pothole protection — the flagship MH Series model for demanding indoor high-reach access applications.
Description
Product Description
MH Series Electro-Hydraulic Vertical Mast Boom Lift — MH600
Overview
The Chenlift MH600 is the flagship model in the MH Series electro-hydraulic vertical mast boom lift range, delivering 8 m working height with 159 kg loading capacity on a 1.3×0.7 m platform. Stepping up to 0.82 m overall width and 1060 kg machine weight for the additional structural requirements at 8 m, the MH600 maintains the same zero inside turning radius, electric steering and electric drive, drivable at full height at 1.1 km/h, and proportional control as the lower models. Powered by 2×12V/100Ah battery with 2×24VDC/0.5KW drive motors and 24VDC/1.3KW lifting motor, charged by 24V/15A charger. Fault diagnose system, pothole protection, break release, forklift slot, and emergency stop button on both platform and ground are all standard. The MH600 is engineered for the most demanding indoor high-reach maintenance, construction, and facility management applications where zero-turn maneuverability at 8 m working height is required.
MH600 Key Specifications
| Specification | MH600 |
|---|---|
| Max Working Height | 8.0m |
| Max Platform Height | 6.0m |
| Loading Capacity | 159kg |
| Ext. Platform Capacity | 114kg |
| Overall Length | 1.36m |
| Overall Width | 0.82m |
| Overall Height | 1.98m |
| Platform Dimension | 1.3×0.7m |
| Ext. Platform Length | 0.51m |
| Wheel Base | 1.04m |
| Inner Turning Radius | 0m |
| Outer Turning Radius | 1.4m |
| Travel Speed (Stowed) | 4km/h |
| Travel Speed (Raised) | 1.1km/h |
| Up/Down Speed | 52/53sec |
| Gradeability | 25% |
| Drive Tyres | Φ305×100mm |
| Drive Motors | 2×24VDC/0.5KW |
| Lifting Motor | 24VDC/1.3KW |
| Battery | 2×12V/100Ah |
| Charger | 24V/15A |
| Weight | 1060kg |
Standard Configurations
- Fault Diagnose System
- Forklift Slot
- Drivable at Full Height
- Proportional Control
- Electric Steering, Electric Drive
- Pothole Protection
- Break Release
- Emergency Stop Button both on Platform and Ground
Optional Configurations
- AC Power to Platform
- Platform Working Light
- Extension Platform
- Platform Positioning Laser Lights
- Overloading Sensor
- Saloon-door Style Entry Gates / Top Open Door
Applicable Scenarios
Warehouse & Logistics · Industrial Maintenance · Indoor Construction · Facility Management · Airport & Station · Narrow Aisle Access
