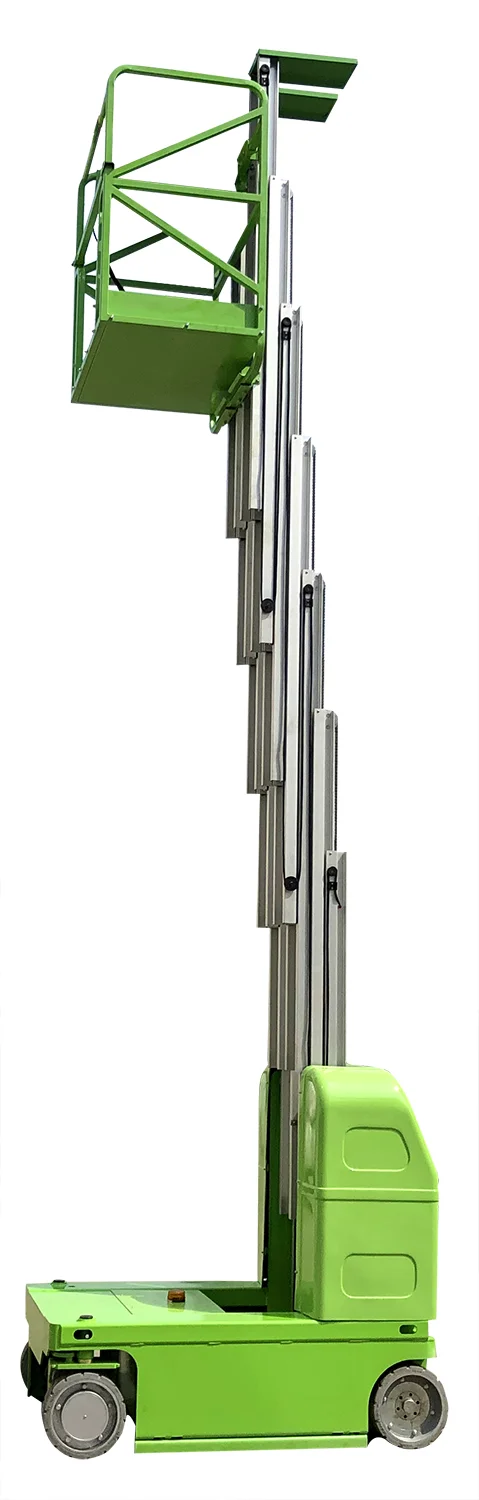

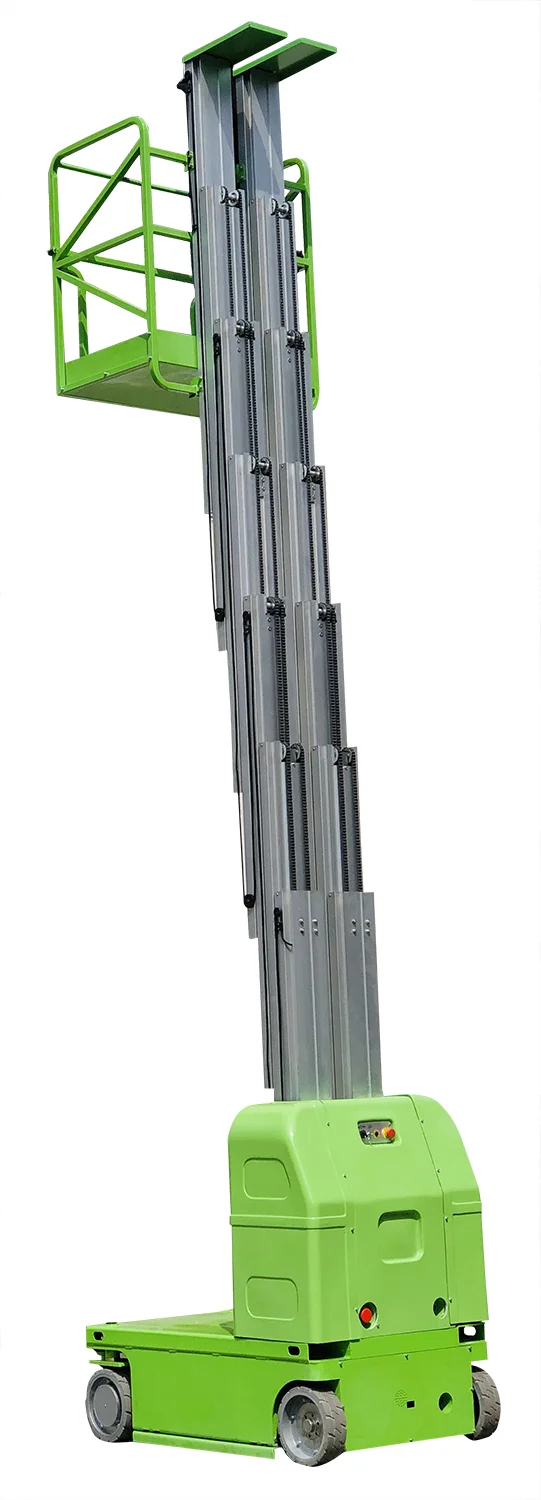

MG Series Self-Propelled Vertical Lift Hydraulic Turning Wheel — MG900-2S
The MG900-2S is the tallest model in the MG Series, reaching 11 m working height with 150 kg lift capacity. Two-person vertical mast lift with hydraulic turning wheel and drivable at full height — the go-to choice for high-reach industrial and outdoor maintenance tasks.
Description
Product Description
MG Series Self-Propelled Vertical Lift Hydraulic Turning Wheel — MG900-2S
Overview The Chenlift MG900-2S is the highest-reaching model in the MG Series, delivering 11 m working height with 150 kg lift capacity for two persons. Built on the same hydraulic turning wheel platform as the rest of the series, it offers drivability at full height, automatic braking, and a 3° maximum working slope — making it suitable for demanding industrial, airport, and high-reach outdoor maintenance applications.
Key Specifications
| Specification | MG900-2S |
|---|---|
| Lift capacity | 150kg |
| Working height max ❶ | 11m |
| Platform height max ❷ | 9m |
| Stowed length ❸ | 1.5m |
| Stowed width ❹ | 1.0m |
| Stowed height ❺ | 2.08m |
| Platform size | 1.00×0.70m |
| Ground clearance | 0.05m |
| Wheelbase | 1.28m |
| Gradeability | 25% |
| Maximum Working Slope | 3° |
| Driving Wheel | Φ305×100m |
| Front tire | Φ305×100m |
| Driving motor | 2×24V/0.5kw |
| Lifting motor | 24V/2kw |
| Power source | 2×12V/115Ah |
| Charger | 24V/12A |
| Weight | 1345kg |
Standard Configurations
- Proportional Control
- Drivable at Full Height
- Fault Diagnose System
- Automatic Brake System
- Brake Release
- Auxiliary Lowering System
- Anti-Dust Cover on Mast
- Emergency Stop Button both on Platform and Ground
- Forklift Slots
Optional Configurations
- AC Power to Platform
- Platform Working Light
- Extension Platform
- Platform Positioning Laser Lights
- Overloading Sensor
- Saloon-door style entry gates / Top Open Door
Applicable Scenarios Warehouse & Logistics · Industrial Maintenance · Construction Sites · Facility Management · Airport & Station · Outdoor Operations
