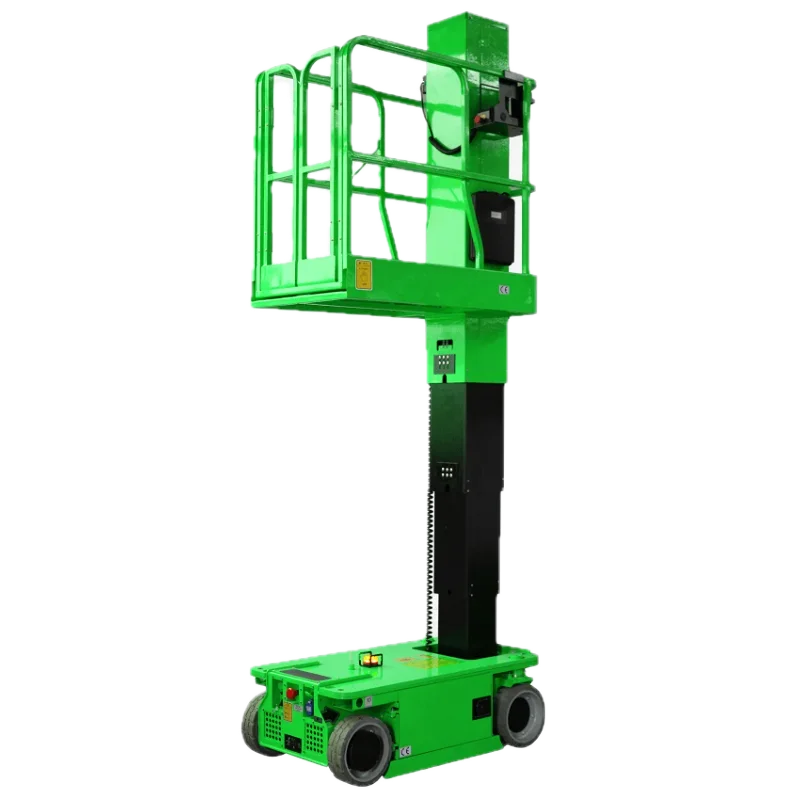

MD Series Oil-Free Self-Propelled Vertical Lift — MD570
The MD570 reaches 7.7 m working height with 200 kg platform capacity and zero hydraulic oil. AC motor driving, electric lifting push rod, swivel wheel with 0 turning radius — the highest-reaching model in the MD Series for demanding indoor and sensitive environment applications.
Description
Product Description
MD Series Oil-Free Self-Propelled Vertical Lift — MD570
Overview The Chenlift MD570 is the highest-reaching model in the MD Series oil-free vertical lift range, delivering 7.7 m working height with 200 kg platform capacity and zero hydraulic oil. Featuring AC motor driving, electric lifting push rod, and a swivel wheel with 0 turning radius, it is engineered for precision access in sensitive indoor environments where emissions, contamination, and floor damage are not acceptable.
Key Specifications
| Specification | MD570 |
|---|---|
| Platform Capacity | 200kg |
| Extension Platform Capacity | 113kg |
| Max Working Height | 7.7m |
| Max Platform Height ❶ | 5.7m |
| Platform Length ❷ | 1.5m |
| Platform Width ❸ | 0.78m |
| Extension Length | 0.5m |
| Overall Height (Unfold Guardrail) ❹ | 1.99m |
| Overall Length (With Ladder) ❺ | 1.62m |
| Overall Width ❻ | 0.8m |
| Wheelbase ❼ | 1.28m |
| Ground Clearance (Raised) ❽ | 0.08m |
| Ground Clearance (Stowed) ❾ | 0.02m |
| Travel Speed (Stowed) | 3.5km/h |
| Travel Speed (Raised) | 0.6km/h |
| Turning Radius | 0.6m/1.8m |
| Maximum Working Slope | 1.5°/3° |
| Wheel | Φ305×100mm |
| Power Source | 2×12V/100AH |
| Charger | 100-240VAC/15A |
| Weight | 1105kg |
Standard Configurations
- Proportional Joystick Control
- Forklift Slot
- Drivable at Full Height
- Emergency Stop Button both on Platform and Ground
- Electric Lifting Push Rod
- AC Motor Driving
- Fault Diagnose System
- Dual Wheel Automatic Braking
- Swivel Wheel with 0 Turning Radius
- Manual Emergency Descent System
- Pothole Protection · Break Release
- Zero Emissions
Optional Configurations
- AC Power to Platform
- Platform Working Light
- Extension Platform
- Platform Positioning Laser Lights
- Overloading Sensor
- Wireless Tracking
- Saloon-door style entry gates / Top Open Door
- Electric picking tray with foldable side panels and front guardrails
Applicable Scenarios Metro & Rail Tunnels · Station Platforms · Rolling Stock Depots · Cleanroom / Pharma · Food Production · Warehouse & Logistics · Indoor Maintenance
